6 Maintenance
42 Installation and maintenance instructions Logano GE315 • Issue 02/2006
We reserve the right to make any changes due to technical modifications.
z Clean the hot gas flues (Fig. 54, Item 1 & 3) with
cleaning brushes 1 and 2 (Fig.
53) from the front to
the back.
z Clean the combustion chamber with cleaning
brush
3.
z Clean the remaining combustion chamber (Fig. 54,
Item
2) with cleaning brush 2.
z Clean the lower hot gas flues from the front with
cleaning brush 2 (Fig.
54, Item 1).
z Remove all loose combustion residues from the
combustion chamber, the hot gas flues and the flue
gas collector.
z Check all sealing cord in cleaning openings and on
the burner door. Replace all damaged or hardened
seals.
z Clean the hot gas baffle plates with the cleaning
brushes.
z Insert the hot gas baffles into the hot gas flues
(see
chapter "2.6.4 Insert the hot gas baffle plates",
page
20).
z Close the cleaning cover and the burner door.
Tighten all screws equally.
z Pivot the thermal insulation on the rear section and
draw together below the flue gas coupling using
a
spring hook (Fig. 55, Item 1).
z Hook the lower boiler wall sections on the left and the
right into the slots of the edge of the upper rear boiler
wall and the side wall and secure the connecting
plate below the flue gas coupling on the lower boiler
back wall section.
NOTE!
Your Buderus dealer will supply you with
suitable sealing cord.

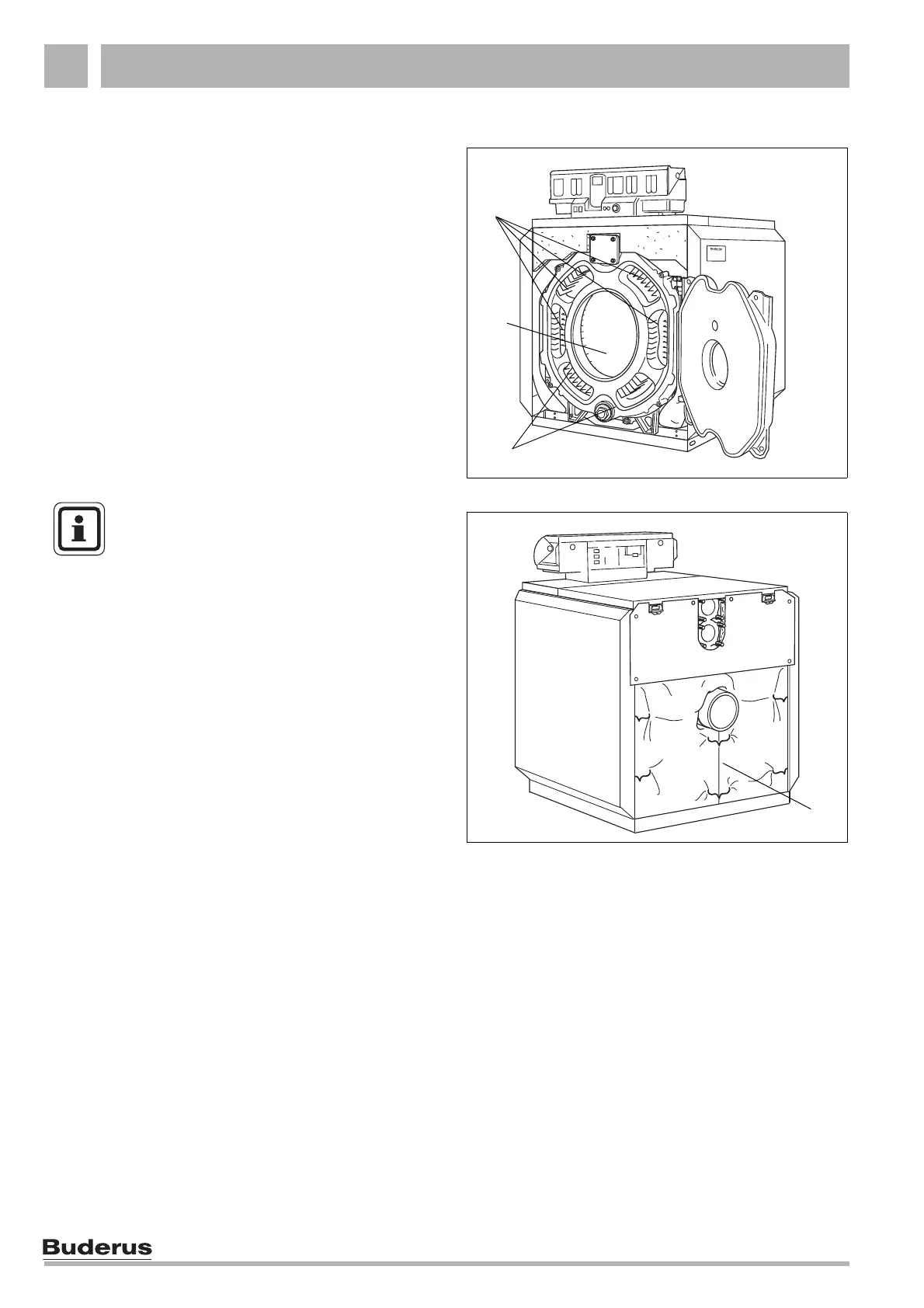

Fig. 57 Cleaning the hot gas flues
Fig. 58 Draw the thermal insulation on the rear section
together
1
2
3
1
