18
Installation
2. Install linear Remote Sensor
→ Push the Remote Sensor onto the actuator. The puck must be
aligned in such a way that it is inserted into the guide rail of the
Remote Sensor.
Guide rail
Puck

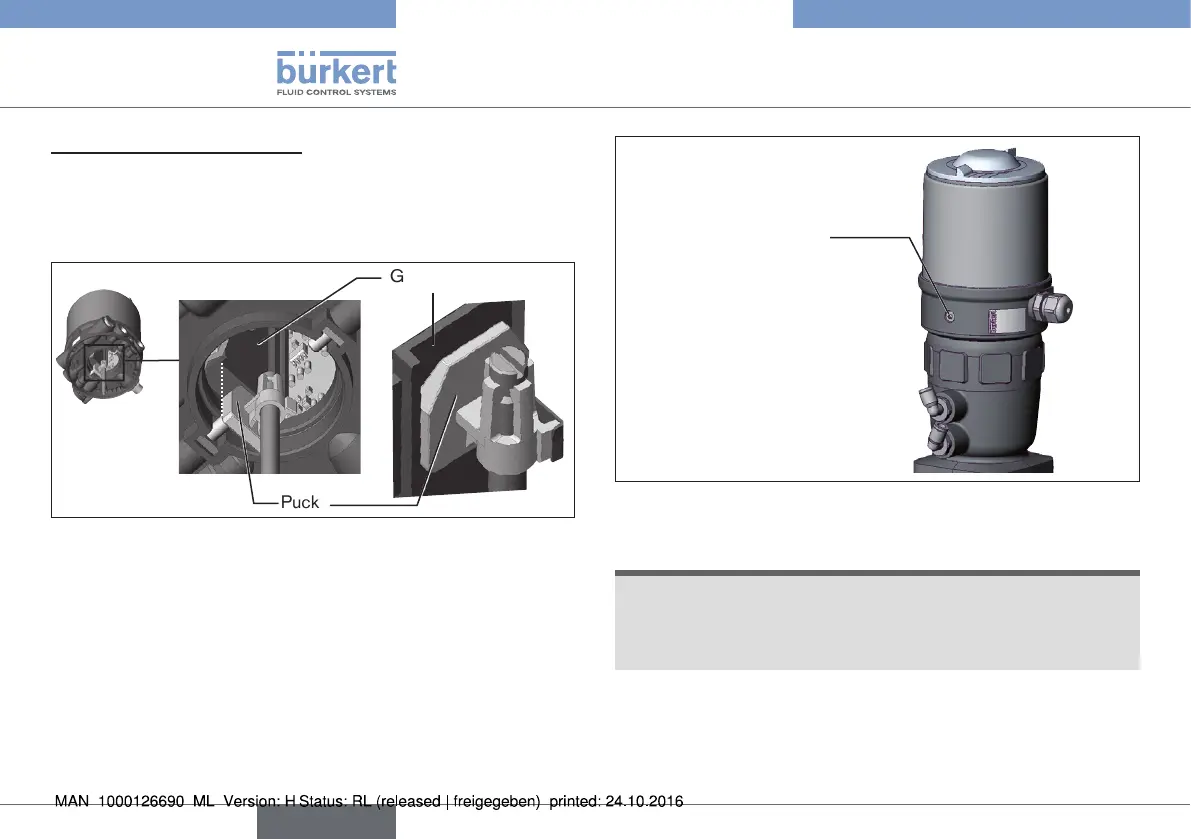

Fig. 15: Aligning the puck
→ Press the Remote Sensor all the way down as far as the actuator
and turn it into the required position.
Fastening
screws (2x)
max. 1.5 Nm
Fig. 16: Installing the linear Remote Sensor
NOTE!
Too high torque when screwing in the fastening screw does
not ensure degree of protection IP65 / IP67.
▶ The fastening screws may be tightened to a maximum torque of
1.5 Nm only.
→ Attach the Remote Sensor to the actuator using the two side fas-
tening screws. In doing so, tighten the fastening screws hand-tight
only (maximum torque: 1.5 Nm).
english
Type 8798
