27
Installation
Legend:
No. Name No. Name
1 Mounting bracket 9 Hexagon bolt
5 Conical roller 10 Circlip
6 Lever 11 Washer

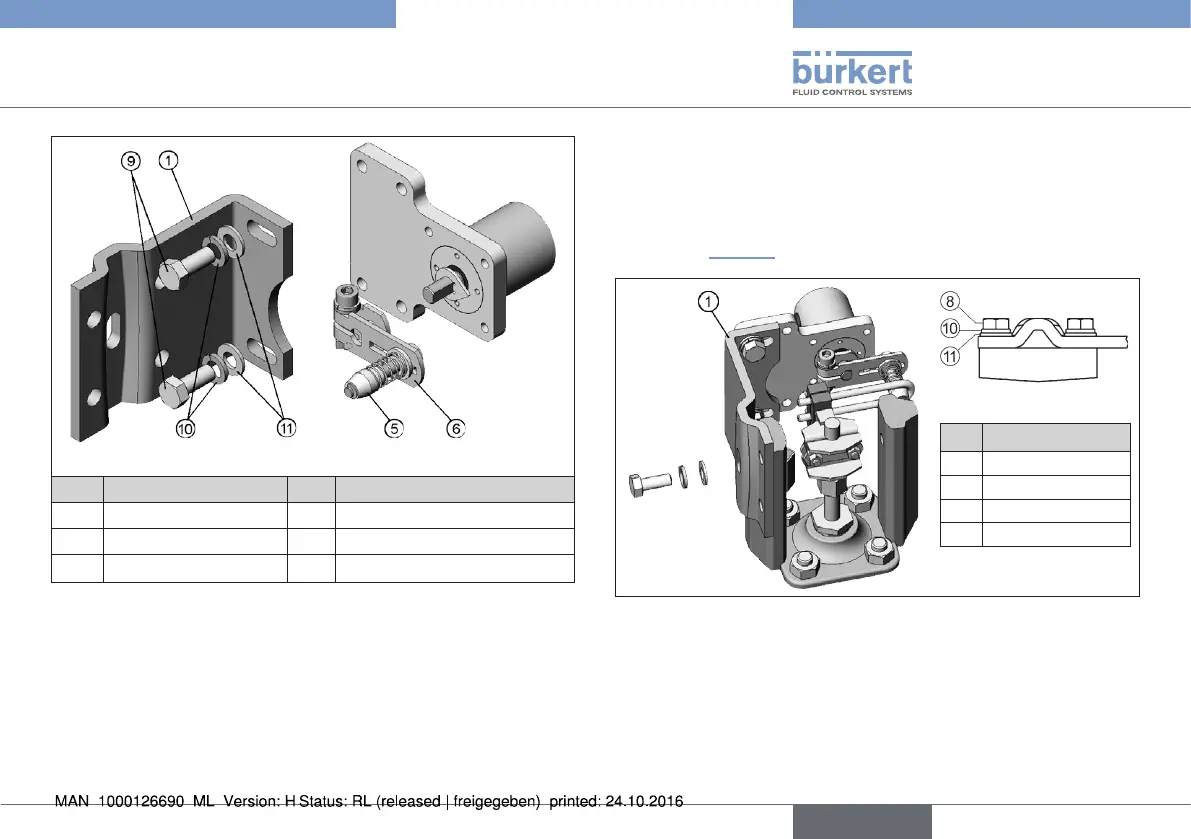

Fig. 28: Attachment to a proportional valve with push drives
according to NAMUR
Attaching the rotating Remote Sensor with mounting bracket
for push actuators with cast frame:
→ Attach mounting bracket ① to cast frame with one or several
hexagon bolts ⑧, circlips ⑩ and washers ⑪
(refer to “Fig. 29” ).
Legend:
No. Name
1 Mounting bracket
8 Hexagon bolt
10 Circlip
11 Washer
Fig. 29: Fit mounting bracket to cast frame
english
Type 8798
