Description

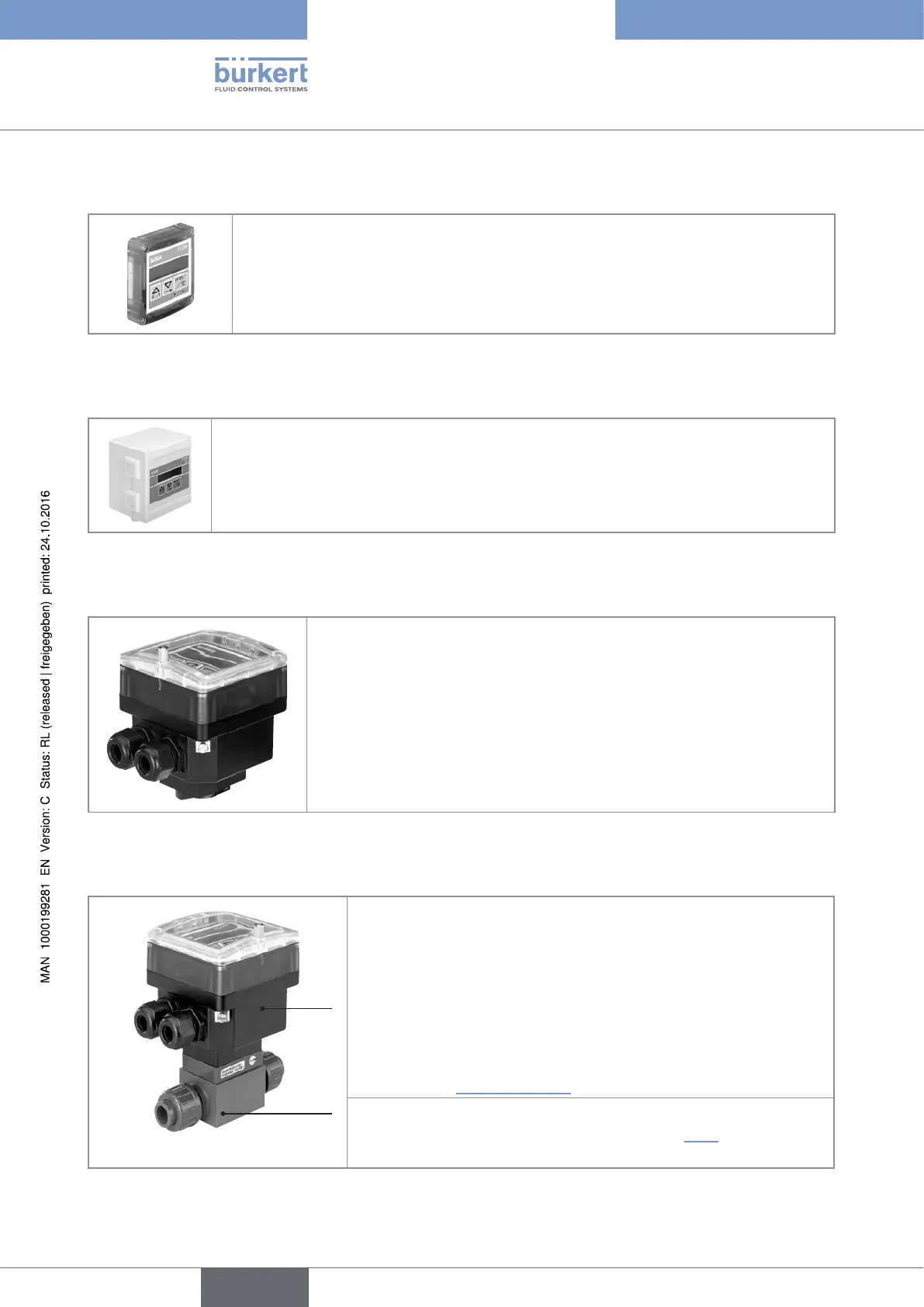

5.2.2 Construction of the 8025 Batch in panel version
The 8025 Batch in panel version is a dosing controller in an open housing with display.
Fig. 2 : Construction of the 8025 Batch in panel version
5.2.3 Construction of the 8025 Batch in wall-mounted version
The 8025 Batch in wall-mounted version is a dosing controller with display and 5 cable glands.
Fig. 3 : Construction of the 8025 Batch in wall-mounted version
5.2.4 Construction of the SE35 Batch
The SE35 Batch is a dosing controller with display and 2 cable glands
Fig. 4 : Construction of the SE35 Batch
5.2.5 Construction of the 8035 Batch
A
B
A: S030 sensor-fitting including the paddle-wheel flow sensor.
Set in rotation by the flow, the 4 permanent magnets integrated in
the vanes of the paddle generate pulses, the frequency of which is
proportional to the flow velocity of the fluid. A conversion coefficient
specific to each pipe (material and diameter) is necessary to establish
the flow rate value associated with the measurement.
The conversion coefficient (K-factor) expressed in pulses per litre is
given in the Operating Instructions for the S030 sensor-fitting used
available under www.burkert.com
B : Dosing controller type SE35 Batch (see chap. 5.2.4).
Fig. 5 : Construction of the 8035 Batch
