Technical data
10
9
8
7
6
5
4
3
2
1
0
-15 0 +20 +40 +60
PVDF
PVDF (PN10)
PVC (PN10)
PP (PN10)
PVC + PP
11
P (bar)
T (°C)
+80
15
14
13
12
16
+100
A
métal
A: Operating range

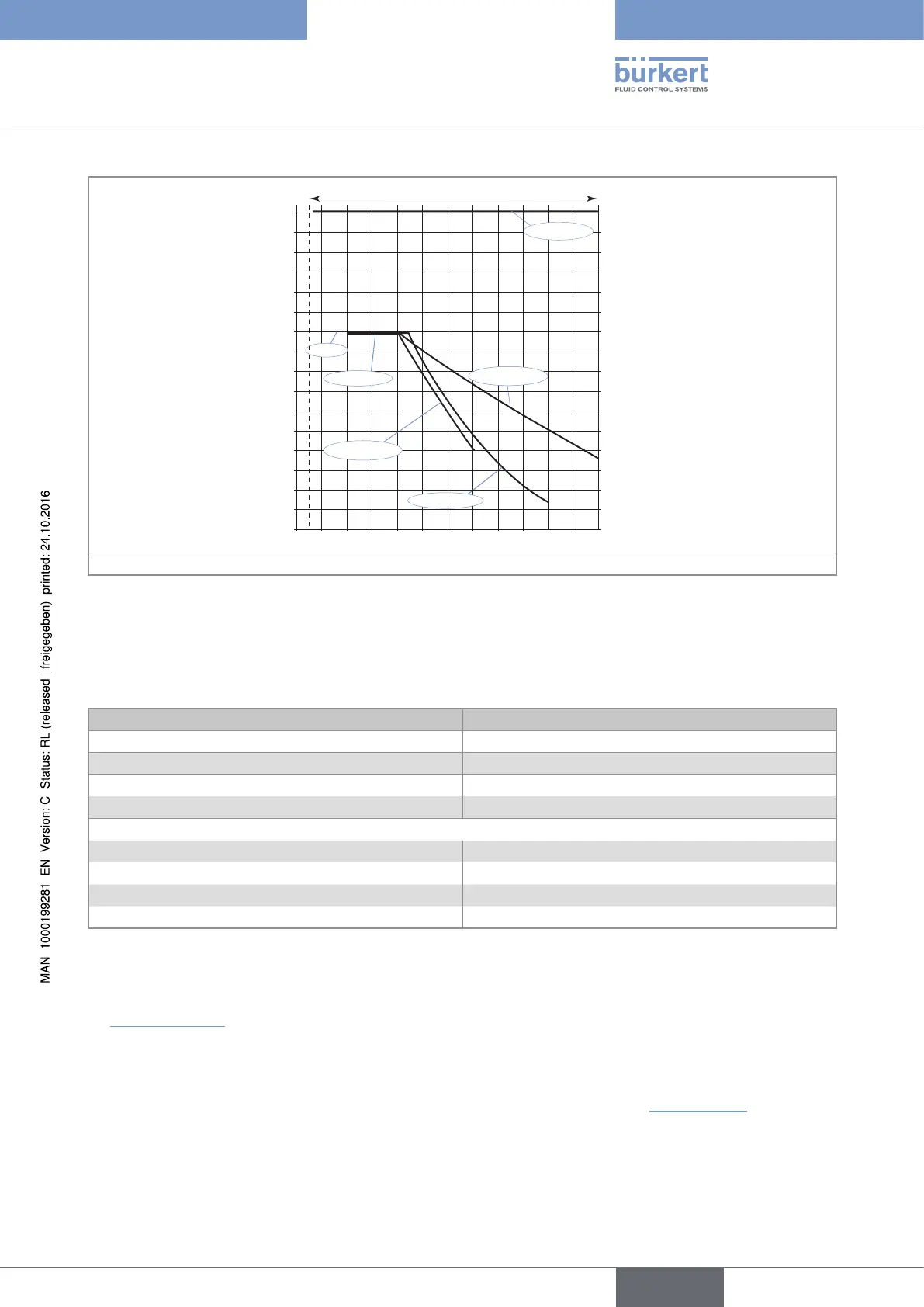

Fig. 9 : Fluid temperature/pressure dependency curves for a dosing controller type 8035 Batch, depending on the material
the S030 sensor-fitting is made of
6.5.4 Material data of a 8035 Batch
Part Material
Housing, cover, lid, nut PC
Frontfoil / Screws Polyester / Stainless steel
Cable glands PA
Identification label Polyester
Wetted parts
• Sensor holder / Paddle-wheel • PVDF
• Axis and bearings of the paddle-wheel • Ceramics
• Seal • FKM (optional EPDM)
• Sensor-fitting S030 • Refer to the Operating Instructions of the sensor-fitting
6.5.5 Dimensions of a 8035 Batch
→ Please refer to the technical data sheets regarding the dosing controller type 8035 Batch, available at:
www.burkert.com
6.5.6 Electrical data of a 8035 Batch
→ Please refer to the electrical data of the dosing controller type SE35 Batch, chap. 6.4.5, page 26.
