28

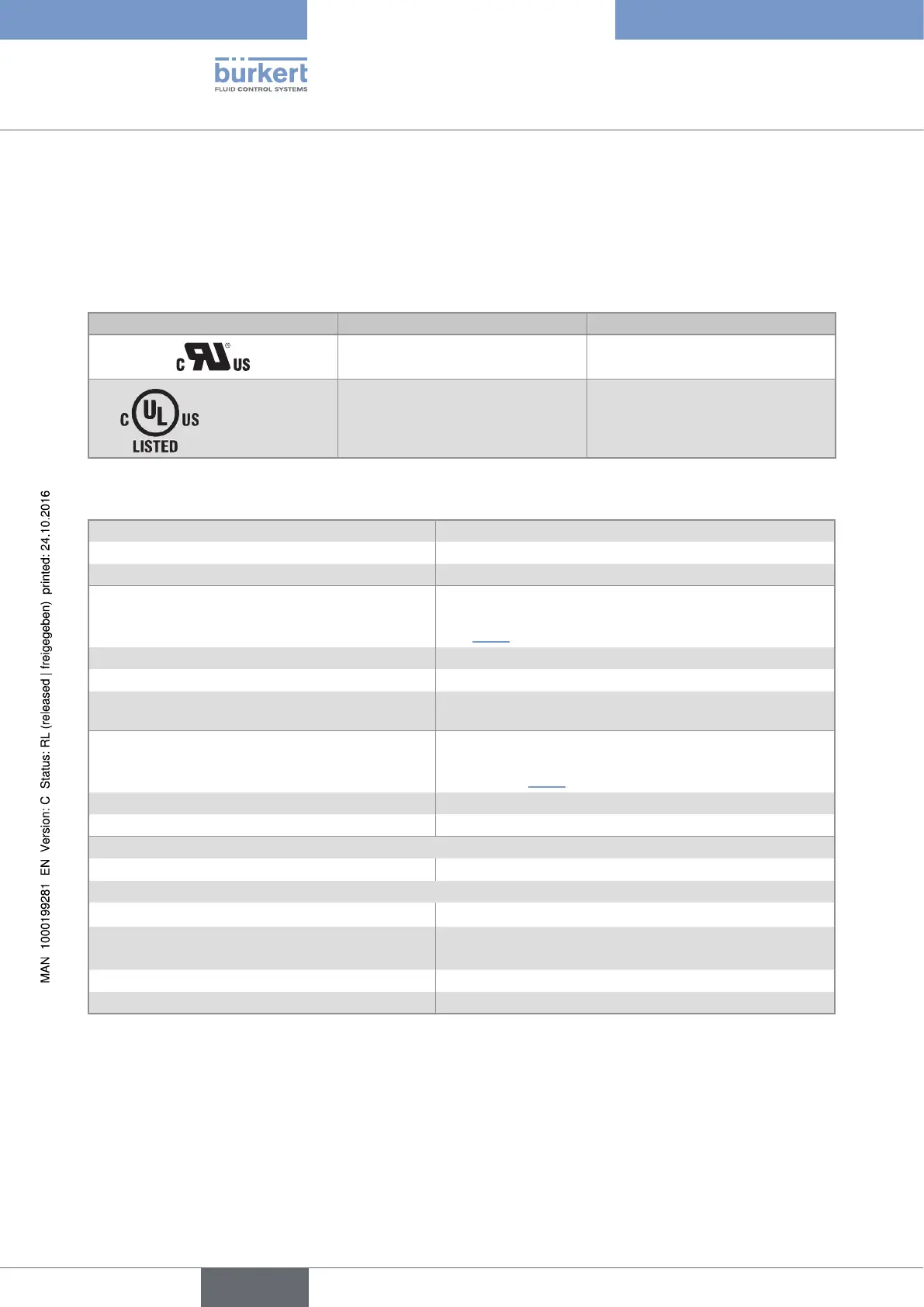

Technical data
UL-Certification
Finished products with variable key PU01 or PU02 are UL-certified products and comply also with the following
standards:
• UL 61010-1
• CAN/CSA-C22.2 n°61010-1
Identification on the device Certification Variable key
UL-recognized PU01
Measuring
Equipment
EXXXXXX
®
UL-listed PU02
6.5.3 Fluid data of a 8035 Batch
Type of fluid
neutral or slightly aggressive liquids
Fluid viscosity
max. 300 cSt
Rate of solid particles
max. 1%
Fluid temperature
The fluid temperature may be restricted by the fluid pressure
and the material the S030 sensor-fitting used is made of
(see Fig. 9)
• with S030 sensor-fitting in PVC • 0...+50°C
• with S030 sensor-fitting in PP • 0...+80°C
• with S030 sensor-fitting in PVDF, stainless steel
or brass
• –15...+100°C
Fluid pressure
The fluid pressure may be restricted by the fluid
temperature and the material the S030 sensor-fitting used
is made (see Fig. 9)
• with sensor-fitting S030 in plastic PN10
• with sensor-fitting S030 in metal PN16 (PN40 on request)
Flow rate measurement
• Measurement range • 0,3...10 m/s
• Measurement deviation
- with standard K-factor of the S020 fitting
- ±2.5% of the measured value
1)
- with K-factor determined with a Teach-In
procedure
- ±1% of the measured value
1)
(at the value of the
Teach-In flow rate)
• Linearity • ±0,5% of the full scale (10 m/s)
• Repeatability • ±0,4% of the measured value
1)
1)
Determined in the following reference conditions: medium = water, water and ambient temperatures 20 °C, min. upstream
and downstream distances respected, appropriate pipe dimensions
English
Type 8025 - 8035 - SE35 BATCH
