4. Preparation before installing the mechanical assembly
Coverdeck AX-IN standard water level

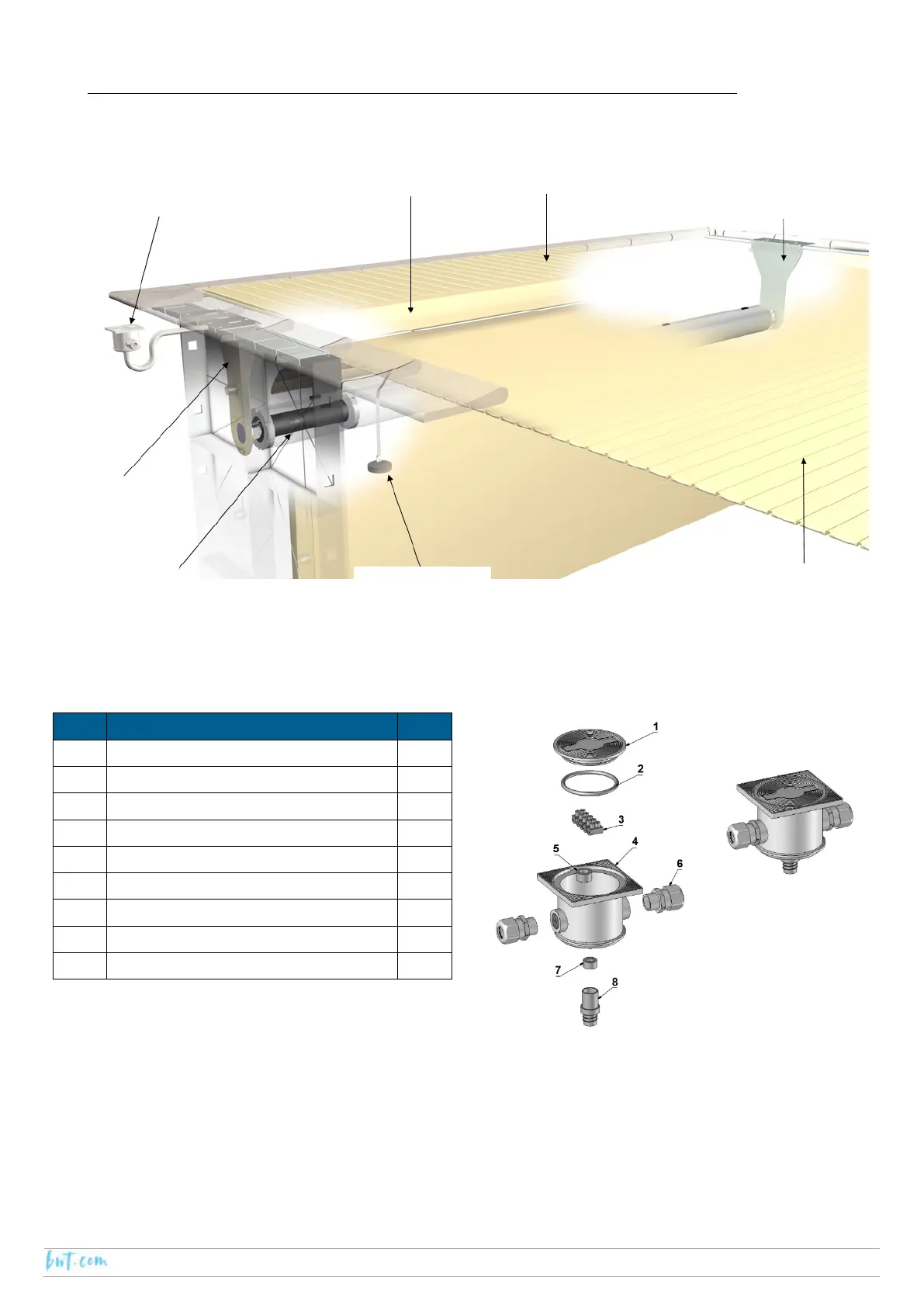

4.1. Deck box
Ref Description Qty
1 Deck box lid 1
2 O-ring Ø72.4x5.3 1
3 Terminal block 10 mm² 1
4
Deck box body
1
5 Cable gland seal (signal cable) 1
6 Cable gland 2
7 PARA seal Ø20x9 thickness 10mm 1
8 Hose tail 1
- Corrugated sheath, 1m 1
Glue the hose tail into the bottom of the connection deck, then push the sheath onto the hose tail.
Deck box
Duckboarding
Beam
Flange –
bearing side
Flange –
motor side
Motor
integrated into
the axle
Counterweight
Slat apron
