2.8.5. Hasp fastener for overflow and buffer tank
Ref Description Qty
1 Strap 1
2 Hinged SS carabiner 1
3 Collapsible hasp 1
4 Pozidrive countersunk
screw 3.9x38 SS A4
4
5 Nylon S 6x30 bushing 4
6 Cam buckle 1

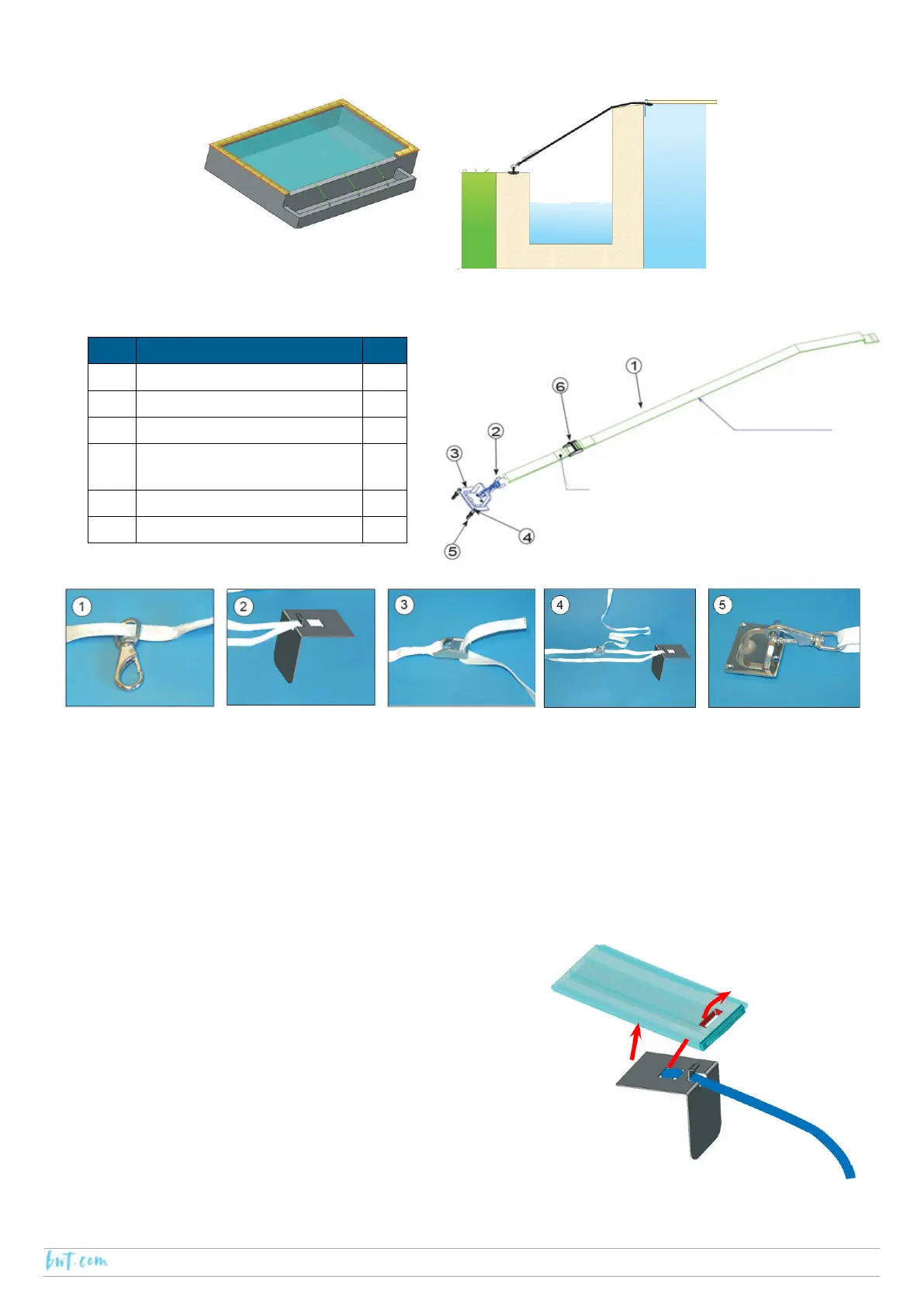

1-Thread the strap through the carabiner loops.
2-Thread the strap into the lateral fastener.
3-Thread the end of the strap through the cam buckle catch.
4-Lay out the assembly and adjust it to the correct length.
5-Attaching the carabiner to the collapsible hasp.
2.8.6.
Installation of the lateral fasteners
Blocking the cover apron in position using the lateral
straps:
With the cover apron rolled out fully over the pool, attach the
fasteners to the perforated slats by inserting them from
underneath. Next, attach the ends of the straps to the collapsible
SS hasps using the carabiner.
