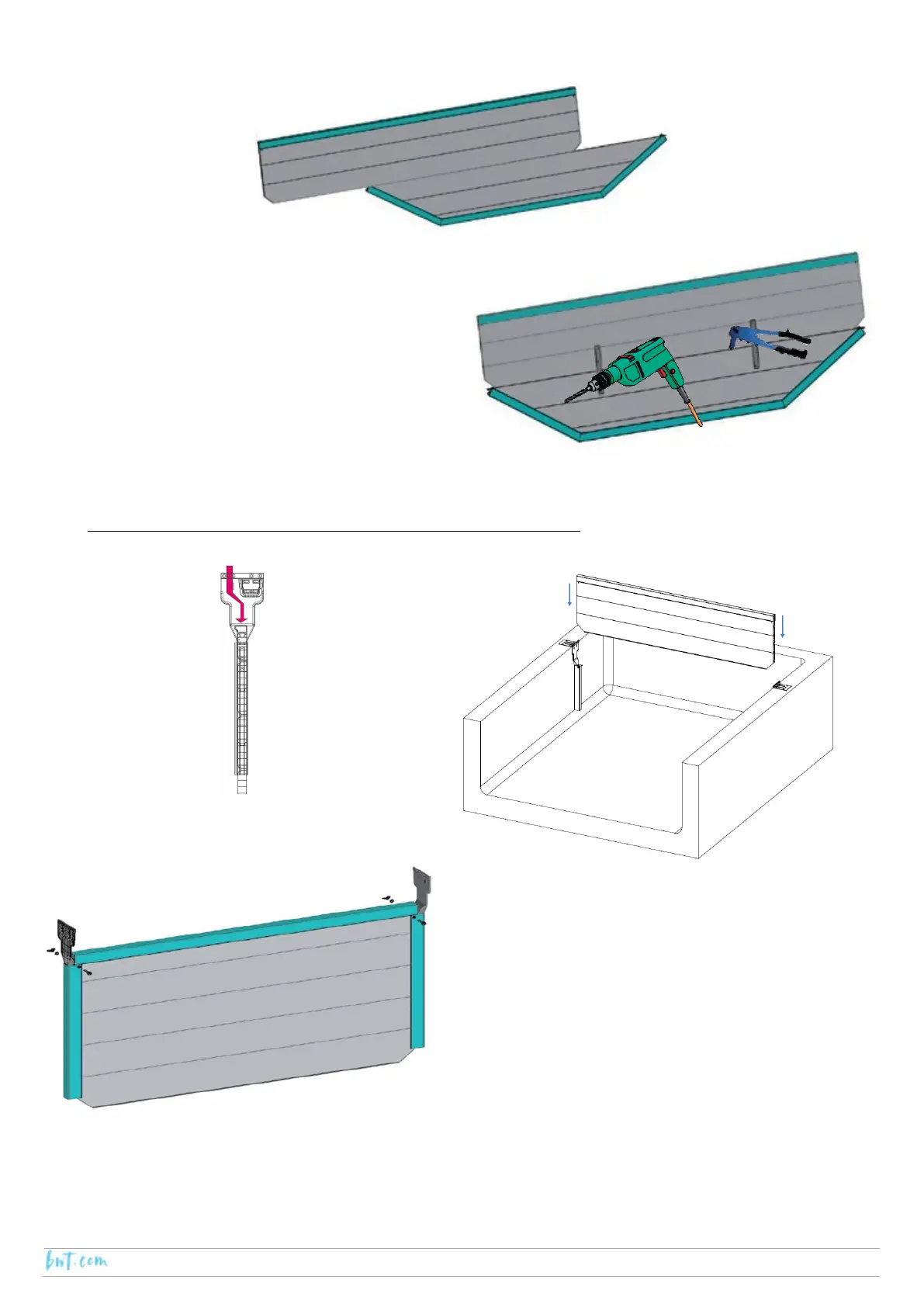

Slide the trapezoidal section onto the straight section.
Lay the assembled pit wall flat on the ground, pool side
(smooth side) down.
Position the flat bars so that they straddle the straight
section and the trapezoidal section at locations that
divide the pit wall into roughly 3 equal sections.
Adjust the height of the flat bars such that the holes do
not coincide with a groove or join between the panels.
Counter drill the panels through the holes in the flat bars
and rivet together.
4. Putting the separating pit wall in position
Slide the pit wall assembly into the lateral pit wall flanges.
Assembly of the Coverdeck type pit wall from behind
the beam.
Fasten the pit wall to the lateral flanges using screws,
washers and M10 nuts.
