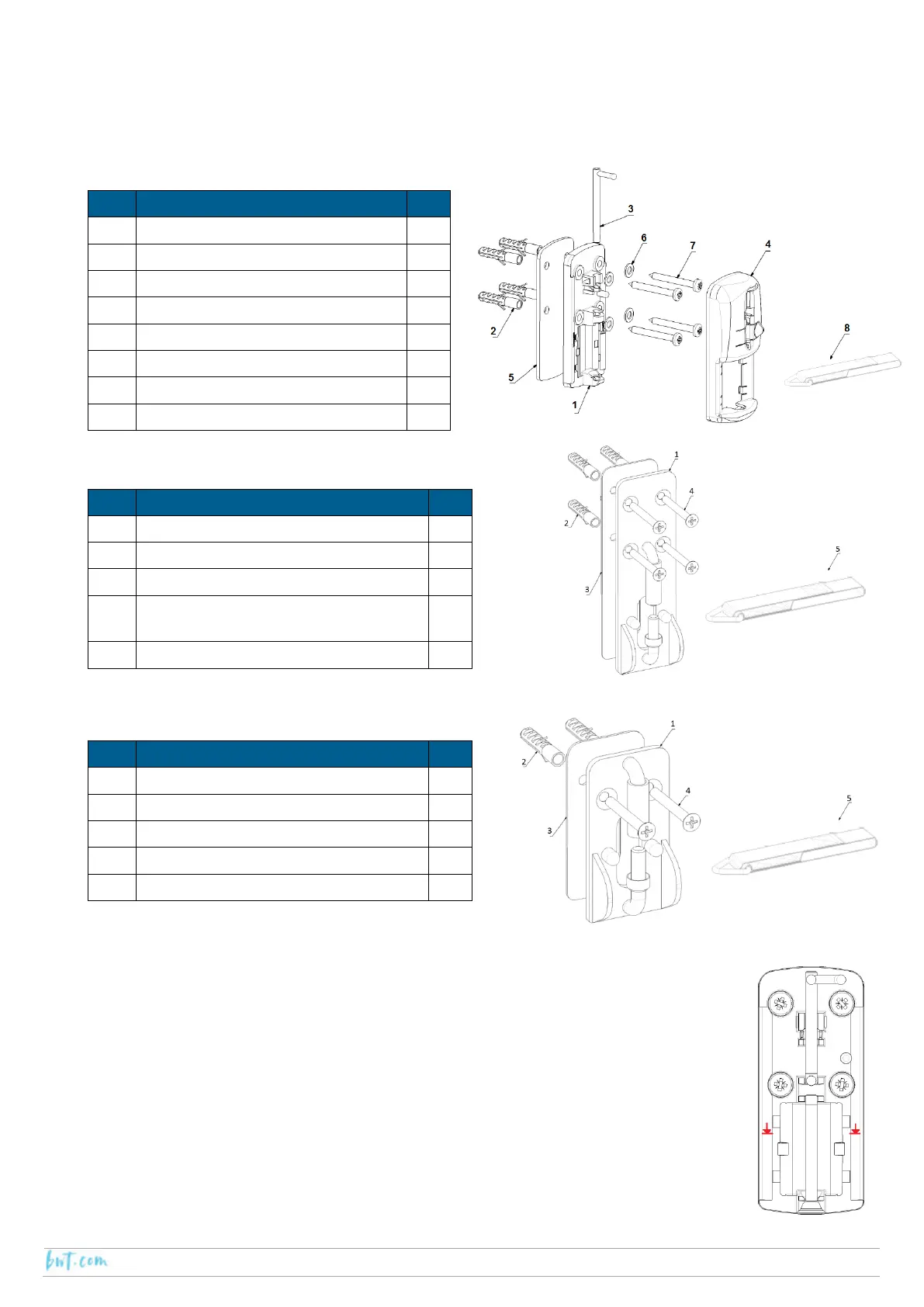

2.7. Cover apron safety fasteners
2.7.1. Wall mounted safety fastener
Version with trim
Ref Description Qty
1 Fastener frame 1
2
Nylon S8 bushing
4
3 SS slide bar 1
4 Trim 1
5 Frame gasket 1
6 Washer Z8 4
7
Z cross recess pan head screw ST 5.5x50
4
8
Fastener strap
1
Stainless steel version
Ref
Description
Qty
1
Fastener frame
1
2 Nylon S8 bushing 4
3 Frame gasket 1
4 Pozidrive countersunk screw ST
5.5x50
4
5 Fastener strap 1
High water line version
Ref Description Qty
1 Fastener frame 1
2 Nylon S8 bushing 2
3 Frame gasket 1
4
Pozidrive countersunk screw ST 5.5x50
2
5
Fastener strap
1
Installing the fasteners
The fastener straps are already attached to the first two slats of the cover apron.
Attach the fastener frame (1) to the wall opposite the axle exactly opposite the fastener straps
using the pozidrive countersunk screws ST 5.5 x 50. Position the fastener frame such that
the arrow markings coincide with the water level. In the case of liner or reinforced membrane
pools, do not forget to insert the fastener gasket between the fastener frame and the
membrane.
