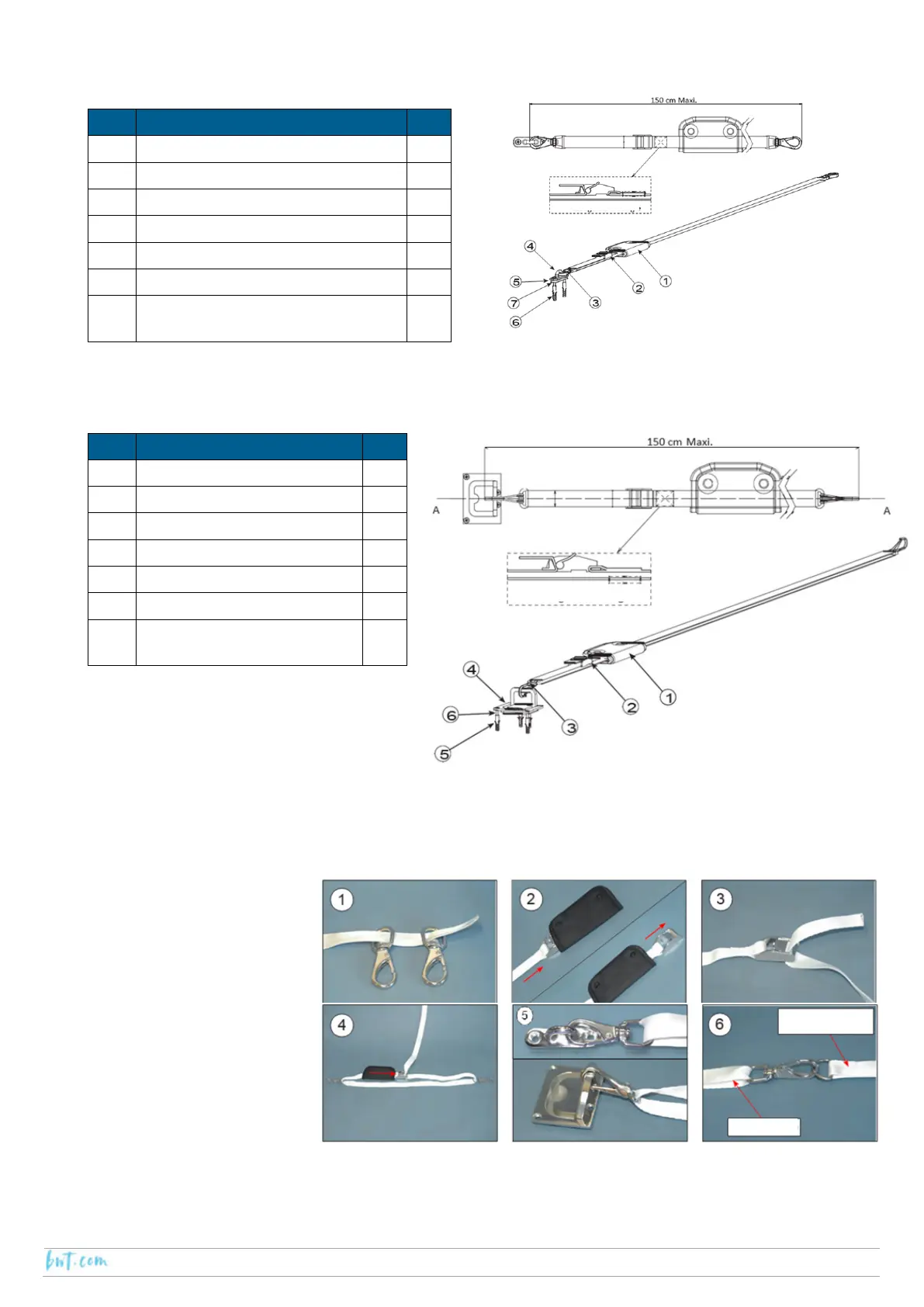

2.8.2. Stainless steel, fixed hasp fastener
Ref Description Qty
1 Protective sleeve 1
2 Strap and cam buckle 1
3 Hinged stainless steel carabiner 1
4 Fixed hasp 1
5 Fixed hasp gasket 4
6 Nylon S8 bushing 4
7 Pozidrive countersunk screw
ST 5.5x50 SS A4
4
2.8.3.
Stainless steel, collapsible hasp fastener
Ref
Description
Qty
1 Protective sleeve 1
2 Strap and cam buckle 1
3 Hinged SS carabiner 1
4 Collapsible hasp 1
5 Hasp gasket 4
6 Nylon S 6x30 bushing 4
7 Pozidrive countersunk
screw 3.9x38 SS A4
4
2.8.4.
Attaching the strap to the hasp
1-Thread the strap through the
carabiner loops.
2-Slide the cam buckle through the
sleeve and pull it out the other side.
3-Thread the end of the strap
through the cam buckle catch.
4-Arrange the assembly as shown
after it has been adjusted to the
correct length. Slide the black
sleeve over the cam buckle.
5-Attaching a carabiner to a fixed
or collapsible hasp.
6-Attaching a carabiner to the strap on the first slat of the cover apron.
Strap threading
Strap threading
Strap threading on the
first slat of the apron
Adjustable strap
