32 2020/06 - Indice de révision : A -
Installation of the fasteners

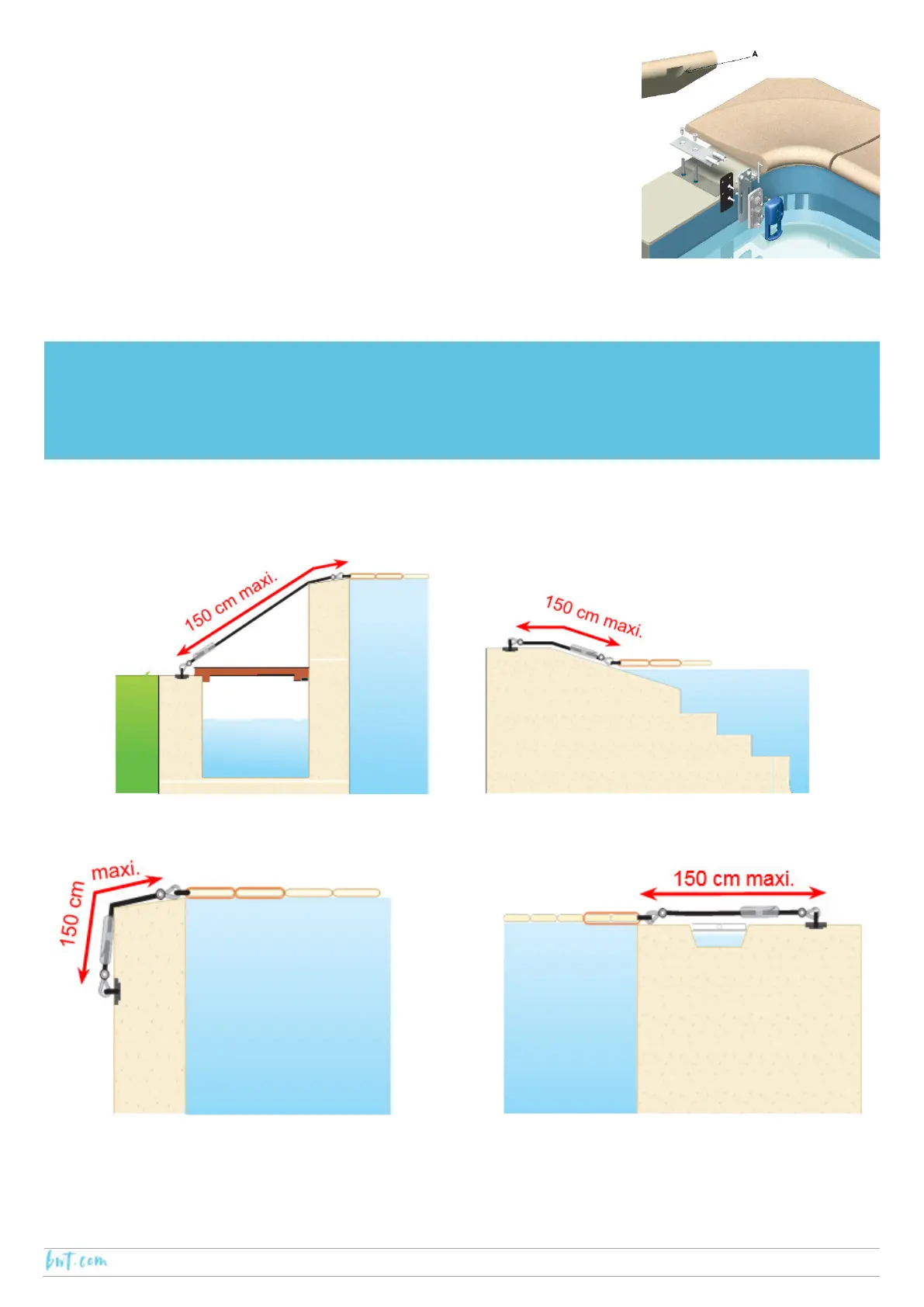

Shape the underside of the coping (A) to accommodate the safety fastener.
Drill through the fastener support bracket (3) Ø 10 mmm - depth 8 mm).
Fix the sub-coping support plate in position using two UPAT M8x50 bushings
and two Countersunk hex socket screws M8x20.
Version with trim: The fastener frame (1) is then mounted on the plate using
four Countersunk hex socket screws M6x20 (6) with Z6 washers (8) and H M6
nuts (9).
2.8. Adjustable strap at the end of the pool
CAUTION
French regulations require the installation of closing straps.
Do not forget to release the straps before rolling the cover up, failure to do so could cause
2.8.1.
Strap configurations
Overflow pool with buffer tank Pool with beach entry deck
Overflow pool without buffer tank Overflow pool with drain
To protect the leaktightness of the waterproofing finish, use straps with a fixed, stainless steel hasp. Install an
adjustable strap opposite each of the cover apron’s safety straps.
