14 2020/11 - Version: B -

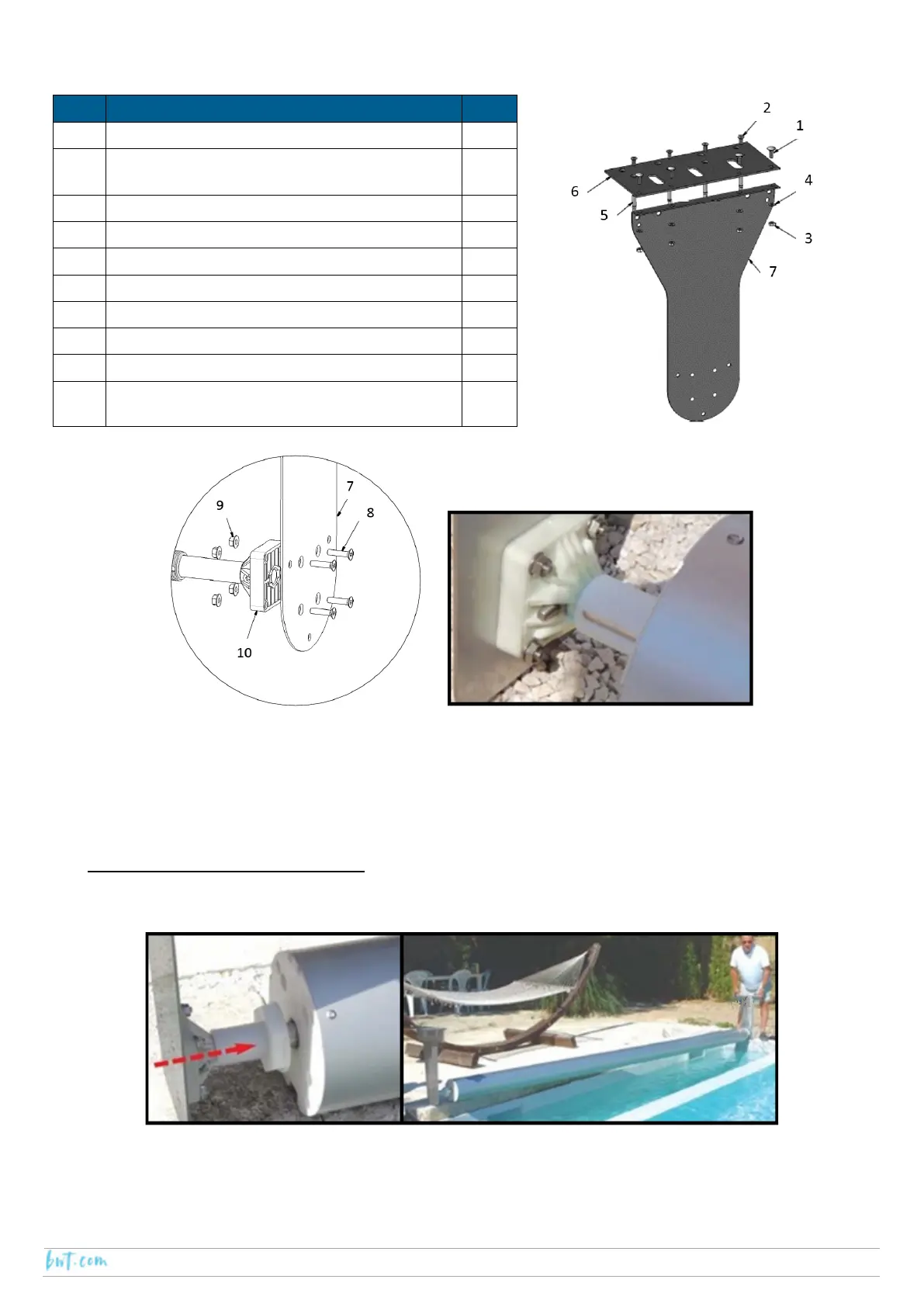

Assembly, bearing side
Ref Description Qty
1 Round head screw M8 x 20 A2 SS 4
2 Countersunk hex socket screw M8 x 20 A2
SS
4
3 H nut 8 A4 SS 4
4 Washer Z 8 A4 SS 4
5 Upat bushing M8 x 50 A4 SS 4
7 Flange, bearing side 1
8 Countersunk hex socket screw M8 35 A4 SS 4
9 HE nut M 8 A4 SS 4
10 Aluminium axle bearing 1
Side opposite the motor; fasten the bearing to the flange using 4 countersunk hex socket screws M8x35 shoulder
nuts.
Refer to the previous page for assembly of the sealing plate.
3. Installation of the axle
Submersion of the axle
Before submersion, reduce the length of the assembly as much as possible by sliding the stainless steel shaft
on the bearing side as far as possible into the axle.
Lower the axle carefully under the water (two people will be needed). Be careful not to knock against the pool’s
inner waterproofing surface while doing this.
