BWT COVERDECK AX-IN - Separating Pit Wall; Product Description; Mounting the Flanges - Coverdeck

PROTECTION & SAFETY
23 2020/06 - Indice de révision : A -
Code : 34560

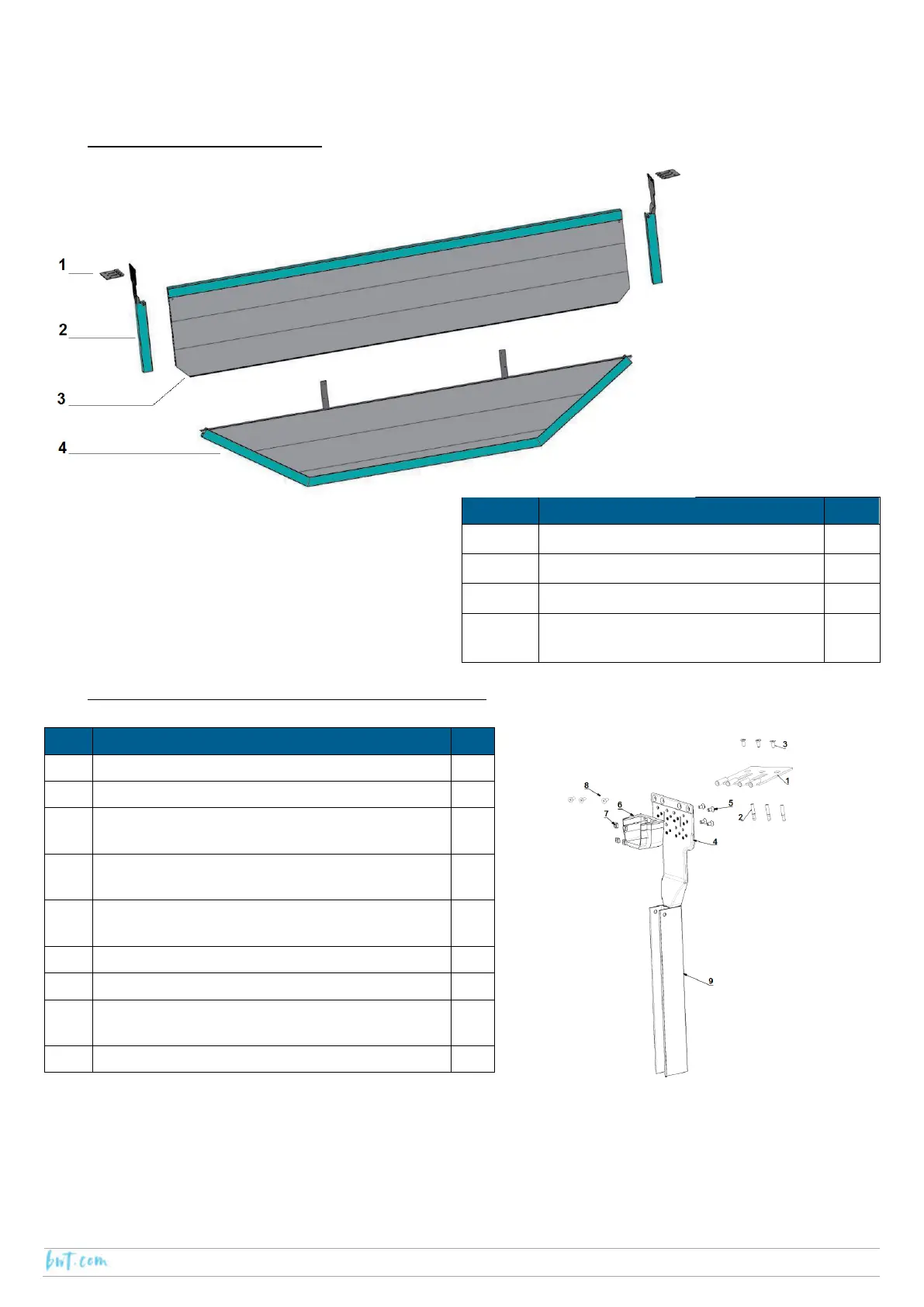

SEPARATING PIT WALL
1. Product description
Ref Description Qty
1
Sub-coping support plate
2
2
Pit wall mounting flange
2
3
Straight separating pit wall
1
4
Separating pit wall cut to fit shaped
walls (e.g. trapezoidal)
1
2. Mounting the flanges - Coverdeck
Ref Description Qty
1
Sub-coping support plate
2
2 Upat bushing M8 x 50 SS A4 6
3 Countersunk hex socket screw M8 x 20 SS
A4
6
4 Separating pit wall mounting flange, RH and
LH
2
5 Countersunk hex socket screw M8 x 16 SS
A4
8
6 Beam support shoe 2
7 Nut Q8 SS A4 8
8 Countersunk hex socket screw M8 x 20 SS
A4
6
9 Separating pit wall profile, LH and RH 2
Installation is identical to that of a Coverdeck beam and
mounting unit, except that separating pit
wall mounting
flange is inserted between the sub-coping support plate
and beam support shoe instead of the beam mounting
plate.
