Viper SC+™ IP Router for Licensed Spectrum PN 001-5008-000 Rev. C | Page 168

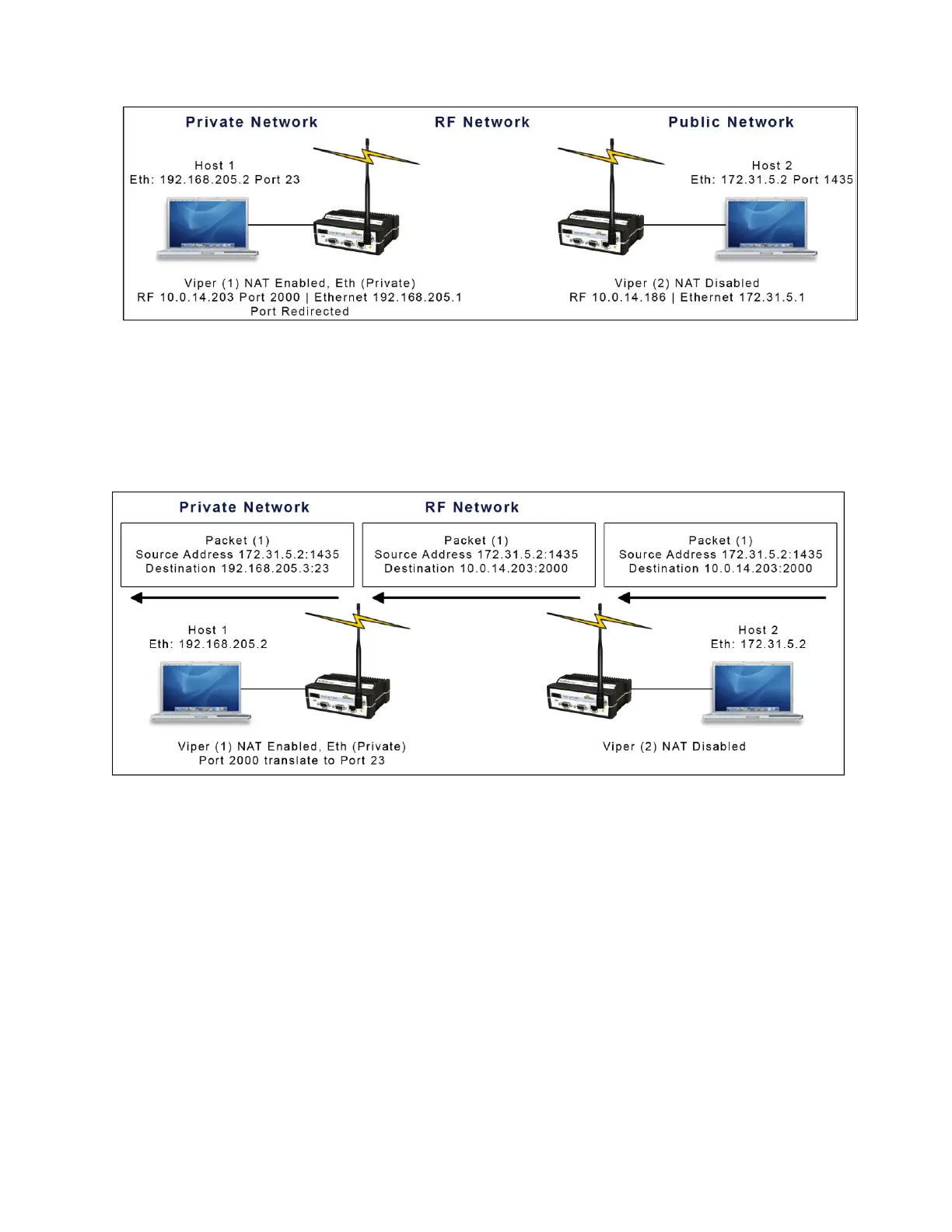

Figure 92 – Port 2000 is redirected to 192.168.205.125:23
When Host 172.31.5.2 wants to send packets to Host 192.168.205.2, the packets are sent to 10.0.14.203. NAT port
translation allows Host 172.31.5.2:1435 (port 1325) to send TCP packets to 192.168.205.5:23 (port 23) by sending the
packets to 10.0.14.203:2000 (port 2000).
The following figure shows how the packets would be modified as they moved through the network.
Figure 93 – Packet Flow, Port Redirection
