Viper SC+™ IP Router for Licensed Spectrum PN 001-5008-000 Rev. C | Page 174
TAGGED MODE

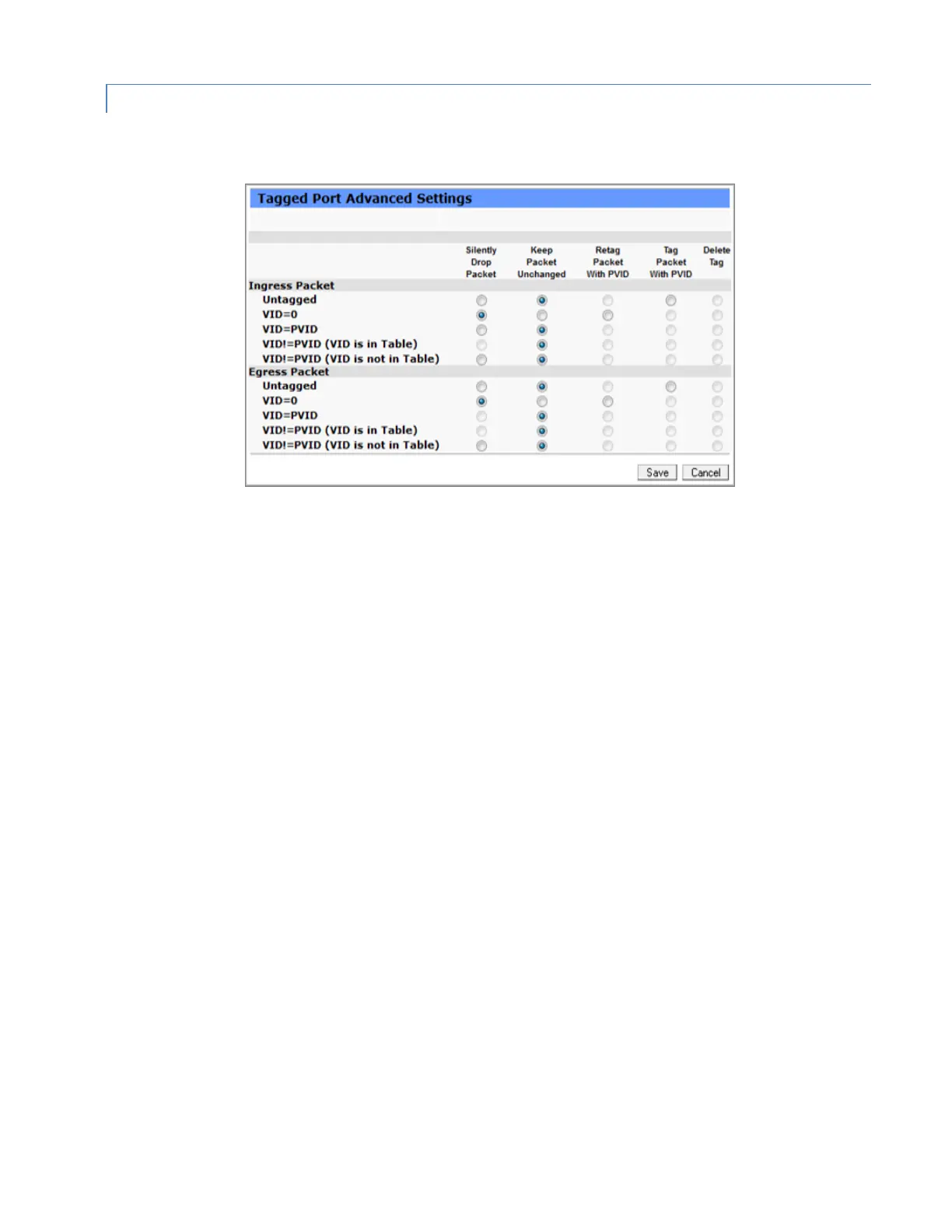

Ingress and egress packets on an interface operating in Tagged mode will typically be updated using the following rules
(available in the VLAN tab for the interface in the Viper Web interface).
VID is the VLAN ID contained in the packet.
PVID is the Port VLAN ID (the VLAN ID associated with the interface and configured through the Web browser).
The Viper Web interface allows you to configure a VLAN Member table to help handle packets with VLAN IDs different
than the VLAN ID associated with the interface.
