4.1.2. RF STATUS
The RF Status tab is the second (middle) tab of the Home page of the Viper Web interface. To view this tab, select
Home from the main navigation menu (or click Home) and click RF Status. From this tab you can view RF Status
information for the Viper router.

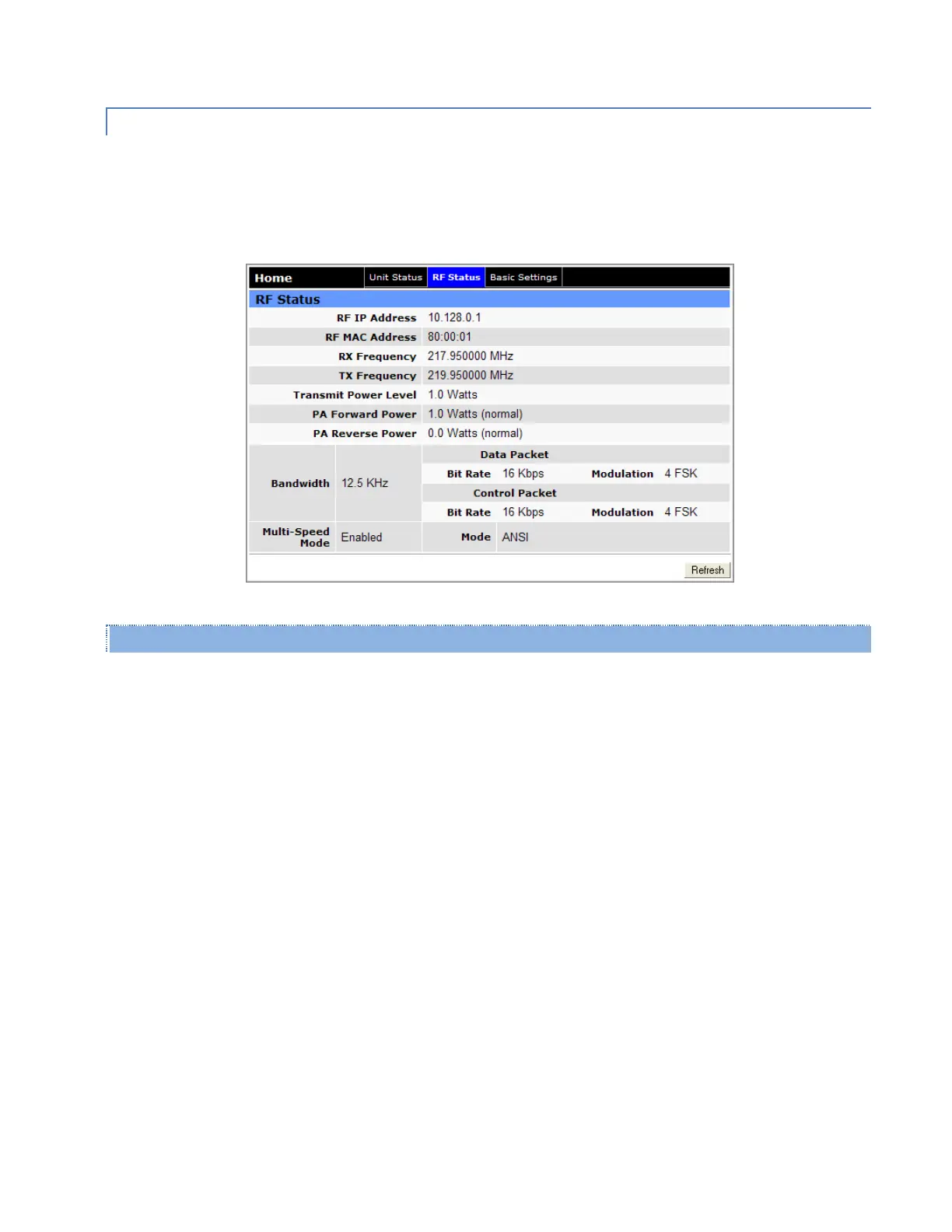

Figure 27 – Home – RF Status tab
RF Status
RF IP Address
The RF IP Address (default is assigned by the factory, based on the unit’s MAC address) is the IP address that is
used when sending data and control packets in the Viper radio IP network. The RF IP Address can be configured in
RF Network Settings » RF Network.
RF MAC Address
The MAC address assigned to the Viper radio interface by the factory.
RX Frequency
The operating frequency currently being used for receiving data and control packets.
TX Frequency
The operating frequency currently being used for transmitting data and control packets.
Transmit Power Level
The current transmit power level setting.
PA Forward Power
The transmit power measured during the last transmission.
PA Reverse Power
The reverse power measured during the last transmission.
