Viper SC+™ IP Router for Licensed Spectrum PN 001-5008-000 Rev. C | Page 113
4.8. DIAGNOSTICS
The Diagnostics tab contains five tabs: Interface Statistics, Remote Statistics, SNMP, Online Diagnostics, and Radio Log.
4.8.1. INTERFACE STATISTICS
Interface Statistics is the first (left-most) tab in the Diagnostics page. To navigate to this tab, select Diagnostics from the
main menus. This tab provides information about packets sent and received on each of the interfaces (Ethernet, the
two serial ports, and RF), and Airlink Error Detection statistics.

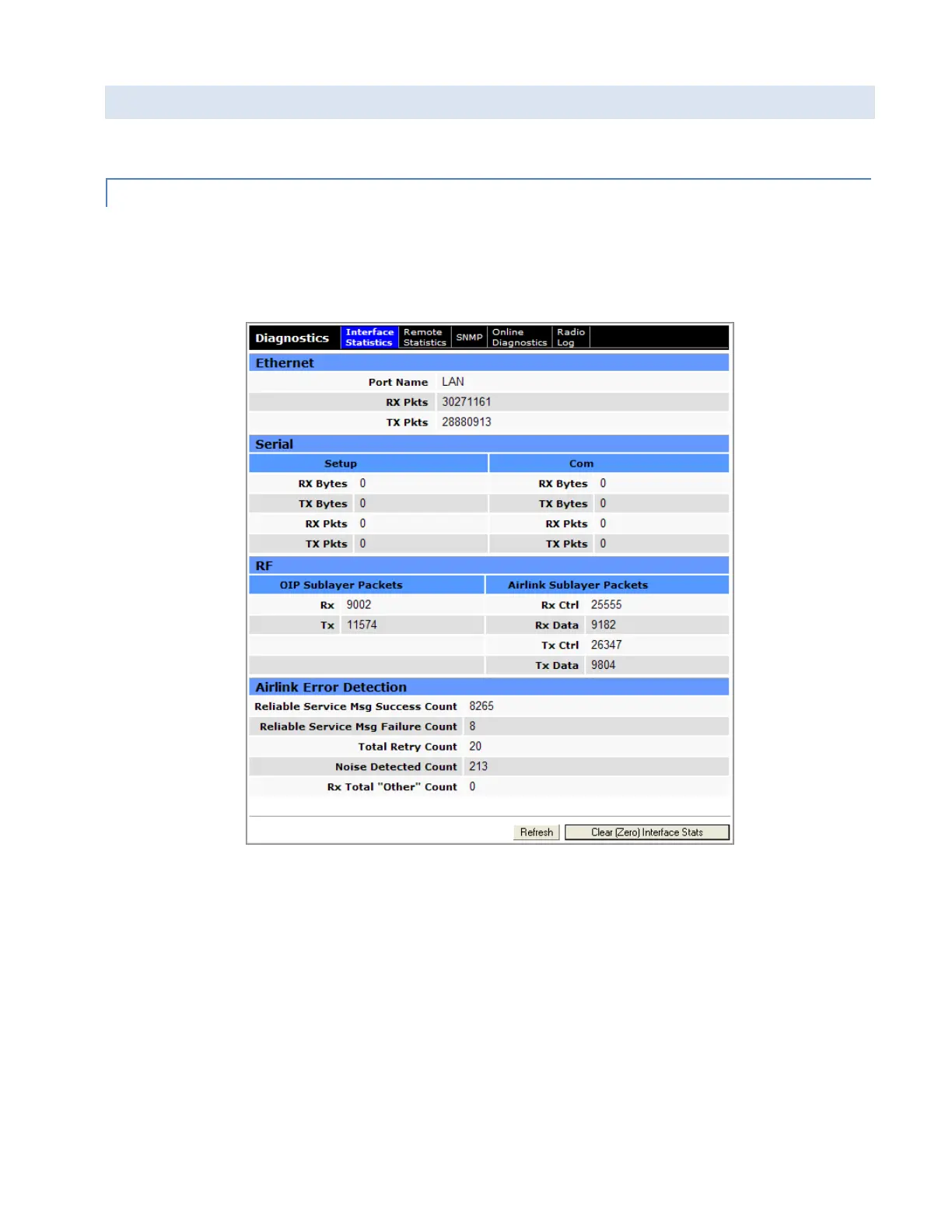

Figure 66 – Diagnostics – Interface Statistics
The Interface Statistics tab reports the amount of traffic received and sent by each of the three interfaces: Ethernet,
Serial and RF. The tab also reports statistics gathered from the airlink that can indicate the quality of the RF links.
Note: Definitions that follow in this section for use in this tab use the following conventions.
Rx (or Input) = data received from a lower network layer.
Tx (or Output) = data transmitted to a lower network layer.
Cycling power to the Viper or clicking Clear (Zero) Interface Stats will reset all statistics to zero.
