VLAN MEMBER TABLE
The VLAN member table is used for interfaces operating in Tagged mode only. It is used to select the behavior of the
Viper when it processes packets with VLAN IDs that are different from the interface VLAN ID (PVID).
You can maintain a list of VLAN IDs used when processing packets where the packet VLAN ID (VID) is not equal to the
interface VLAN ID (PVID).
Example:
1) LAN interface is operating in Tagged mode.
2) LAN interface PVID = 100.

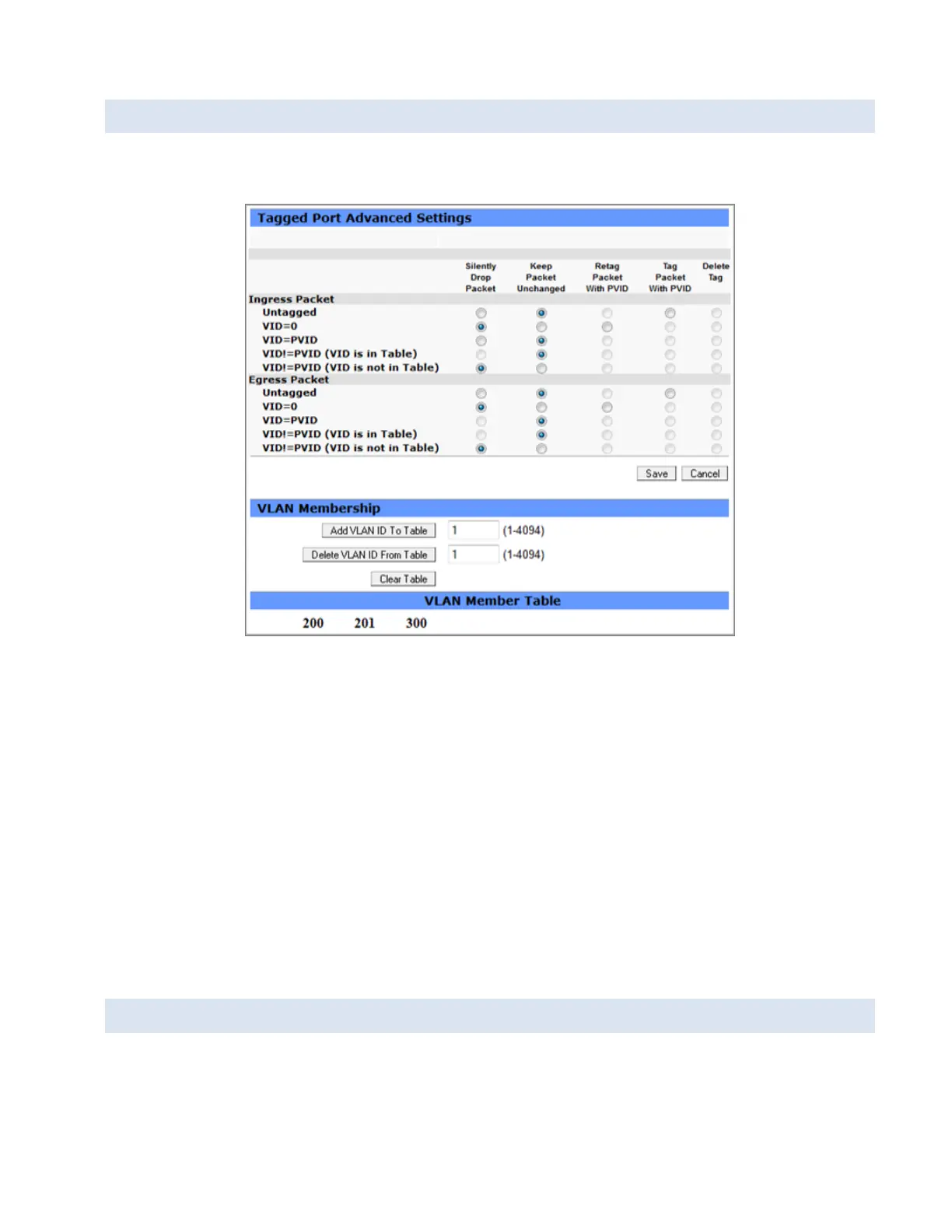

3) LAN interface contains the advanced configuration shown in the previous figure.
4) The Viper receives a (ingress) packet with VID = 400.
 The Viper silently drops the packet because the VID is not equal to the PVID and the VID is not in the Member
table.
5) The Viper receives a (ingress) packet with VID = 200.
 The Viper keeps the packet unchanged because the VID is not equal to the PVID, but the VID is in the Member
table.
EXAMPLES
The following examples show how packets are processed in Bridge mode with VLAN disabled, in Bridge mode with
VLAN enabled, and in Router mode.
