Viper SC+™ IP Router for Licensed Spectrum PN 001-5008-000 Rev. C | Page 163
RF INTERFACE PRIVATE

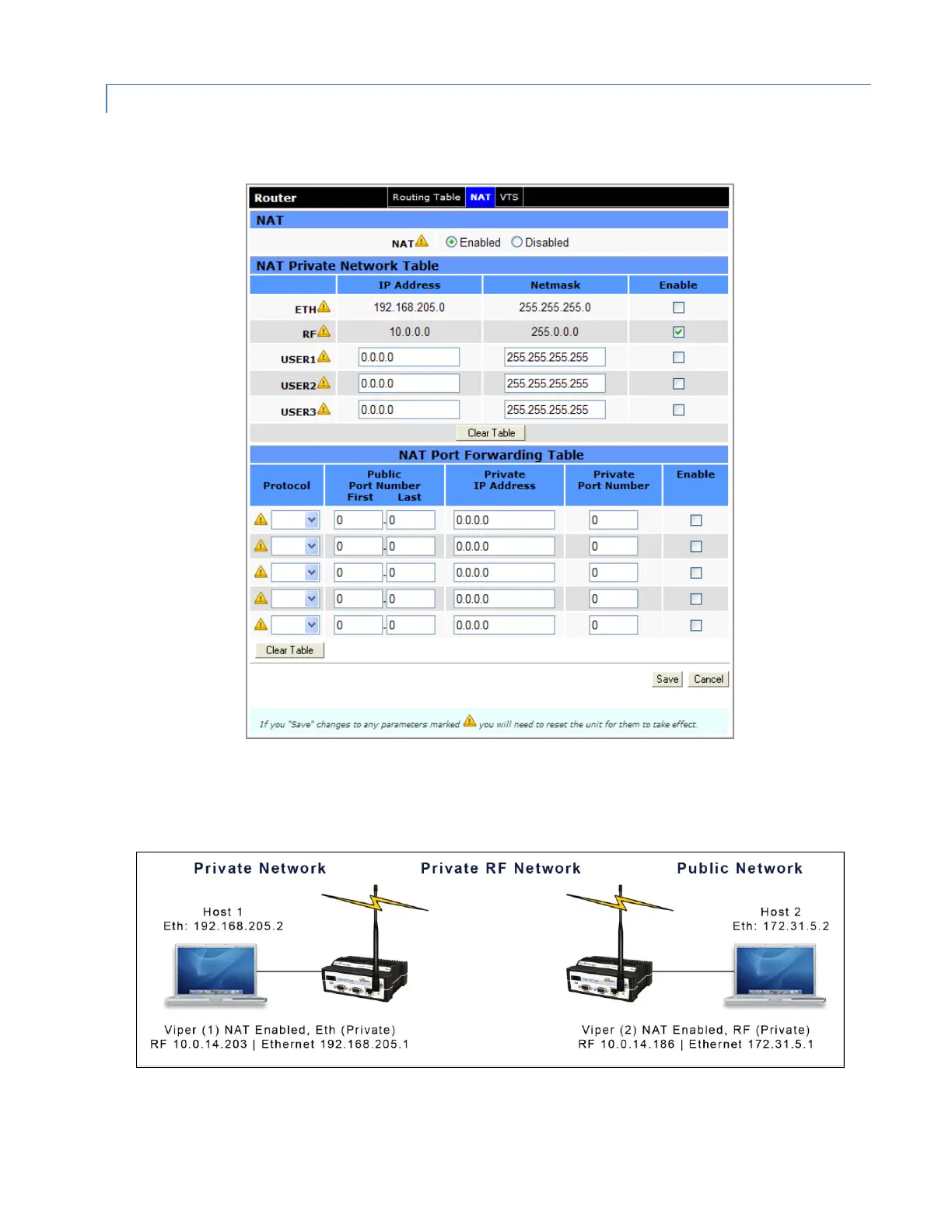

The following figure shows NAT enabled for the RF interface.
Figure 85 – NAT Enabled, RF Interface (Private)
The preceding figure shows the Viper configured to protect the Viper (2) RF interface and Viper (1) Ethernet interface
from hosts located on a public network. The following figure shows what this looks like.
Figure 86 – NAT Enabled, RF (Private), Ethernet (Private)
