4.2.3. RF TESTS
RF Tests is the third (right-most) tab of the Radio Settings page. To navigate to this tab, select Radio Settings from the
main menu and click RF Tests. In this tab you can generate and send Test Tones, display the SINAD meter reading, or
conduct a Ping Test and Command Response.

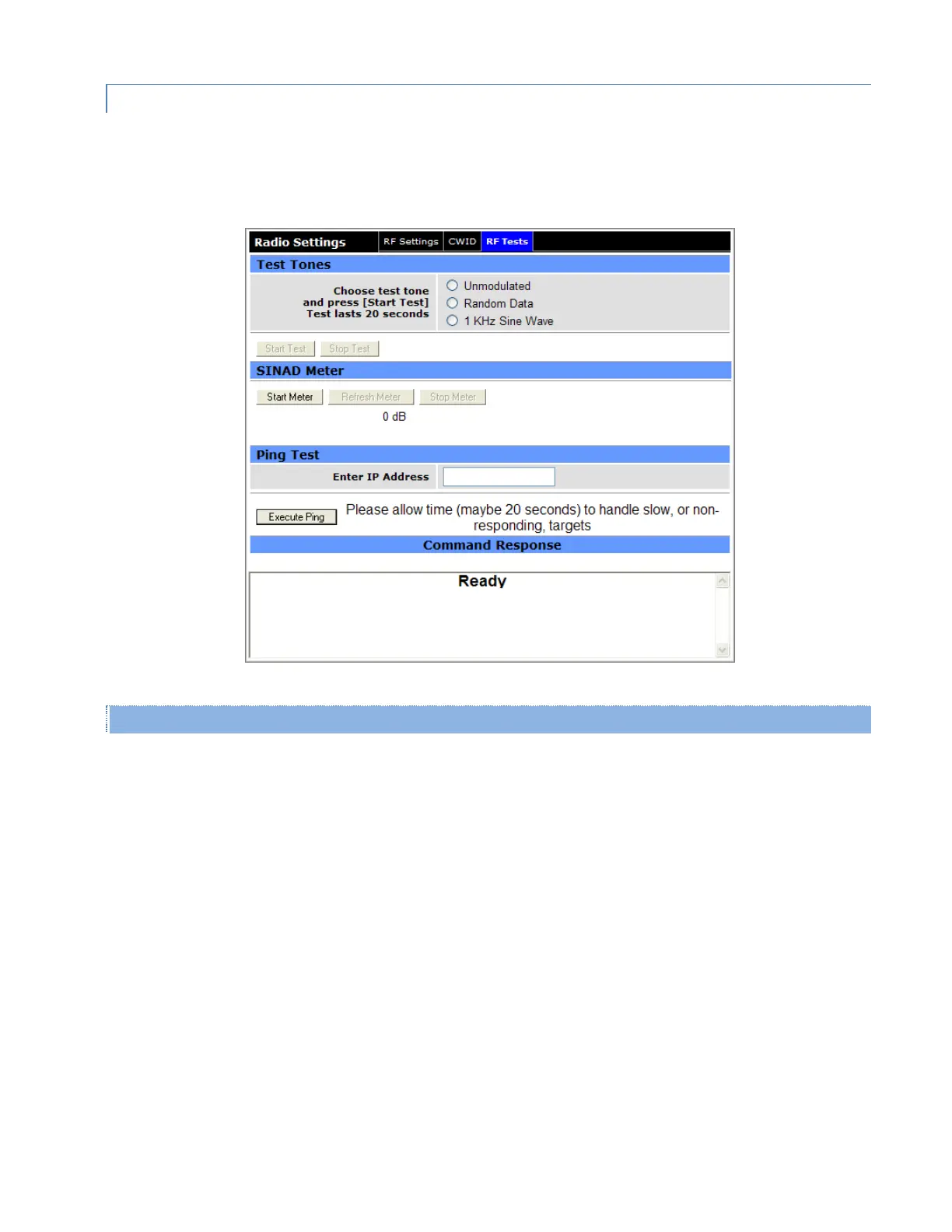

Figure 31 – Radio Settings – RF Tests
Test Tones
Note: This test may cause other Vipers to stop transmitting for the duration of the test tone if they have been
configured to Listen Before Transmit, since the test tone selected may be noise (Unmodulated or 1 kHz Sine Wave) or
data (Random Data).
Test Tones
Allows a tone to be transmitted for testing purposes. The test tone will be transmitted for 20 seconds after the
Start Test button is clicked unless the Stop Test button is clicked, which will stop transmitting the test tone.
Three test tones are available.
– Unmodulated
– Random Data
– 1 kHz Sine Wave
Only one of these three types of test tone may be transmitted for each test.
Once the type of test tone is selected,
– Click Start Test to start transmitting. The selected tone will be transmitted for 20 seconds
– Click Stop Test if it is necessary to stop transmission of the test tone before 20 seconds.
