0
200
400
600
800
1000
1200
1400
1600
12345678
1500
Page
3 -
Manual code:
FA00598-EN ver.
1 05/2018
© CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.
With swing gates it is always advisable to install and electro-lock. This is to ensure a reliable closing and to protect the gearmotor’s inner workings.
But whereas with reversible operators it is merely advisable, with irreversible ones, beyond 2.5 m, it is obligatory.
KEY
This symbol indicates parts to read carefully.
⚠
This symbol indicates parts about safety.
☞
This symbol tells you what to say to the end users.
DESCRIPTION
FROG-MD Right-hand irreversible gearmotor for swing gates with 8-m long leaves.
FROG-MS Left-hand irreversible gearmotor for swing gates with 8-m long leaves.
Intended use
Designed to power swing gates for residential or condominium use.
Any installation and operation that differs from what is set out in this manual is prohibited.

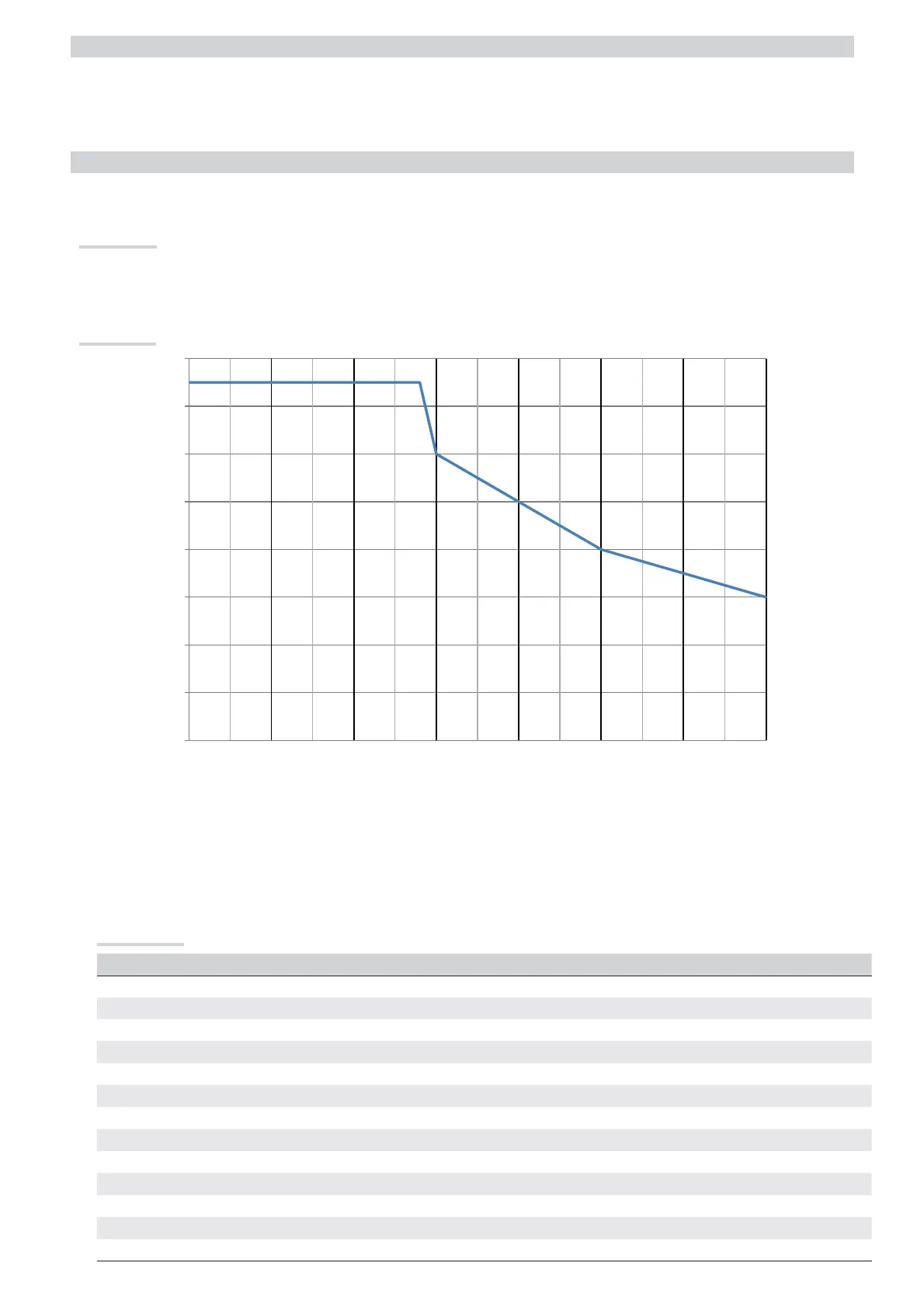

Limits of use
THE MEASUREMENTS, UNLESS OTHERWISE STATED, ARE IN MILLIMETERS.
Leaf weight (kg)
Leaf length (m)
Technical data
MODELLO FROG-MD / FROG-MS
Protection rating (IP) 67
Power supply (V - 50/60 Hz) 230/400 AC (3P+N+PE)
Motor power supply (V - 50/60 Hz) 230/400 AC (3P+PE)
Power draw (A) 2,5 max.
Power (W) 600
Thrust (N m) 1000 max.
Opening time to 90° (sec) 45
Duty Cycle (%) 50%
Operating temperature (°C) -20 ÷ +55
rpm 0,35
Gear ratio 1/1800
Insulation class I
Weight (kg) 89,36
