UNI 5588 M12
UNI 7474 M12
UNI 5739 M20x50
UNI 5739 M12x80
Page
8 - Manual code:
FA00598-EN ver.
1 05/2018 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

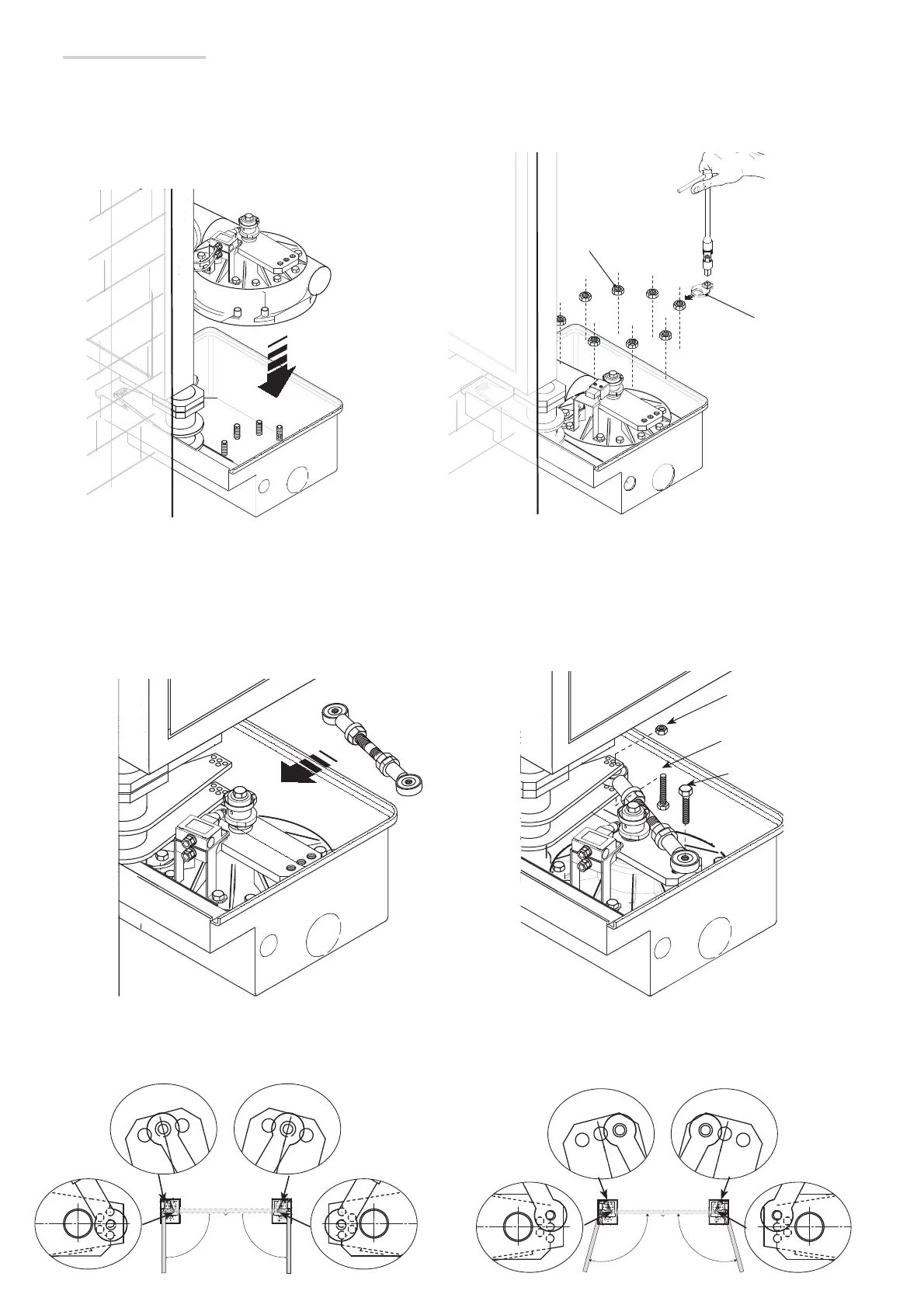

Securing the gearmotor
N.B. the figures below are shown from the outside to make the stages of assembling the right-hand gearmotor more intuitive.
Insert the gearmotor in the foundation box and secure with nuts using the crow's-foot spanner supplied and a ratchet wrench (not supplied).
Secure the tie rod between the motor arm and the arm unit in the prepared holes using nuts and bolts.
N.B. the arms have several holes in order to obtain various opening angles for the leaves.
