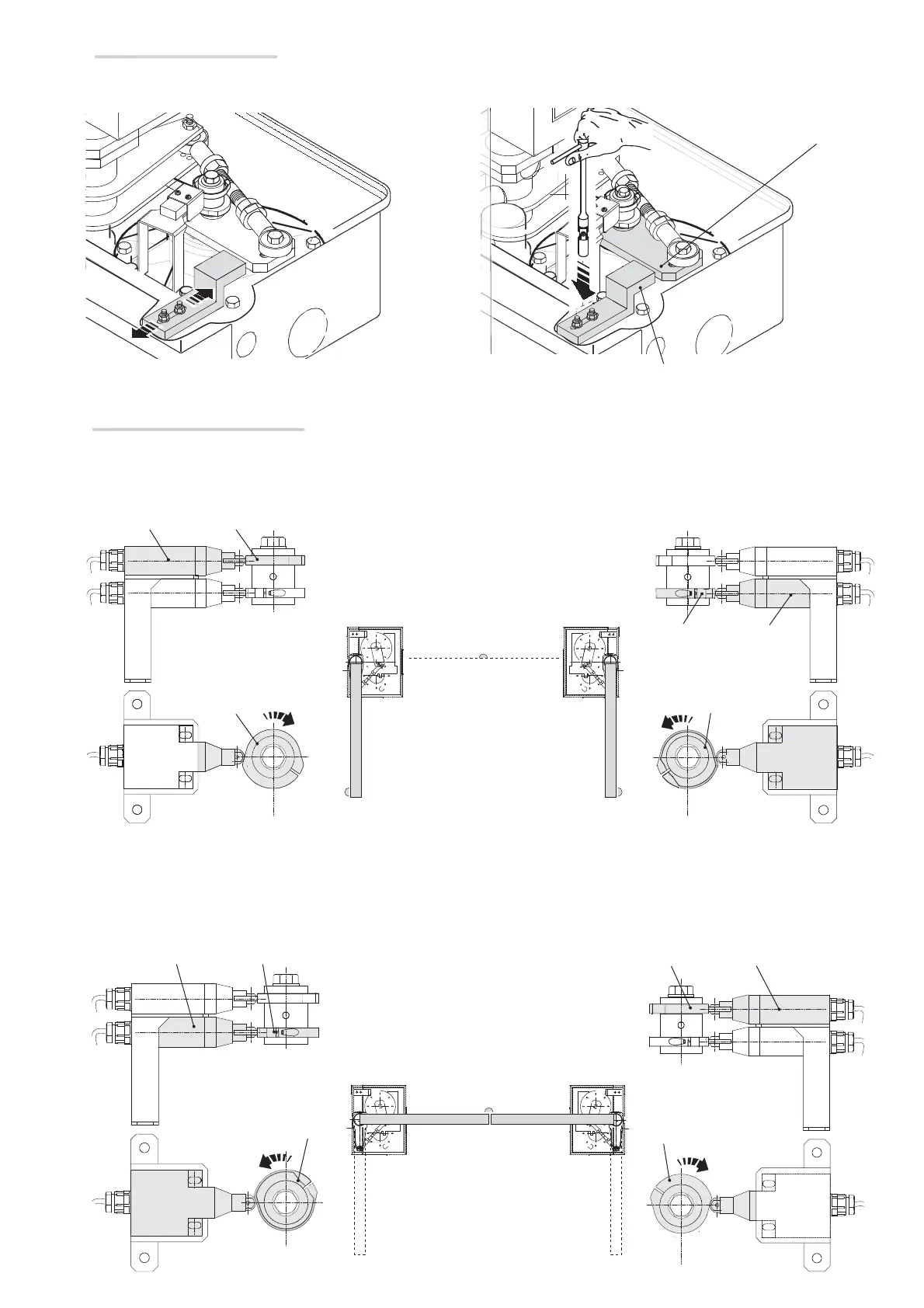

Adjusting the mechanical stop
Before determining the end run points, release the gearmotor, close the leaf manually and adjust the mechanical stop, bringing it to the end of its run with the
motor arm. Secure the nuts.
Mechanical stop
Motor arm
OUTER
⬇
entry
exit
⬆
INNER
OUTER
⬇
entry
exit
⬆
INNER
Establishing the limit-switch points
For opening:
- completely open the leaves;
- turn the left-hand gearmotor cam clockwise ⓐ until the micro switch engages ⓑ;
- turn the right-hand gearmotor cam counter clockwise ⓒ until the micro switch engages ⓓ.
For closing:
- completely shut the leaves;
- turn the left-hand gearmotor cam counter-clockwise ⓐ until the micro switch engages ⓑ;
- turn the right-hand gearmotor cam clockwise ⓒ until the micro switch engages ⓓ;
