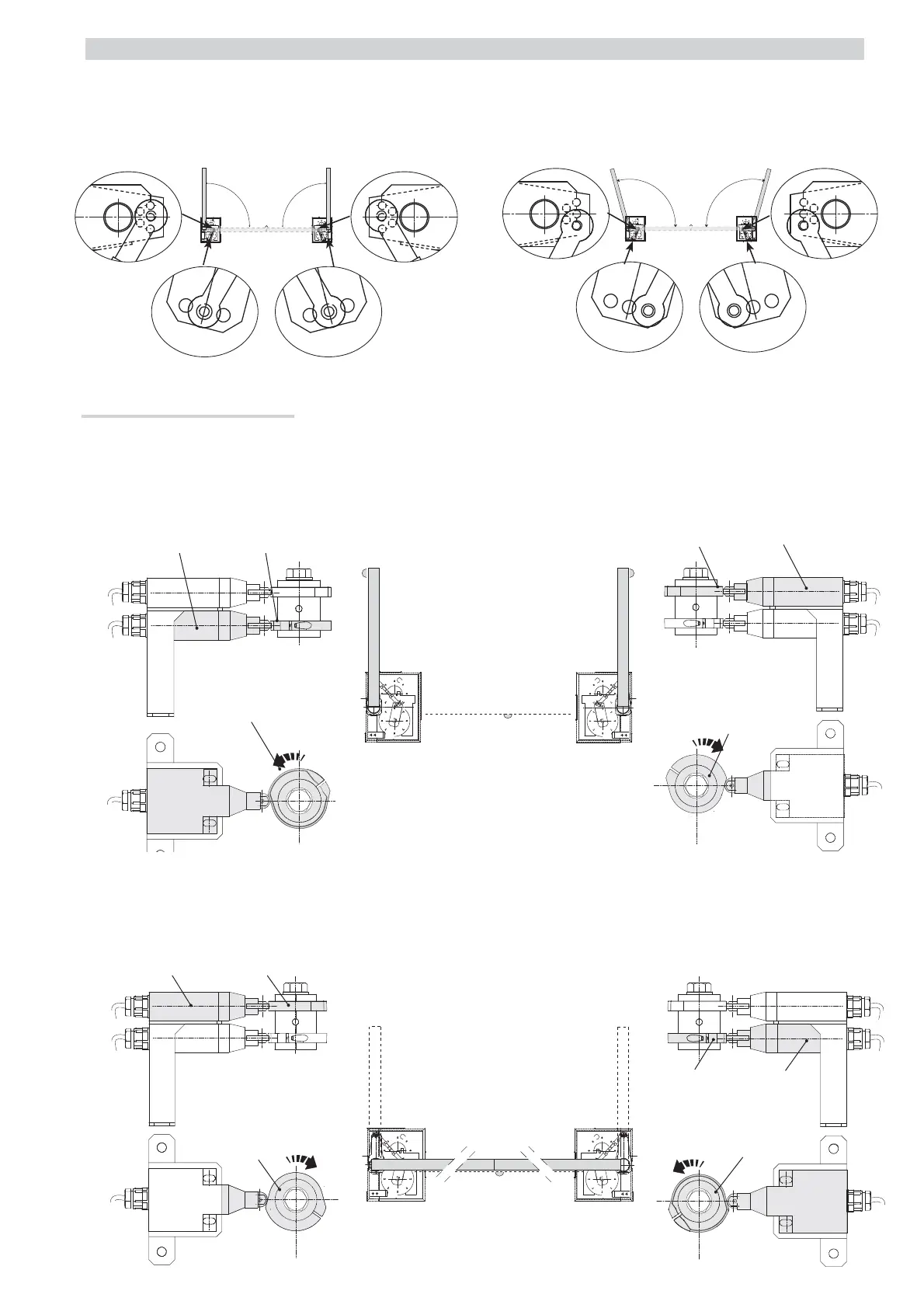

N.B. the arms have several holes in order to obtain various opening angles for the leaves.
90° OPENING 95° OPENING
INSTALLING AND CONNECTIONS FOR OUTWARD-OPENINGS
Below are the only procedures that vary compared to standard installations:
LR
OUTER
⬇
entry
exit
⬆
INNER
LR
OUTER
⬇
entry
exit
⬆
INNER
For closing:
- completely shut the leaves;
- turn the left-hand gearmotor cam clockwise ⓐ until the micro switch engages ⓑ;
- turn the right-hand gearmotor cam counter clockwise ⓒ until the micro switch engages ⓓ.
For opening:
- completely open the leaves;
- turn the left-hand gearmotor cam counter-clockwise ⓐ until the micro switch engages ⓑ;
- turn the right-hand gearmotor cam clockwise ⓒ until the micro switch engages ⓓ;
Establishing the limit-switch points
