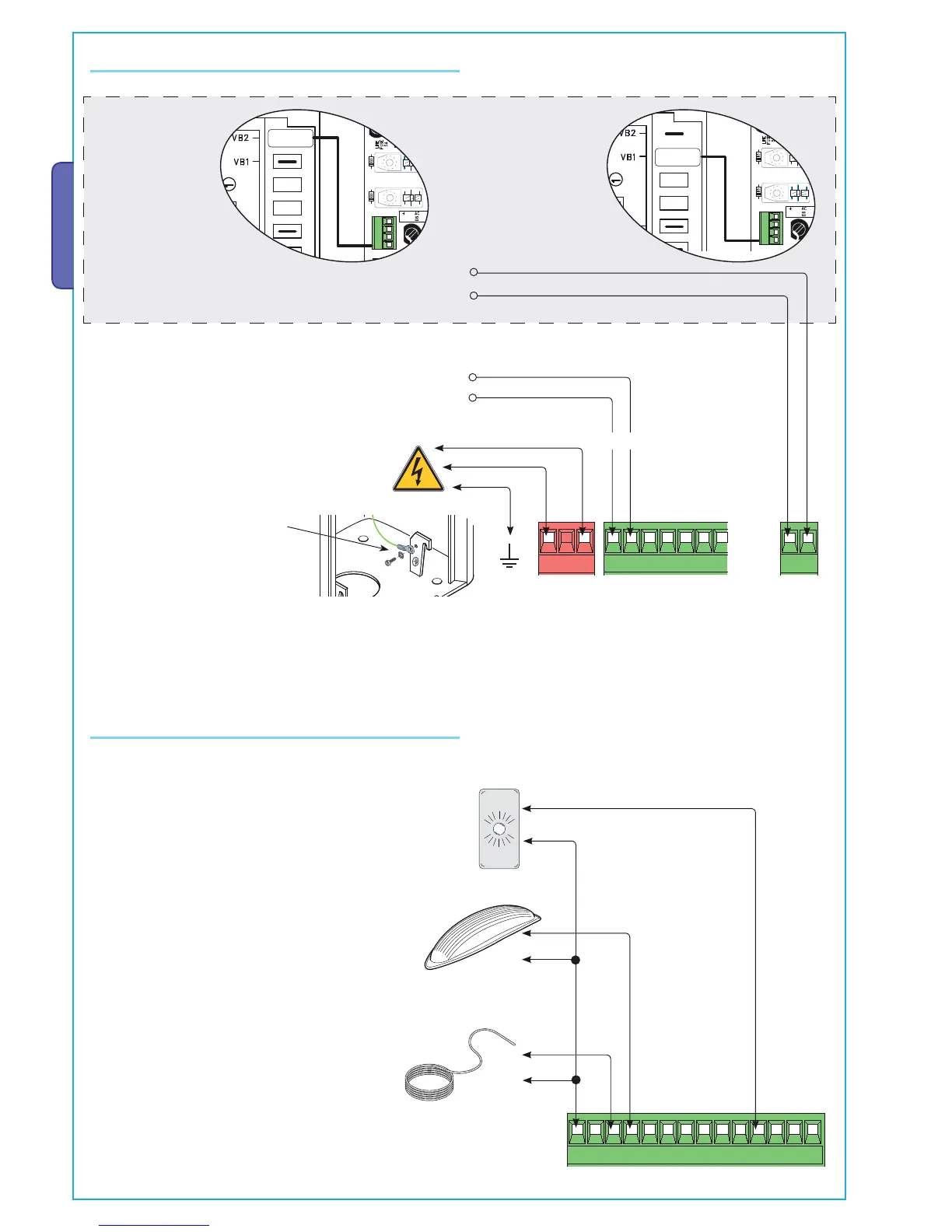

Terminals for powering the following accessories:
- 24V A.C. normally;
- 24V D.C. when the emergency batteries are working;
Maximum allowed power: 40W
Power supply for accessories
230V (a.c.) Power, 50/60Hz frequency
Cable lug with bolt and washer for
connecting to earth
Open barrier warning light (contact rating: 24V – 3W max.)
– Signals when bar is in ‘up’ position, turns o once bar is down
Luminous band (Contact rating: 24V-24W max.)
– Flashes when bar is closed or moving.
Warning devices
Flashing Crown (Contact rating: 24V – 8W max.)
– Flashes when bar is opening and closing.
Power out socket for electroblock, activated with opening command.
- VB2 , 24V electro-
block powering (pre-
set connection)
- VB1, 12V electro-
block powering
To Next Page
