Pag.
6
- Manual code:
119GU44
119 G U44 ver.
0.4
0.4 01/2012 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

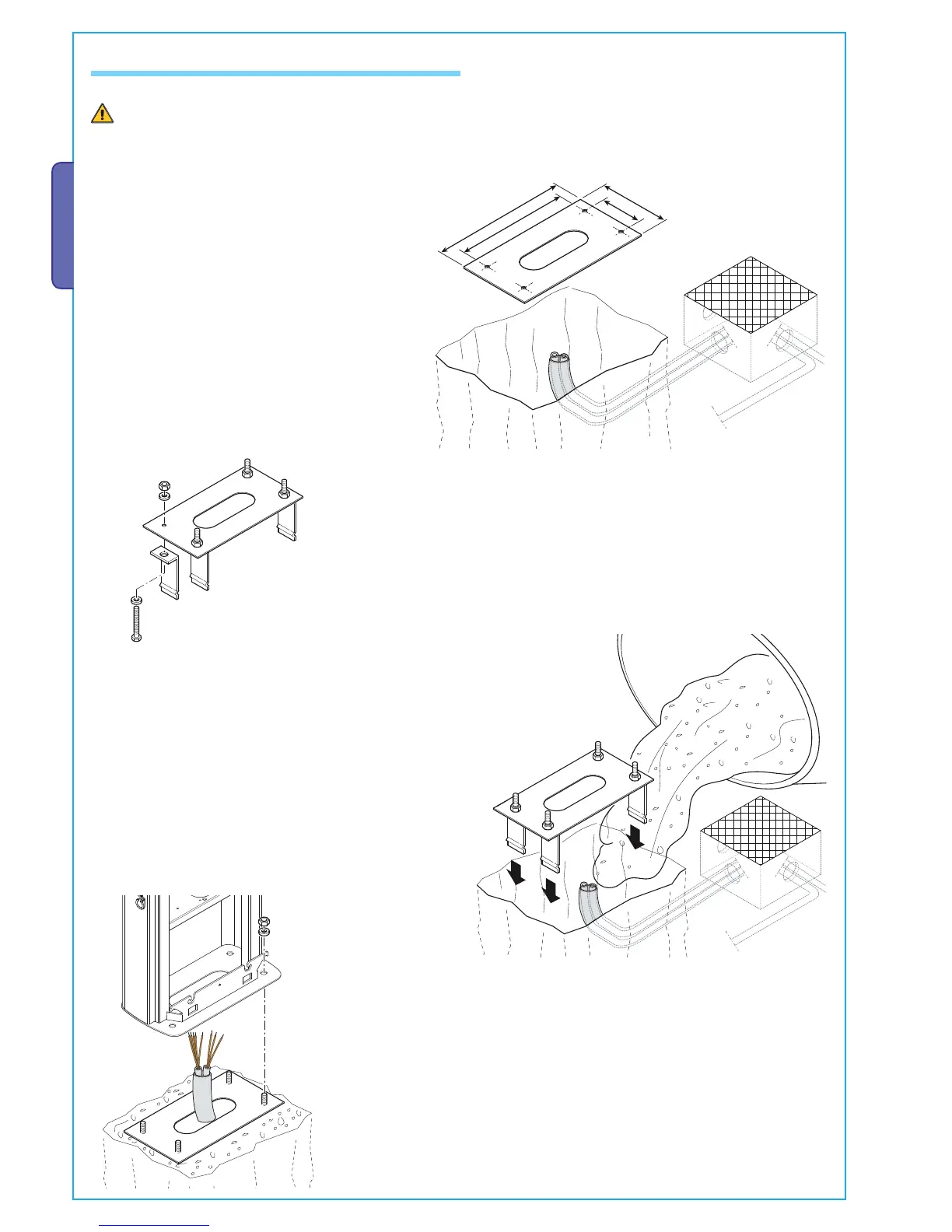

5.5 Fitting for unit base
The following applications are only examples, as the space required for unit installation and the accessories vary depending
on dimensions and therefore it is up to the installer to select the best solution.
- Assemble the four anchoring clamps at the base.
- Prepare a hole to house the fixing base and prepare
sheath tubes from the branch pit for the connections.
N.B. the number of tubes depends on the type of system
and the accessories you will hook up.
- Remove the nuts and washers from the threaded screws, position the cabinet on
the base in correspondence with the 4 threaded screws and secure with the nuts and
washers.
Note: We recommend installing the cabinet with the inspection hatch facing the internal
area.
- Fill the hole with concrete and immerge the clamps and the fixing
base, paying particular attention to the sheath tube which must
go through the hole at the base. The base must be perfectly level,
clean and with the screw threads fully on the surface.
