AF Card

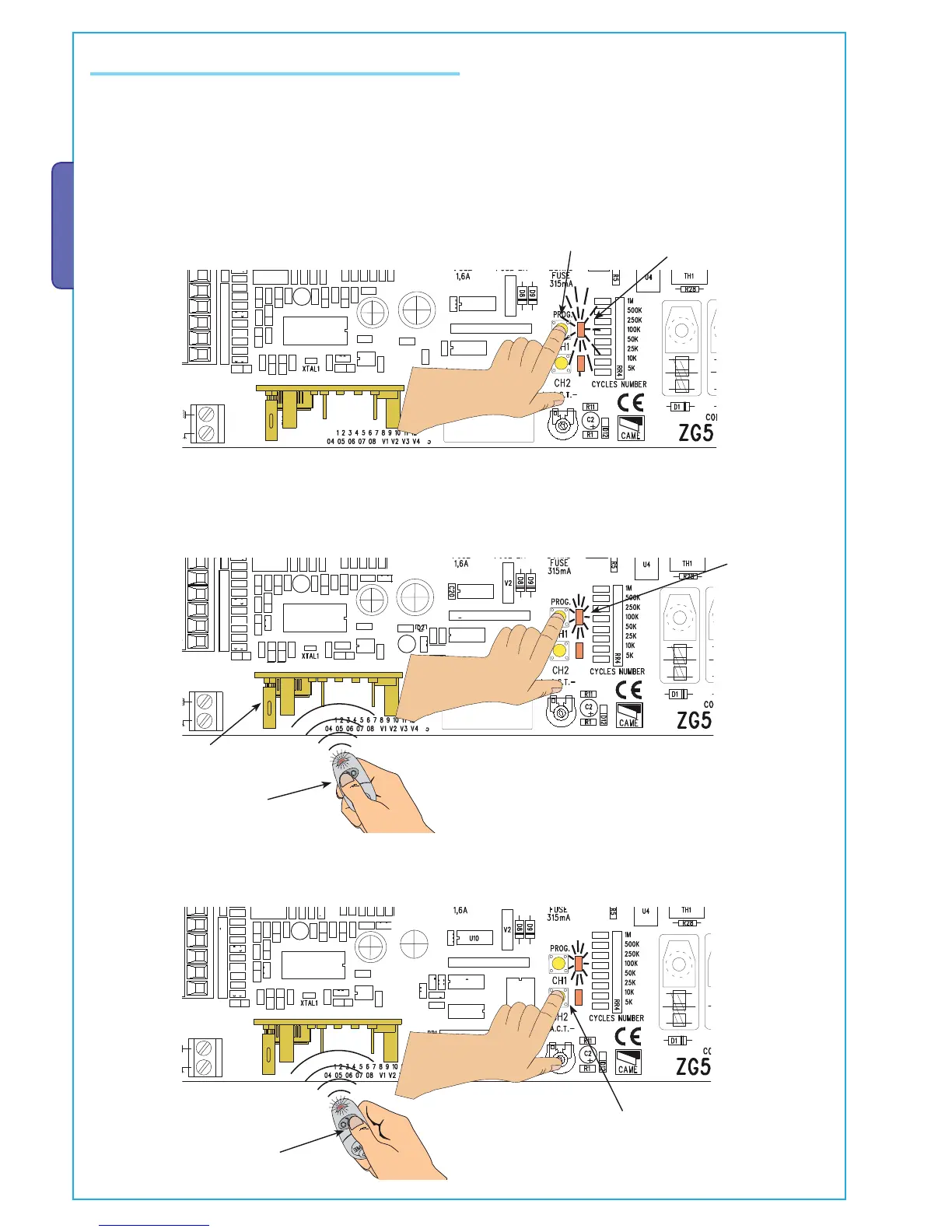

- Keep the “CH1” button on the electronic card pressed. The LED fl ashes.
- Press the transmitter button you wish to memorise. The LED will stay on to show memorisation has been successful.
LED flashing
Memorisation
CH1 = Channel for direct command to a function of the the gearmotor’s card, (“open only / “open-close” command, depending on
the choice made on DIP switch 2).
CH2 = Channel for direct commands with an accessory device (radio control with combined barrier connection or with bush).
- Repeat the points 1 and 2 procedures for the “CH2” button associating this to another button on the transmitter.
LED on
