CAME GARD 8 SERIES Installation Manual

400 mm
UNI6954 Ø3.9x19
Pag.
9
-
Manual code
:
119GU44
119 G U44 ver.
0.4
0.4 01/2012
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

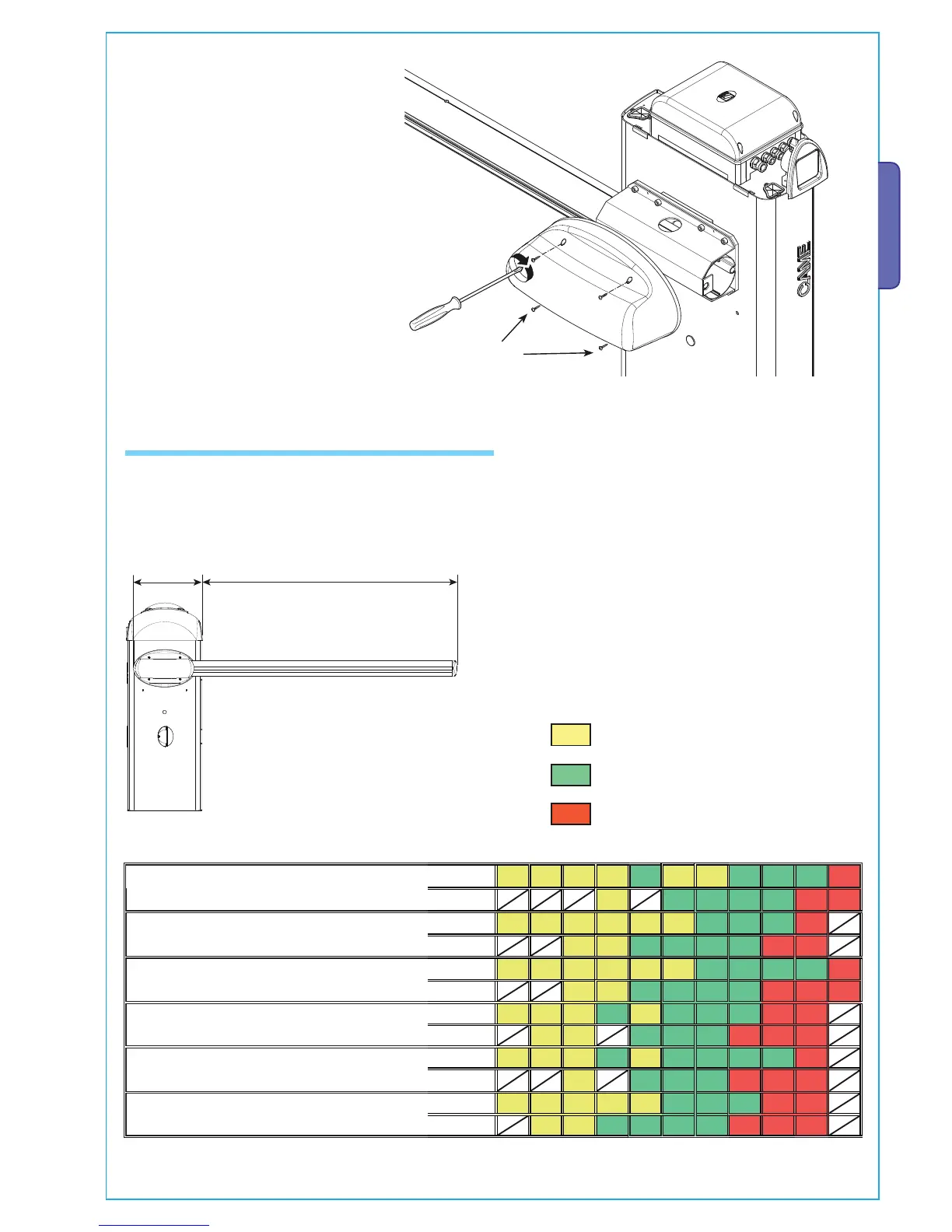

- Prior to bar balancing, select a suitable spring depending on the situation at
hand. See table below:
5.7 Bar balancing
PASSAGE CLEARANCE LAMP (max. 7.60 m)
SPRING TYPES
Spring G02040 Ø
e = 40 mm
Spring G04060 Ø
e = 50 mm
Spring G06080 Ø
e = 55 mm
- Tighten the anti-shearing protection cover
to the bar fitting with UNI6954 Ø3.9x19
screws.
* By Bare bar we mean a bar complete with the transparent slot cover and end plug.
Passage clearance lamp (m) 2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.6
Bare bar*
first spring
second spring
Bare bar* + mobile barrier support
first spring
second spring
Bare bar* + luminous cord
first spring
second spring
Bare bar* + luminous cord + mobile barrier sup-
port
first spring
second spring
Bare bar* + rack
first spring
second spring
Bare bar* + rack + luminous cord
first spring
second spring

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
