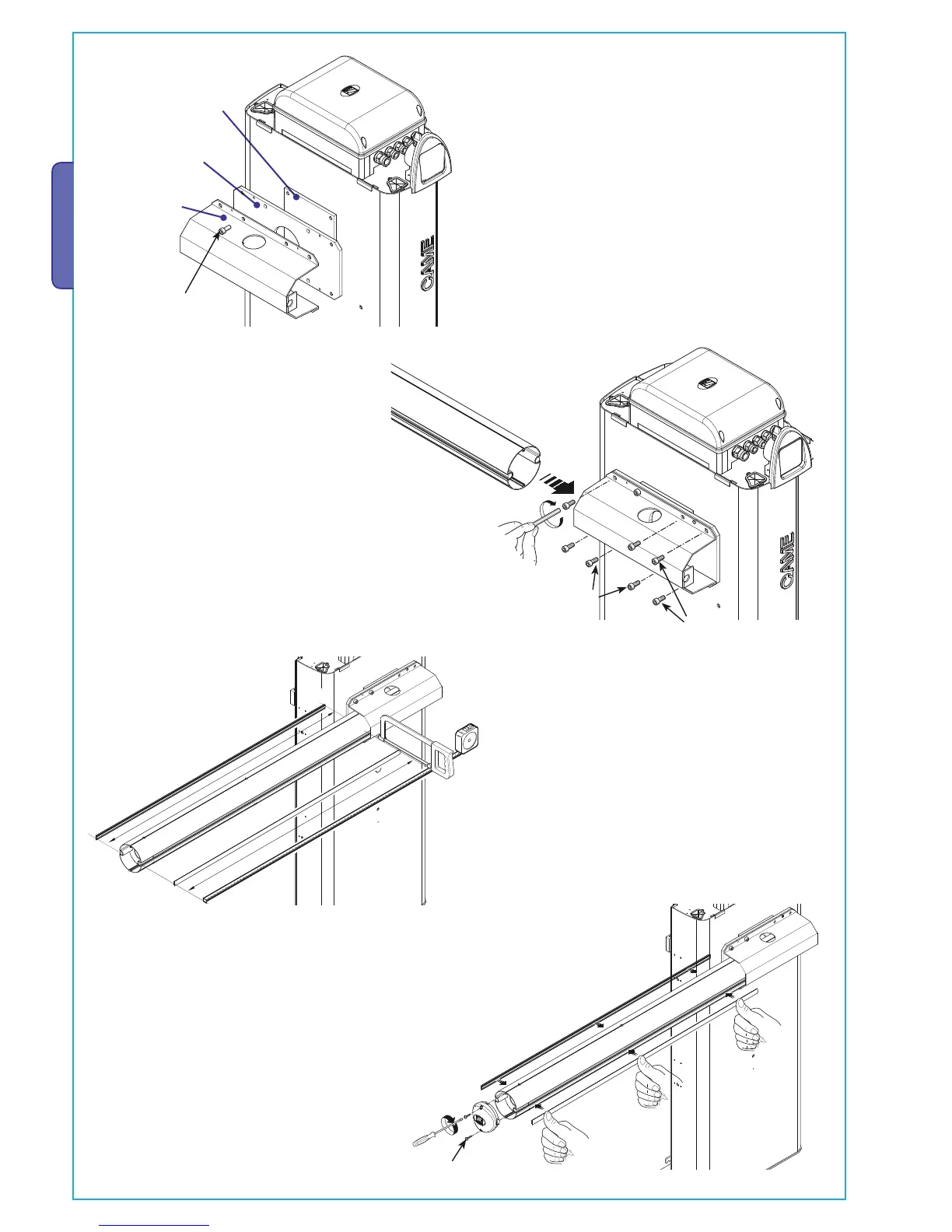

- Measure the length of the bar, cut the bar slot to the
same length.
- Position the middle plate between the fitting plate and the
bar-fitting cover, and put in one UNI 5931 M8x20 screw wi-
thout tightening it to facilitate bar assembly.
Bar beam plate
Bar fi tting intermediate
plate
Bar fi tting cover
- Insert it in the bar’s conduit, a procedure that should be carried
out on both sides.
Insert the shock-resistant profile and cut excess length. Lastly,
secure the bar end plug with the screws provided.
- Insert the bar in the fitting cover and secure it with
screws.
To Next Page
