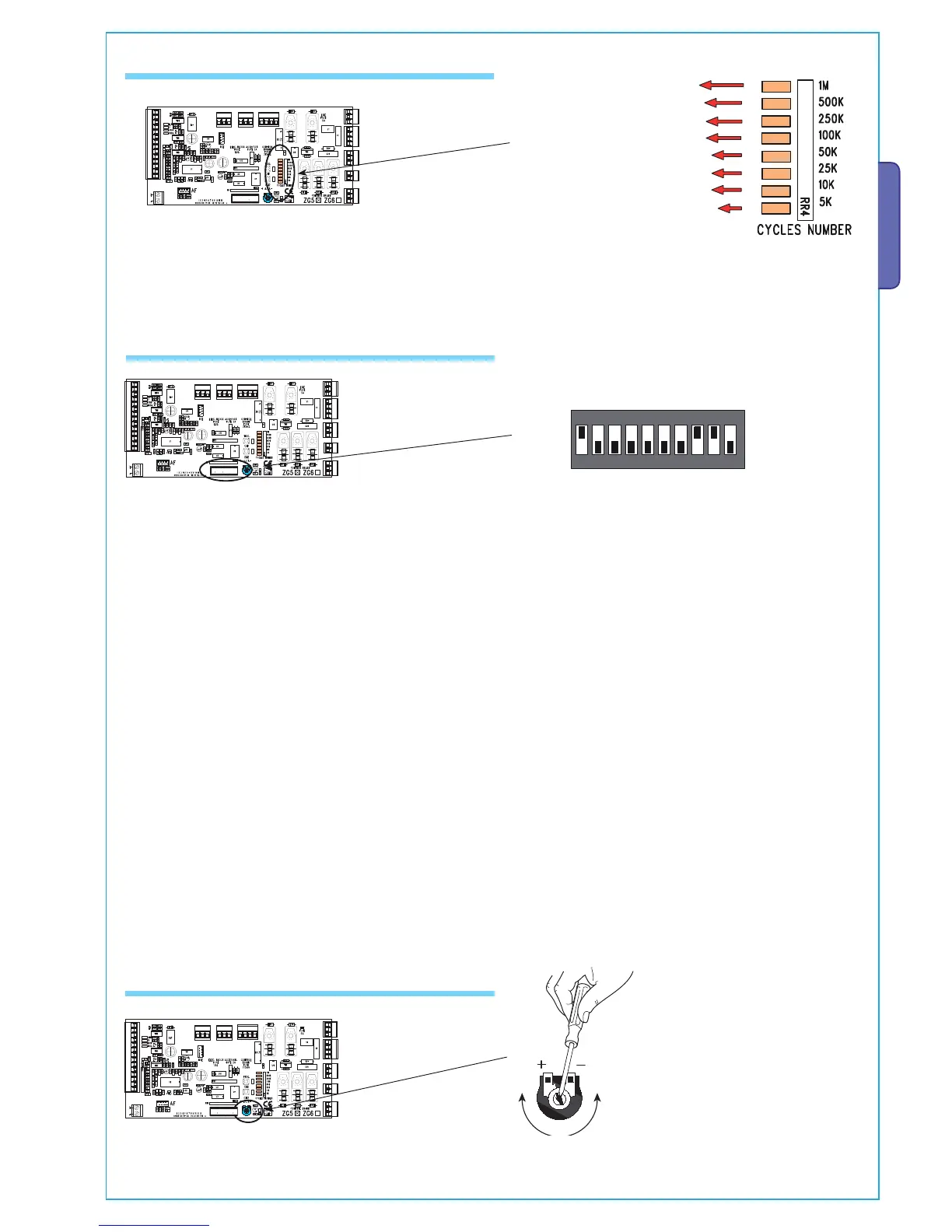

6.8 Settings
- «A.C.T.» Sets the waiting time while open. Once this time has elapsed, closing automatically takes place. The waiting time
may be set from 1 to 120 seconds.
6.6 Operation counter
Led n°1 = 5000 operation
Led n°2 = 10000 operation
Led n°3 = 25000 operation
Led n°4 = 50000 operation
Led n°5 = 100000 operation
Led n°6 = 250000 operation
Led n°7 = 500000 operation
Led n°8 = 1000000 operation
6.7 Function selector
Default Setting
Visual count of the number of gate runs through the 8 LEDs, to zero-set the count, set Dipswitch 1 to OFF (if it is set to ON) and
Dipswitch 3 to ON, press CH1 button and wait for all LEDs to turn o . Once zeroed out, reset Dipswitch 1 to ON (if selected) and
Dipswitch to OFF.
1 ON - Automatic Closing - The automatic closing timer activates at the end of the opening gate run. The pre-set time is adjustable,
and is in any case conditioned by the activation of any safety devices, and does not activate after a total safety “stop” or
during a blackout (1 OFF - deactivated);
2 OFF - "Open-close" function with [2-7] button and radio transmitter ((fi tted with inserted radiofrequency card).
2 ON - "Open only" function with radio transmitter ((fi tted with inserted radiofrequency card).
3 ON - Maintained Action – barrier works by keeping the button pressed, one button 2-3 for opening, and one 2-4 for closing
(this excludes functioning of the radio transmitter).
4 ON - Pre-fl ashing while opening and closing – Following an opening or closing command, the fl asher and/or luminous crown
connected on [10-E7-/10-E6], fl ashes for 5 seconds before beginning its action.
5 ON - Obstacle detected - When motor is stopped (bar closed or after a total stop command) it prevents any movement if safety
devices, such as photocells, detect any obstacles.
6 OFF - Total stop - This function stops the bar and consequently excludes any automatic closing cycle; to set in motion again, use
either the keypad or transmitter. Insert the safety device in [1-2]; If unused, set DIP switch to ON.
7 OFF - Opening during closing - If the photocells detect an obstacle during bar is closing, gate motion is inverted until fully opened;
connect the safety device to terminals [2-C1]; if unused, set DIP switch to ON;
8 ON - Functioning of the photocells’ safety test - Allows the card to check the efficiency of any safety devices (i.e. photocells)
after every opening or closing command; (8 OFF deactivated).
9 OFF - Encoder activated – to detect obstacles; (9 ON deactivated)
10 - If unused, set the DIP switch to OFF.
