CAME GARD 8 SERIES Installation Manual

#
#
CAME
CAME
CAME
CAME
6
11
10
7
8
9
1
2
3
5
4
12
1
2
3
4
6
7
5
11
8
10
9
14
13
12
Pag.
3
-
Manual code
:
119GU44
119 G U44 ver.
0.4
0.4 01/2012
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
4.2 Technical information
GEARMOTOR
Power supply: 230V A.C. 50/60Hz
Motor power supply: 230V A.C. 50/60Hz
Max. absorption: 2.8A
Condenser: 35μF
Rated power: 330W
Max. torque: 250 Nm
Reduction ratio: 1/202
Opening time:  s
Operative intermittence: 30%
Protection level: IP54
Weight: 91 kg
Insulation class: I

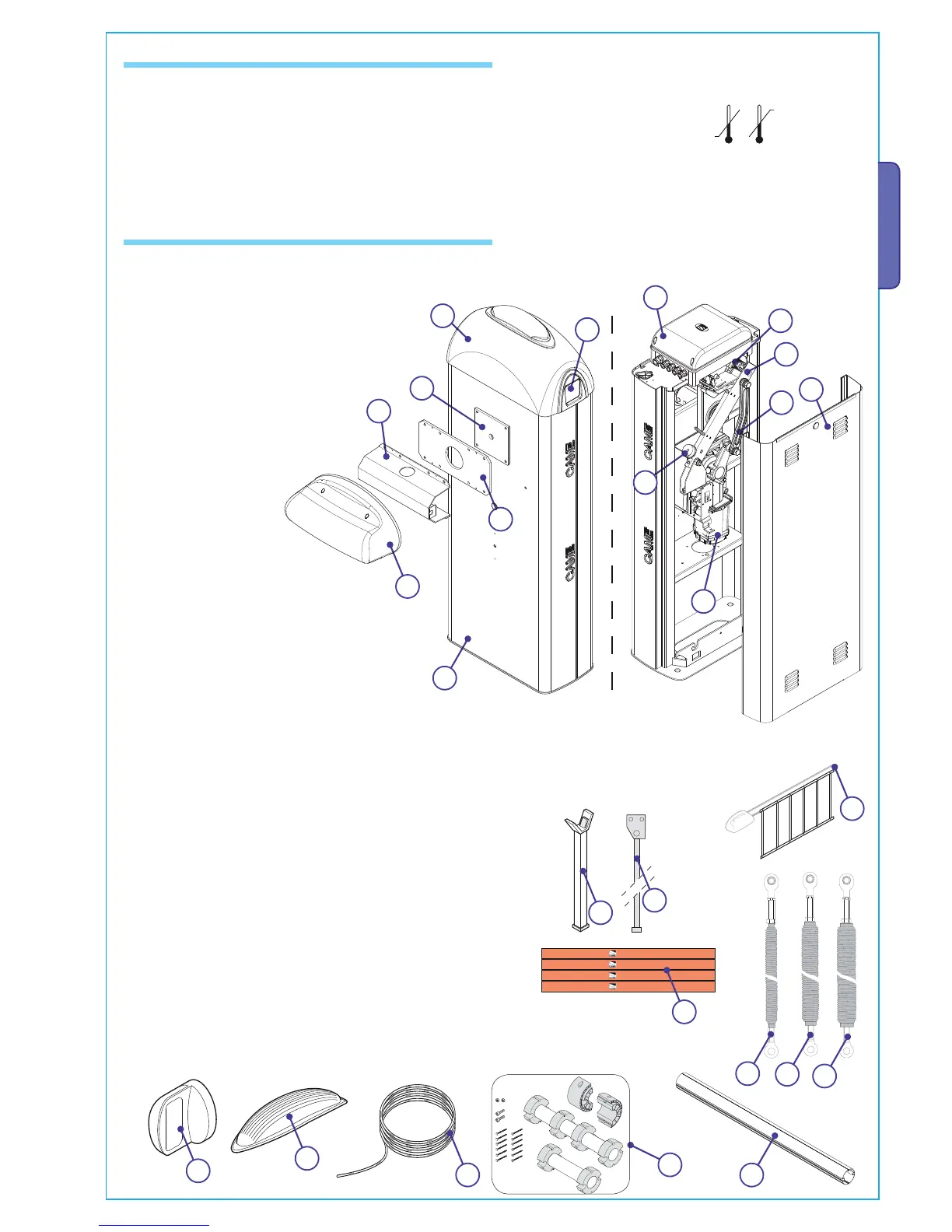

4.3 Parts description
AUTOMATION UNIT
VIEW FROM THE BAR
SUPPORT BRACKET
VIEW FROM IN-
SPECTION HATCH
ACCESSORIES
1) G02000/G04000 - Aluminium bar, painted white, Ø 100 mm
2) G02040 - Ø40 (yellow) balancing spring
3) G04060 - Ø50 (green) balancing spring
4) G06080 - Ø55 (red) balancing spring
5) G02806 - Rack
6) G02802 - Support for DIR photoelectric cells
7) G028401 - Luminous cord
8) G02807 - Fixed barrier support
9) G02808 - Mobile barrier support
10) G02809 - Adhesive reflector strips
11) G02801 - Flashing dome lamp
12) G06803 - Telescopic joint and additional insert to attach the
bar.11 -
1) Upper dome
2) Bar beam plate
3) Bar fitting intermediate plate
4) Cover for aluminium bar
5) Anti-shearing protection cover
6) Galvanized steel cabinet
7) Features for housing accessories
8) End-stop assembly
9) Lever arm
10) Transmission rod
11) Inspection hatch
12) Bar position adjustment
bu ers
13) Gearmotor
14) Control panel

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
