CAME ZR24N User Manual

W V U
p. 10 - Manual FA00943-EN - 01/2018 - © CAME S.p.A. - Translation of the original instructions

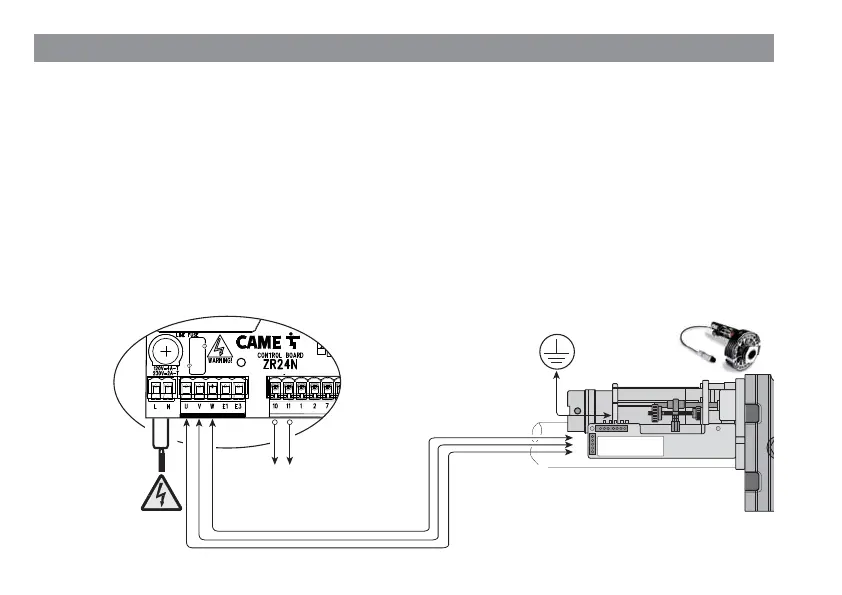

Connecting
up the gearmotor
230 V AC
50/60 Hz
Accessories power-supply output
24 V AC
Perform the electrical connections in compliance with current provisions of law and use suitable cable glands.
⚠ Use a cable gland only for the 230 V AC power supply cable.
⚠Connect the system's protective grounding to the motor's ground terminal.
⚠Use electrical bands or tape to keep separate the 230 V ac cables from the VERY-LOW tension ones.
⚠The electrical cables must not touch any parts that may overheat during use (such as the motor).
ELECTRICAL CONNECTIONS
