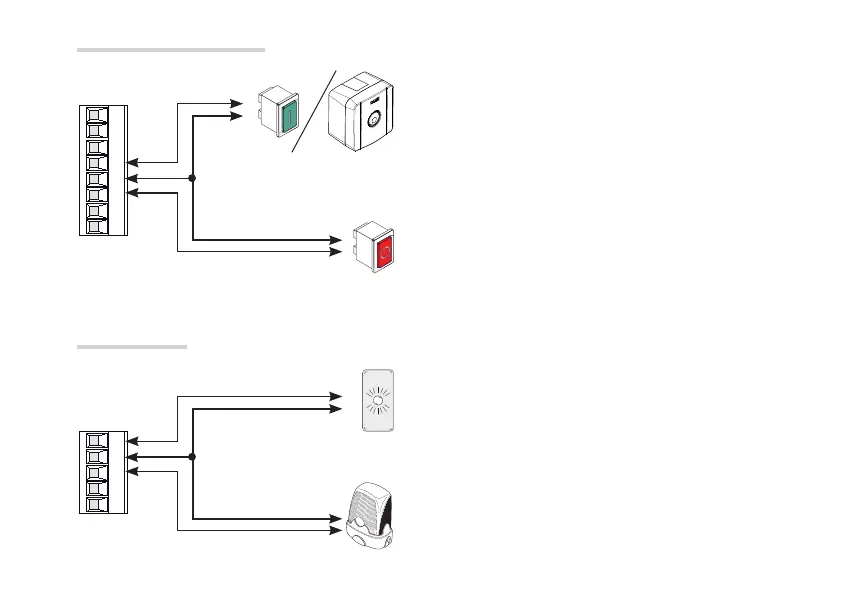

Command and control devices
STOP button (NC contact). For stopping the shutter while excluding
the automatic closing. To resume movement press the control
button or use another control device.
 I
F UNUSED, SHORT-CIRCUIT CONTACT (1-2).
OPEN - CLOSE - INVERT function (step-step) from control device
(NO contact). Alternatively, by setting DIP-switch 2 to ON, you can
activate the OPEN-STOP-CLOSE-STOP sequential command.
Signaling devices
Flashing light (contact rated for: 230 V AC – max 25 W).
It fl ashes when the shutter is opening and closing.
Courtesy light.
It stays on for 180 seconds at the end of each maneuver.
(contact rated for: 230 V AC – max 25 W).
