III. NAMES OF PARTS
A. External view
Pickup Assembly
[1] Pickup roller
[2] Lifter
[3] Separation pad
[4] Separation roller
[5] Registration roller

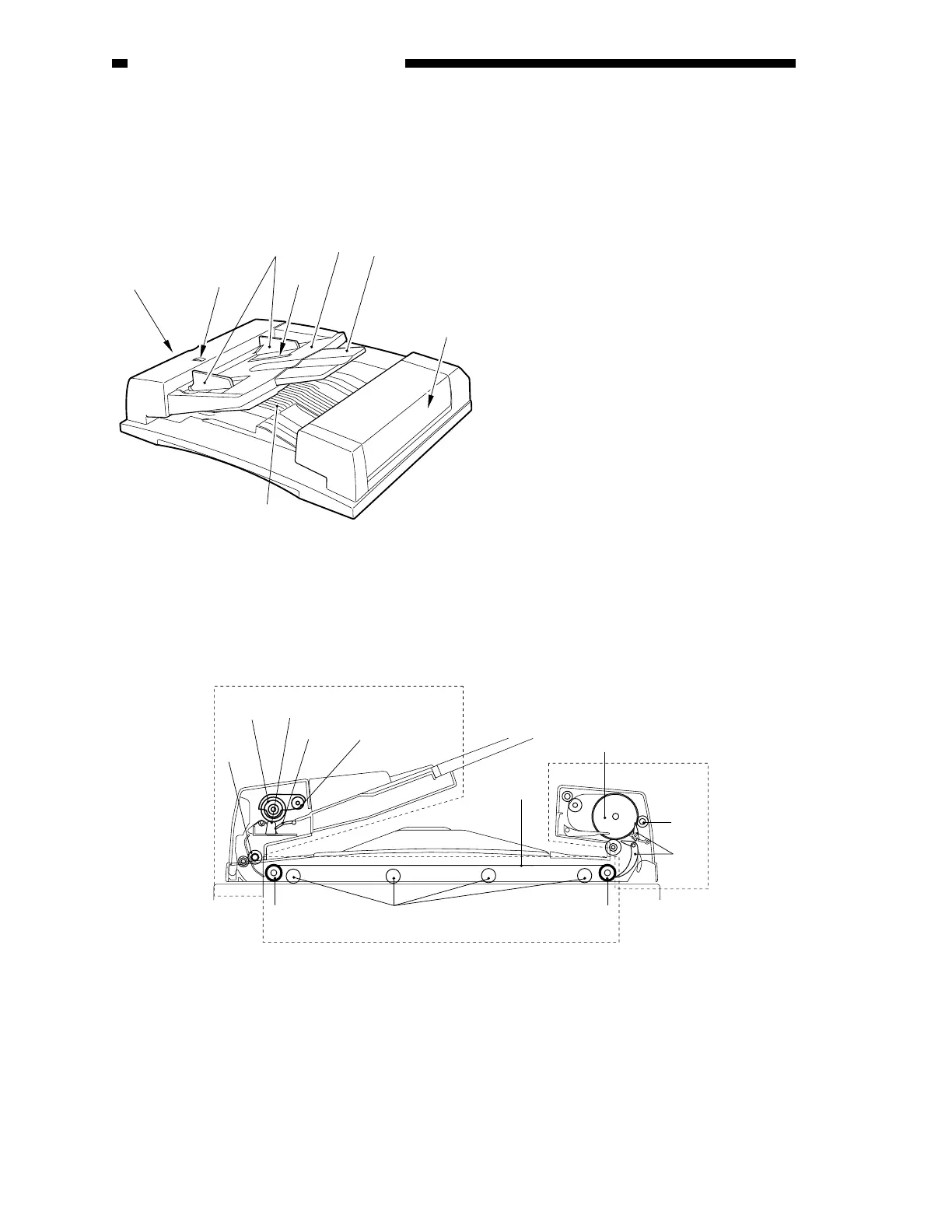

Figure 1-301
B. Cross Section
[1] Original tray
[2] Auxiliary tray
[3] Slide guides
[4] Original Set indicator
[5] Last original sensor
[6] Pickup unit cover
[7] Reversal delivery unit cover
[8] Original delivery tray
Feeding Assembly
[6] Feeding belt
[7] Feeding belt drive roller
[8] Retaining roll
[9] Feeding belt linkage roller
Reversal Delivery Assembly
[10] Reversal delivery flapper
[11] Reversal delivery
registration roller
[12] Reversing roller
Figure 1-302
[
1
][
3
]
[
4
]
[
7
]
[
8
]
[
6
]
[
5
]
[
2
]
[
4
]
[
1
]
[
7
] [
8
] [
9
]
[
10
]
[
11
]
[
6
]
[
12
]
[
2
]
[
3
]
[
5
]
Pickup assembly
Feeding assembly
Reversal
delivery
assembly
