Canon DADF-B1 - Replacing the Feed Belt

CHAPTER 3 MECHANICAL SYSTEM
3-16
COPYRIGHT © 1999 CANON INC. CANON DADF-B1 REV.0 APR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

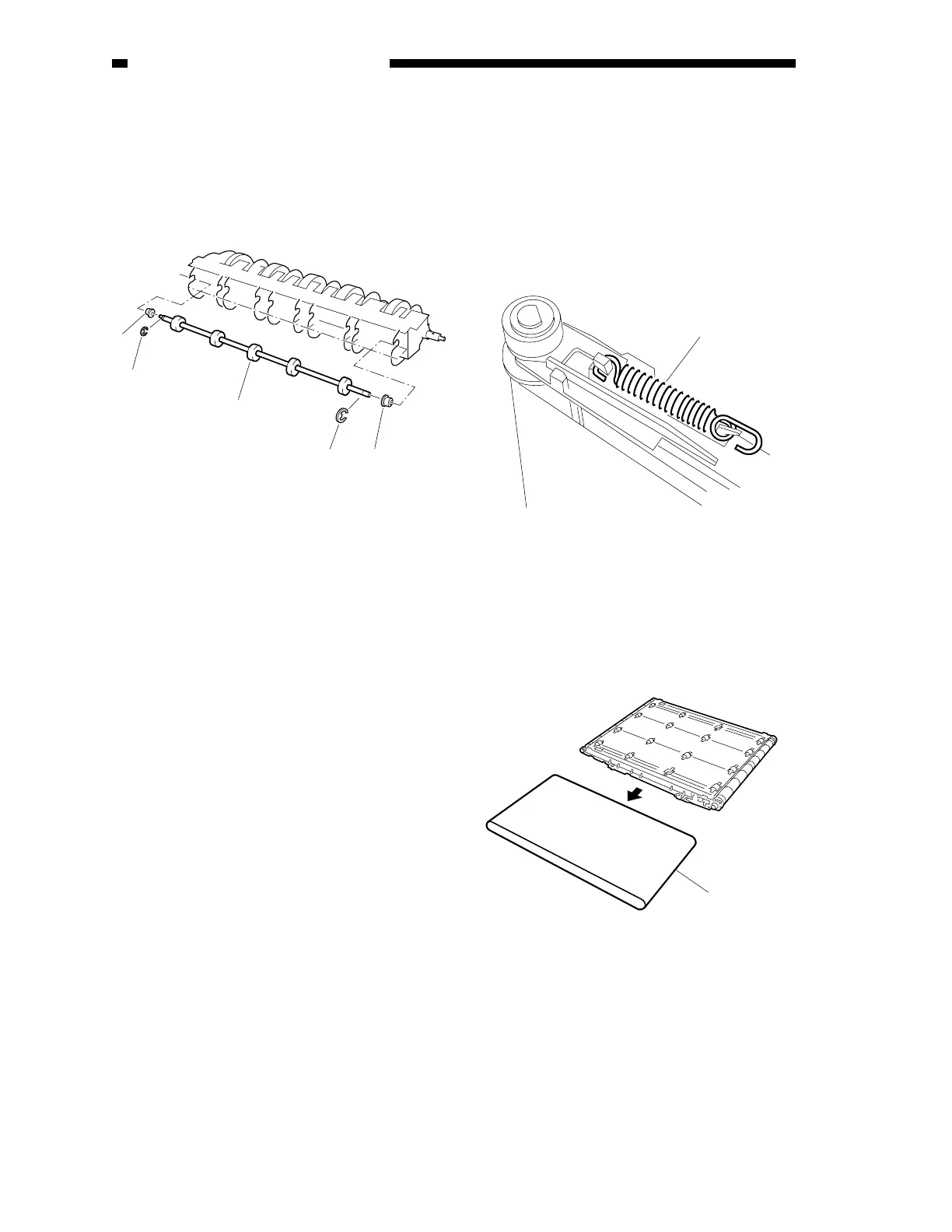

9) Remove the E-rings [17] and [18] used to
keep the shaft of the feeding roller in place.
10) Remove the bushings [19] and [20] from
both ends, and detach the feeding roller
[21].
F. Replacing the Feed Belt
1) Remove the feed belt unit. (See B.
“Removing the Feed Belt Unit” under I.
“Basic Construction.”)
2) Remove the two springs [1] from both
ends of the feed belt unit.
Figure 3-315
Figure 3-316
3) Pull out the feed belt [2].
Figure 3-317
[19]
[17]
[21]
[18] [20]
[1]
[2]
