D. Moving Originals
1. Outline
The drive of the feed motor (M2) is used to rotate the registration roller and the feed belt drive
roller, thereby moving originals.
Originals are moved in normal or reverse direction according to the size of the original (small,
large) and operating mode (single-sided, double-sided).

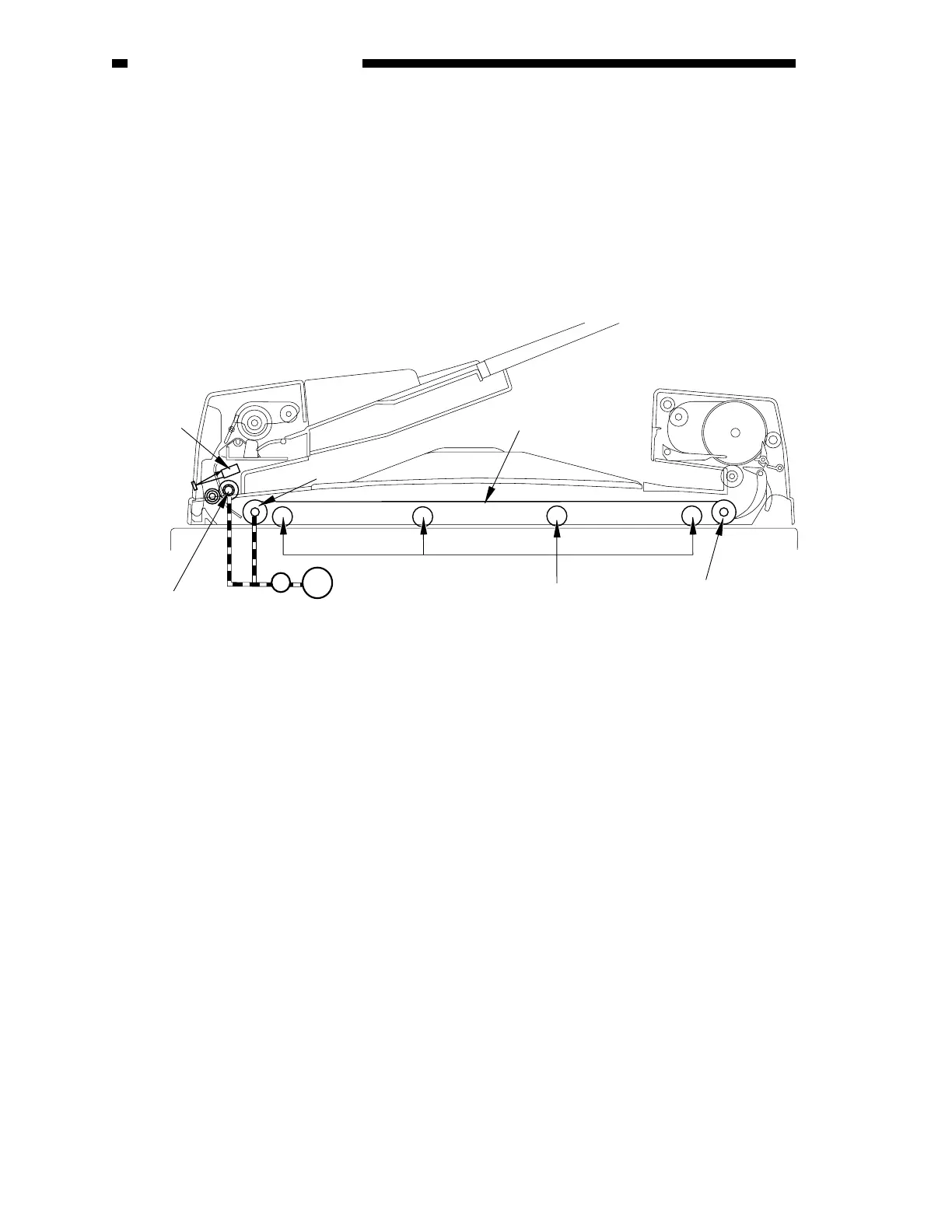

Pre-registration
sensor
Registration roller
Feed belt drive roller
Feed belt link roller
Feed motor
Feed motor brake
Feed belt
Retaining roll
M2
BK
Figure 2-221
