CHAPTER 3 MECHANICAL SYSTEM
C. Removing the Feed Motor (M2)
1) Remove the harness guide. (See Figure 3-
202.)
2) Remove the three mounting screws [2],
and detach the motor unit [1] of the pickup
assembly.

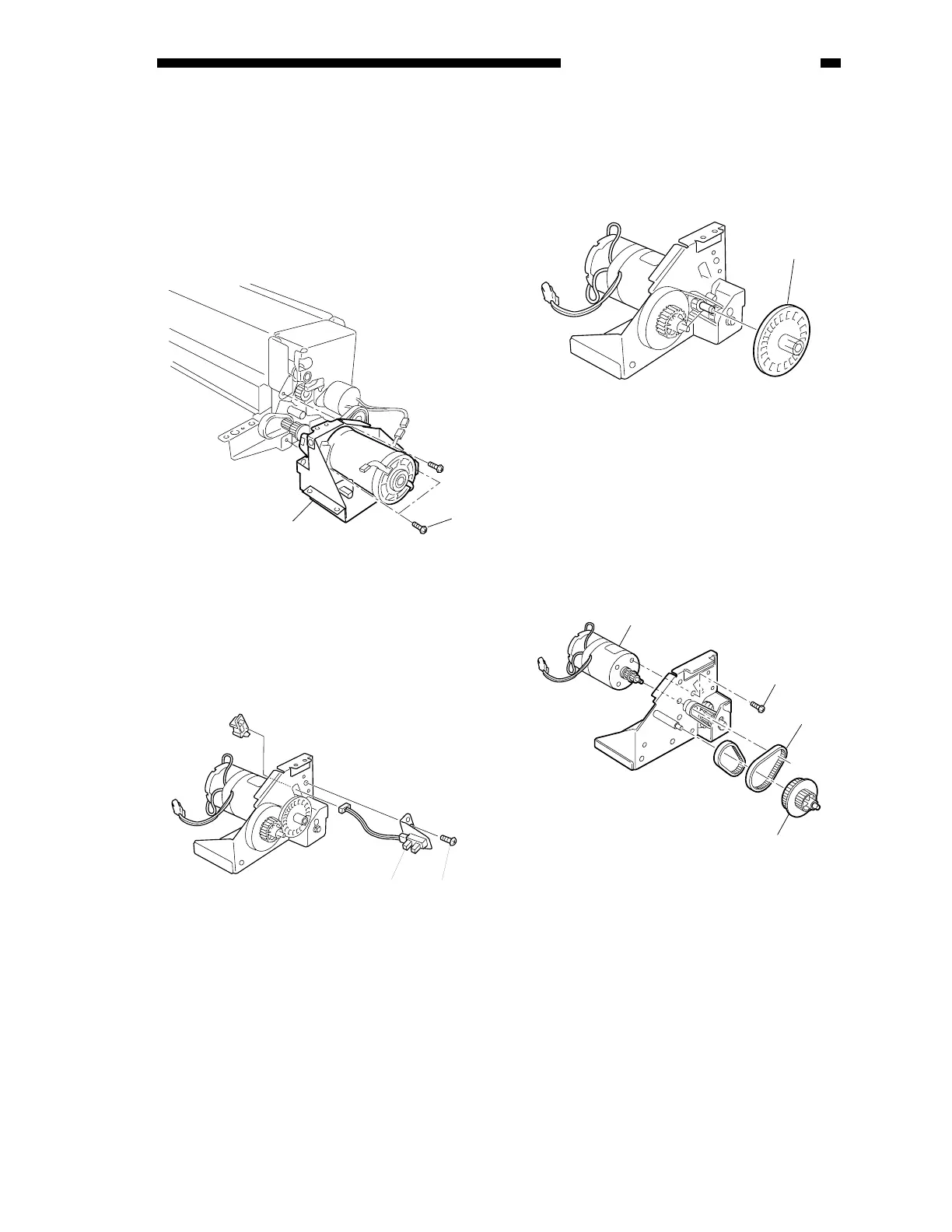

figure 3-204
3) Remove the mounting screw [4], and
detach the feed motor clock sensor [3].
Figure 3-205
4) Remove the encoder plate [5] of the feed
motor while opening the claw used to keep
it in place.
Figure 3-206
5) Detach the timing belt [9] of the feed
motor, and detach the relay gear [6].
6) Remove the four mounting screws [8], and
detach the feed motor [7].
Figure 3-207
[2]
[1]
[3]
[4]
[5]
[6]
[8]
[7]
[9]
