Canon DADF-B1 - Removing the Separation Roller; Roller

COPYRIGHT © 1999 CANON INC. CANON DADF-B1 REV.0 APR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-11
CHAPTER 3 MECHANICAL SYSTEM

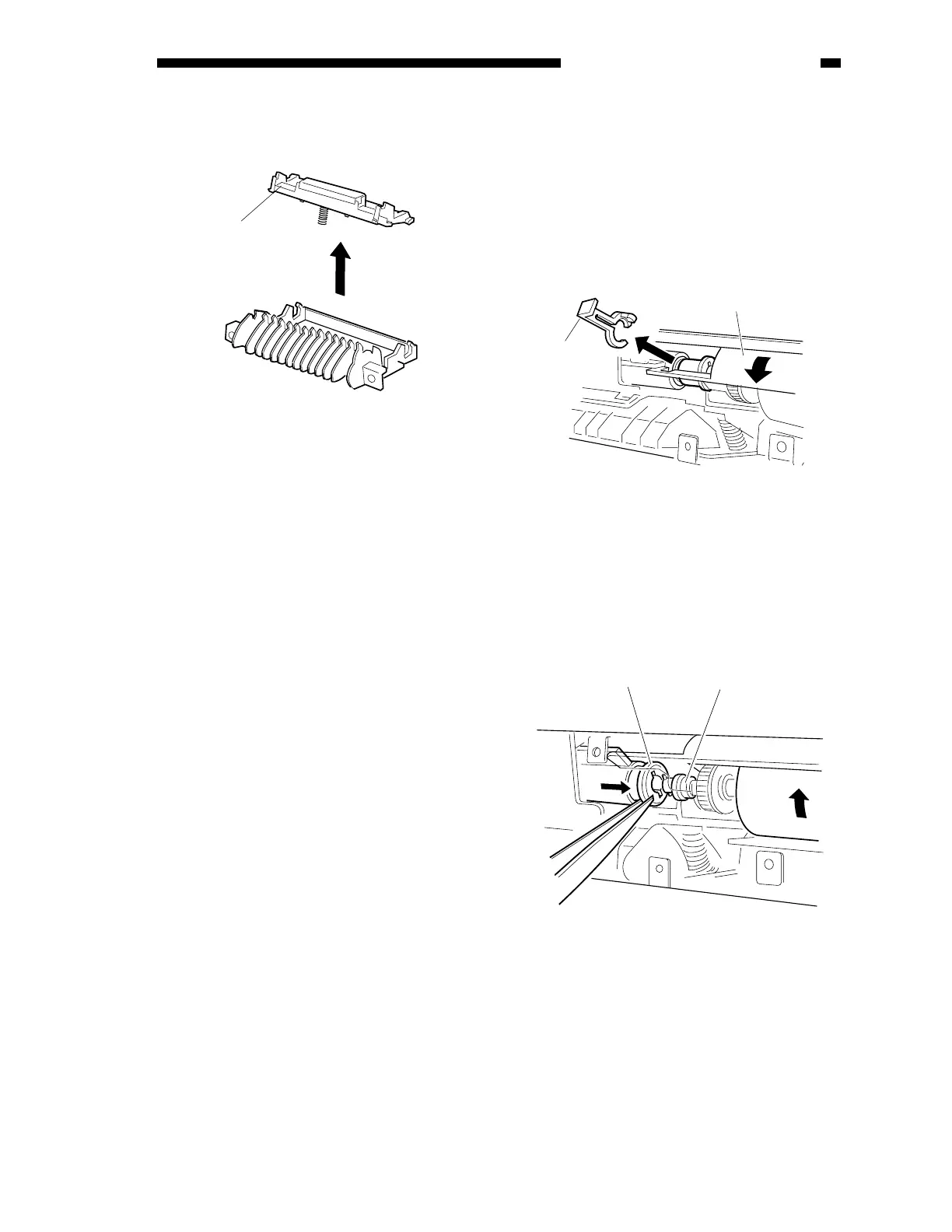

8) Remove the separation pad [6].
B. Removing the Separation
Roller
1) Remove the separation pad assembly.
2) Move down the separation roller holder
[1], and pull off the stopper [2] as shown.
Figure 3-302-2
Figure 3-303
3) Move the separation roller coupling [3]
and the separation bushing [4] to the left
with tweezers.
Figure 3-303-1
[6]
[2]
[1]
[4]
[3]
9) After mounting the separation pad, be sure
to shift bits 3 and 6 of the DIP switch to
ON, and press the push switch (lifter
descent mode; in about 3 sec, the lifter will
move down and stop automatically).
