B. Detecting an Original
1. Outline
The ADF is equipped with the following
three types of original detecting mechanisms:
a. Detecting the Presence/Absence of
an Original
It detects the presence/absence of an
original on the original tray.
b. Identifying the Size of an Original
It identifies the length (feeding direction)
and width of an original.
c. Detecting the Last Original
It detects the trailing edge of the last
original.
a. Detecting the Presence/Absence of
an Original
The presence/absence of an original on the
original tray is detected by the original set
sensor. When an original is placed on the
original tray, the light from the light-emitting
side of the original set sensor is blocked, and
the light-receiving side of the original set
sensor starts to send the original detection
signal (EMP) to the ADF controller PCB.
In response, the ADF controller PCB
generates the original set indicator ON signal
(OGLED) to turn not the Original Set indicator
(U507).
U503
U507
Prism
Original Set sensor Original
Original set indicator ON signal (OGLED) Original tray paper detection signal (EMP)
ADF controller PCB
Original Set indictor
LED

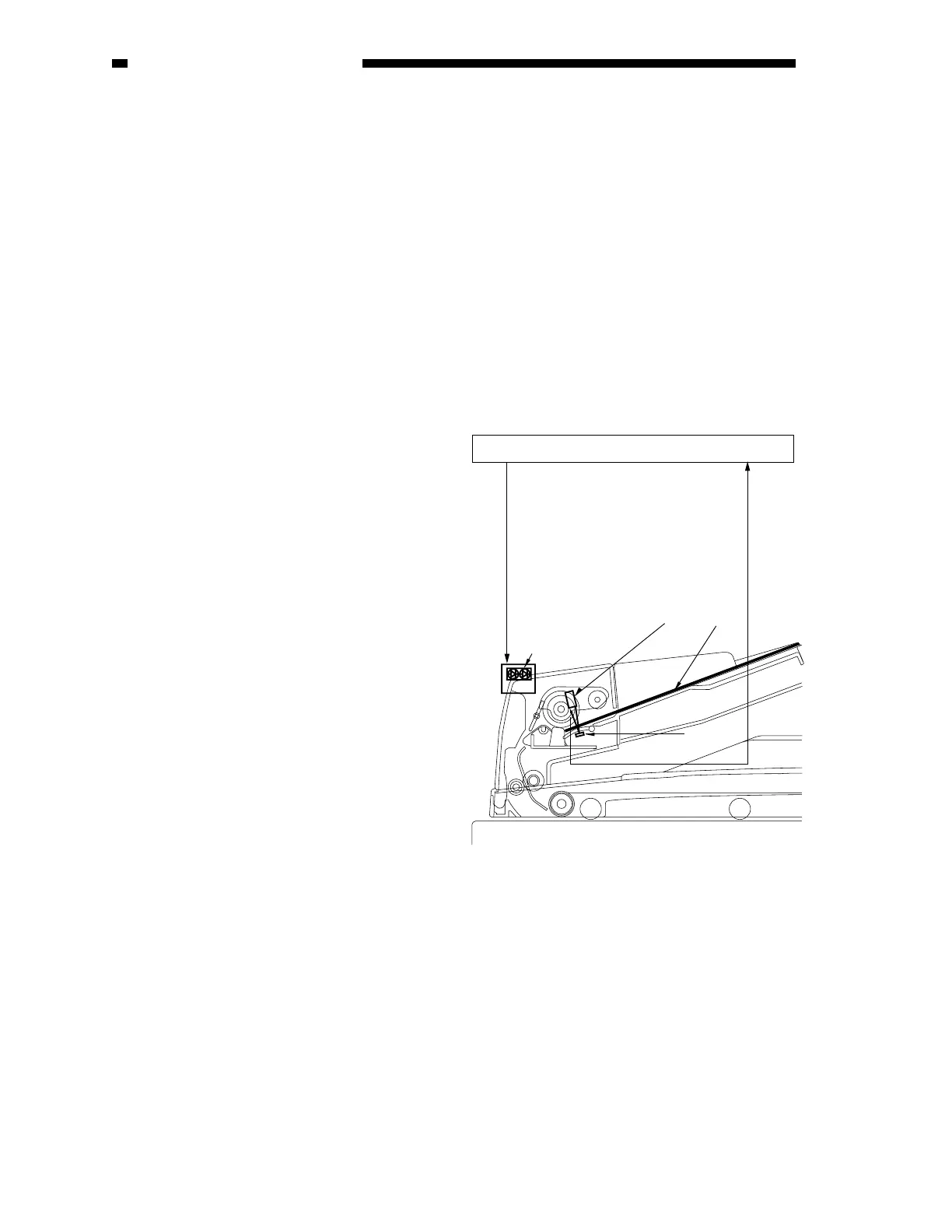

Figure 2-202
