COPYRIGHT © 1999 CANON INC. CANON DADF-B1 REV.0 APR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-15
CHAPTER 3 MECHANICAL SYSTEM

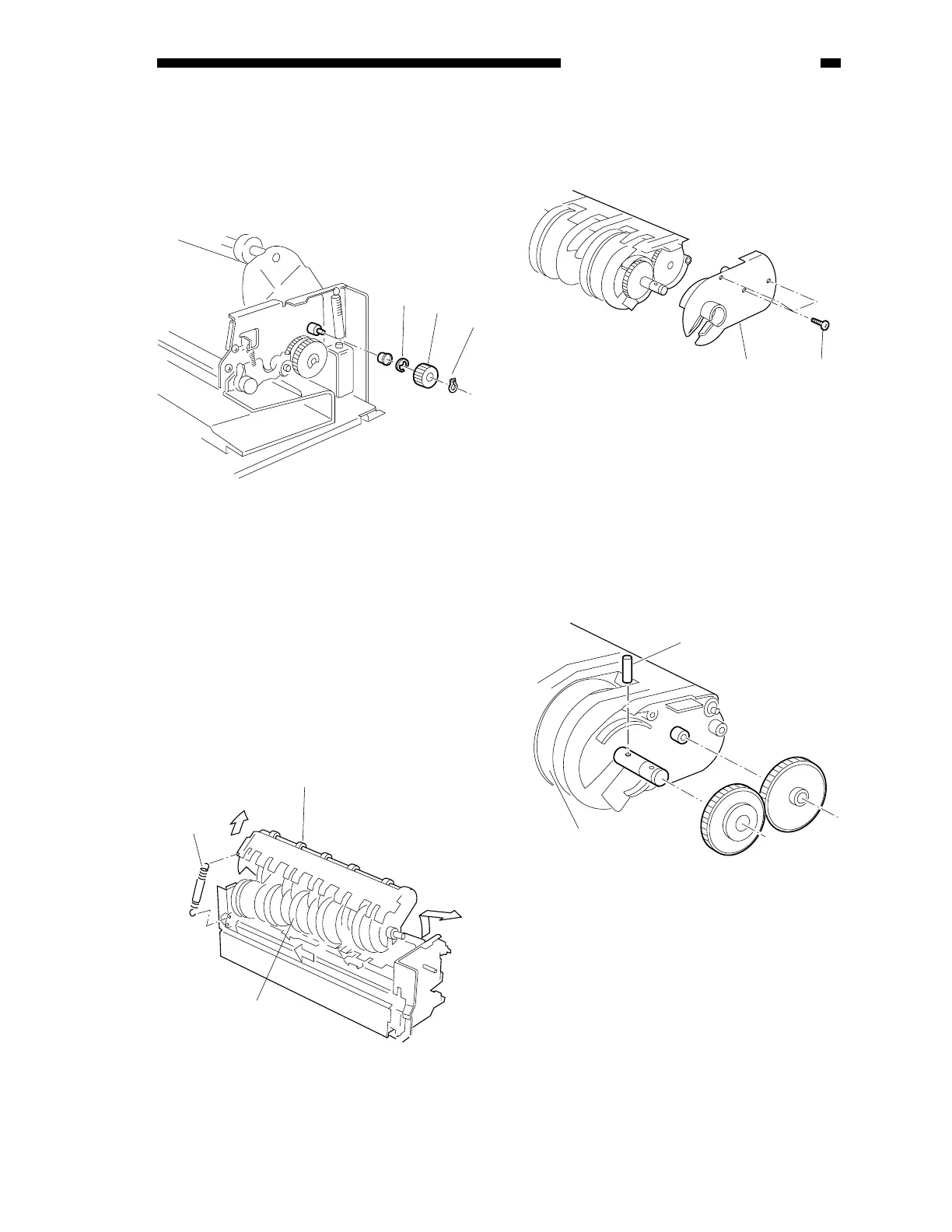

4) Remove the grip ring [7] used to keep the
gear in place. Remove the gear [9], and
remove the E-ring [8] used to keep the
shaft in place.
Figure 3-311
5) Remove the spring [10] of the middle
guide.
6) While lifting the middle guide unit [11],
shift the reversing roller [12] together with
its shaft in the direction of the arrow to
detach.
figure 3-312
7) Remove the three mounting screws [14],
and detach the gear cover [13].
Figure 3-313
8) Pull off the shaft pin from the shaft of the
reversing roller, and detach the reversing
roller [16].
Figure 3-314
[8]
[9]
[7]
[10]
[12]
[11]
[13] [14]
[15]
[16]
