CHAPTER 2 BASIC OPERATION
2-34
COPYRIGHT © 1999 CANON INC. CANON DADF-B1 REV.0 APR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

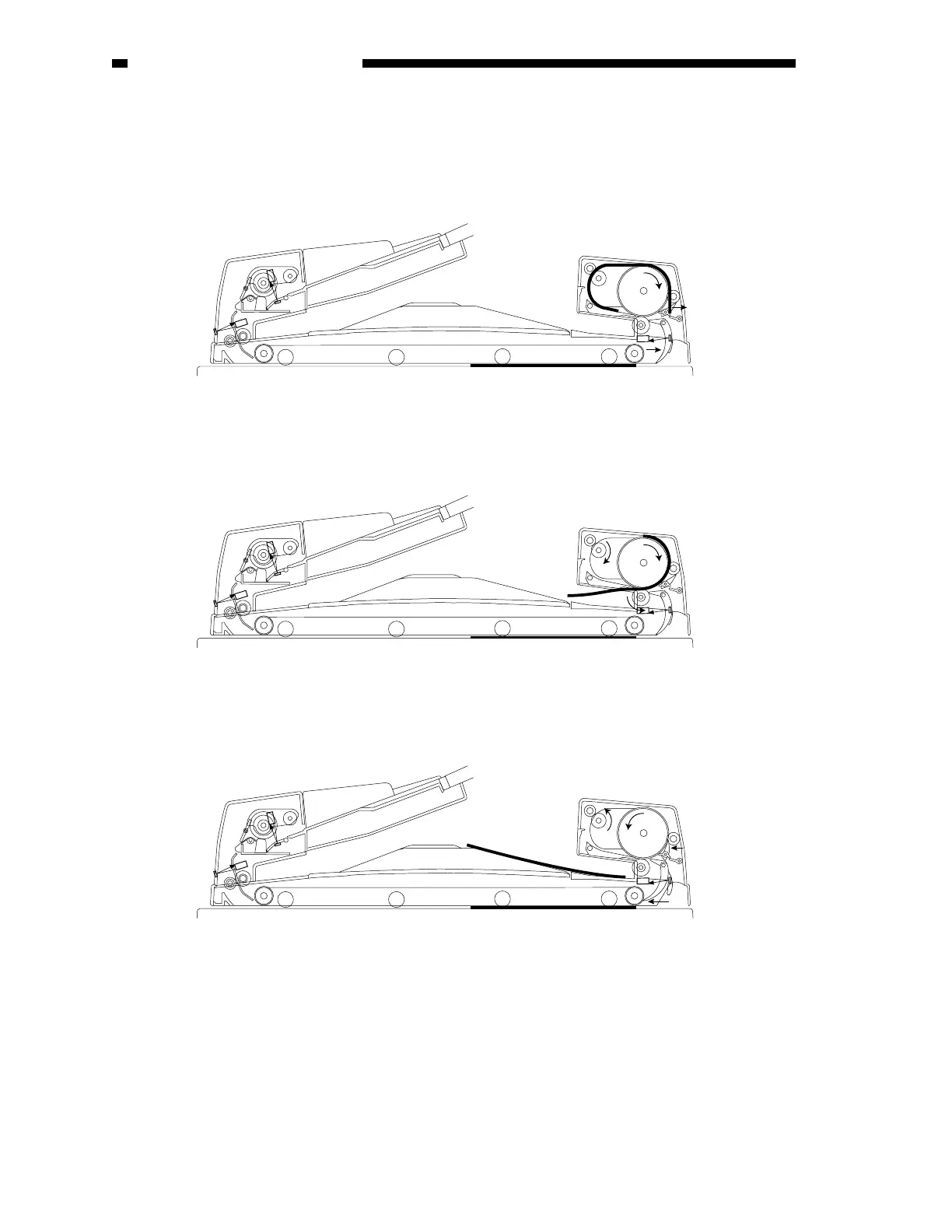

7. When the reversal delivery registration sensor (SR5) detects the leading edge of the original
(OFF), the reversal delivery motor (M3) moves the original over a specific distance (to the
switch-back position), stops, and starts to rotate counterclockwise.
When the reversal delivery motor rotates counterclockwise, the reversal delivery flapper opens to
switch the paper path.
Figure 2-253
8. The reversal delivery motor (M3) rotates counterclockwise so that the first original is sent to the
delivery tray. The reversal delivery motor starts to slow down when the delivery sensor (SR5)
detects the trailing edge of the original (OFF).
Figure 2-254
9. The reversal delivery motor (M3) stops when the original reaches the delivery tray. The reversal
delivery motor then stops, and then starts to rotate clockwise for a limited time so that the reversal
delivery flapper closes.
Figure 2-255
