COPYRIGHT © 1999 CANON INC. CANON DADF-B1 REV.0 APR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
2-41
CHAPTER 2 BASIC OPERATION

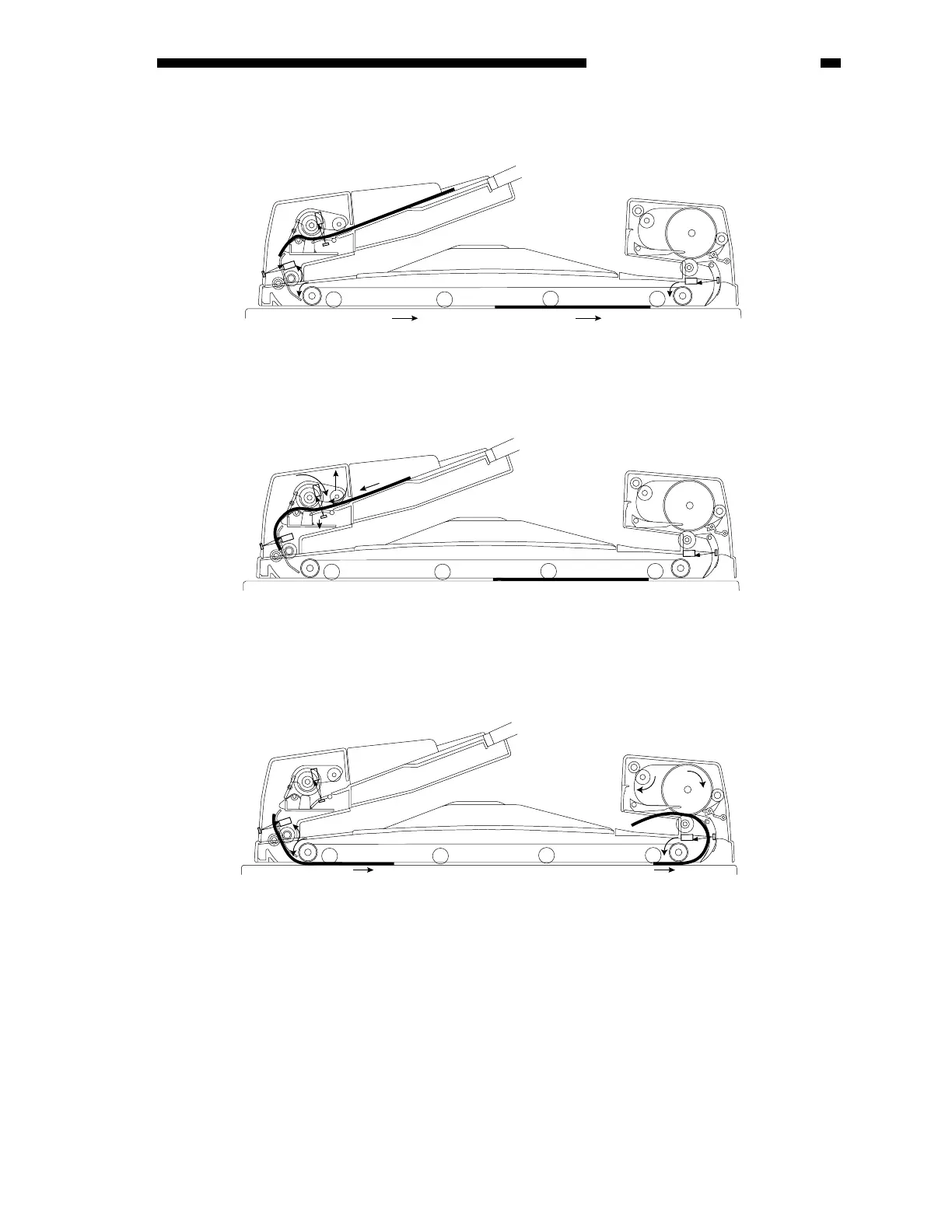

10. When scanning ends and separation of the 2nd original starts, the feed motor (M2) starts to rotate
clockwise, moving the 1st original to the right side.
Figure 2-274
11. When the feed motor stops, the separation motor (M1) rotates clockwise to separate the original.
When the pre-registration sensor (U502) detects the leading edge of the original (ON), the
separation motor stops.
Figure 2-275
12. After the separation motor stops, the feed motor (M2) starts to rotate clockwise while the reversal
delivery motor (M3) starts to rotate counterclockwise.
The first original is moved to the delivery tray, and the next original is moved to the copyboard
glass.
Figure 2-276
To Next Page
