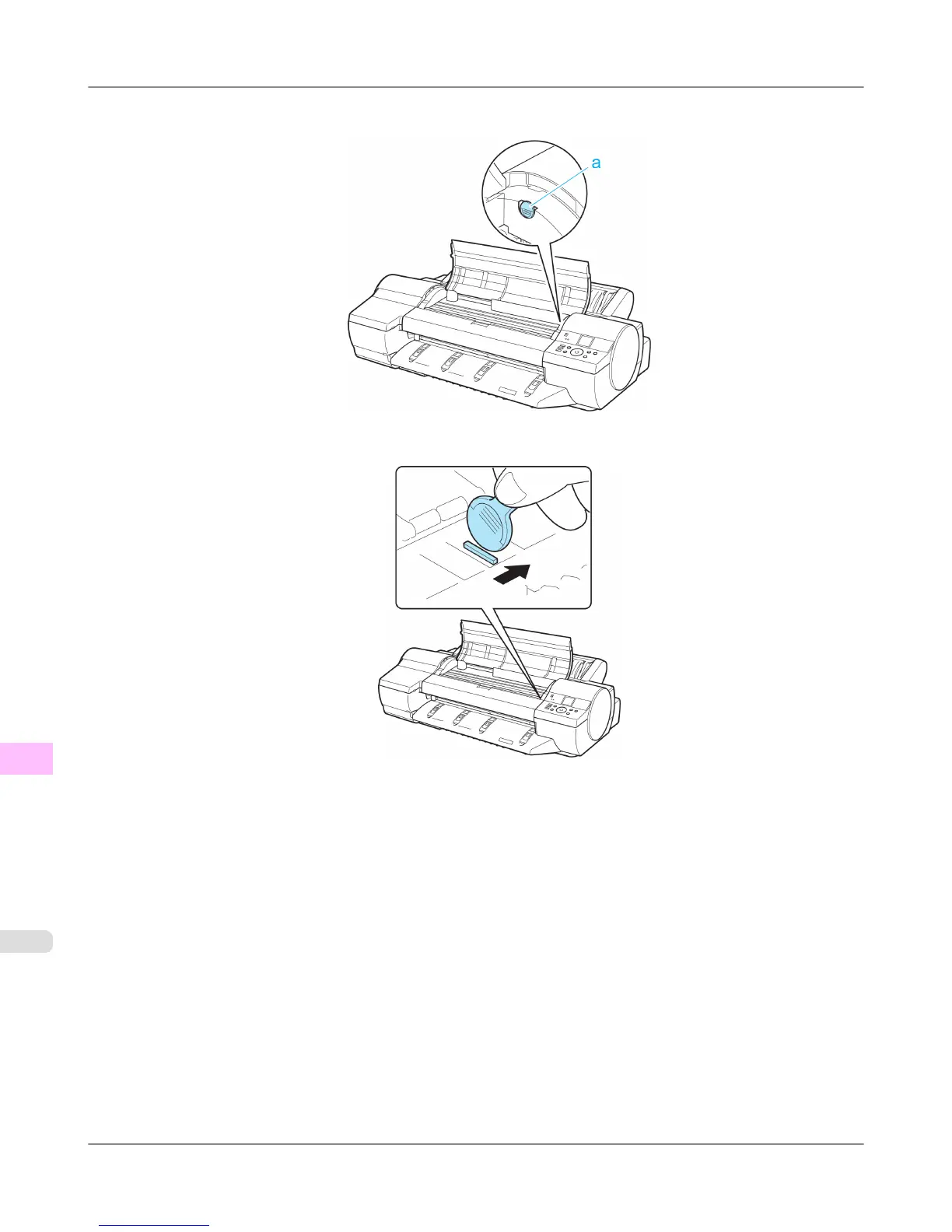

3. Remove the Cleaning Brush (a).

4. Using the back of the Cleaning Brush, move the first Switch to the side opposite ●.

Troubleshooting

Problems with the printing quality

Setting the Blue Switch on the Platen iPF6300S

1034
