Printer parts
Front ................................................................................................................................................................ 875
Back ................................................................................................................................................................ 876
Top Cover (Inside) ........................................................................................................................................... 877
Paper Feed Slots ............................................................................................................................................. 878
Inside the Roll Feed Unit Cover ...................................................................................................................... 879
Carriage ........................................................................................................................................................... 880
Ink Tank Cover (Inside) ................................................................................................................................... 880
Vents ............................................................................................................................................................... 882

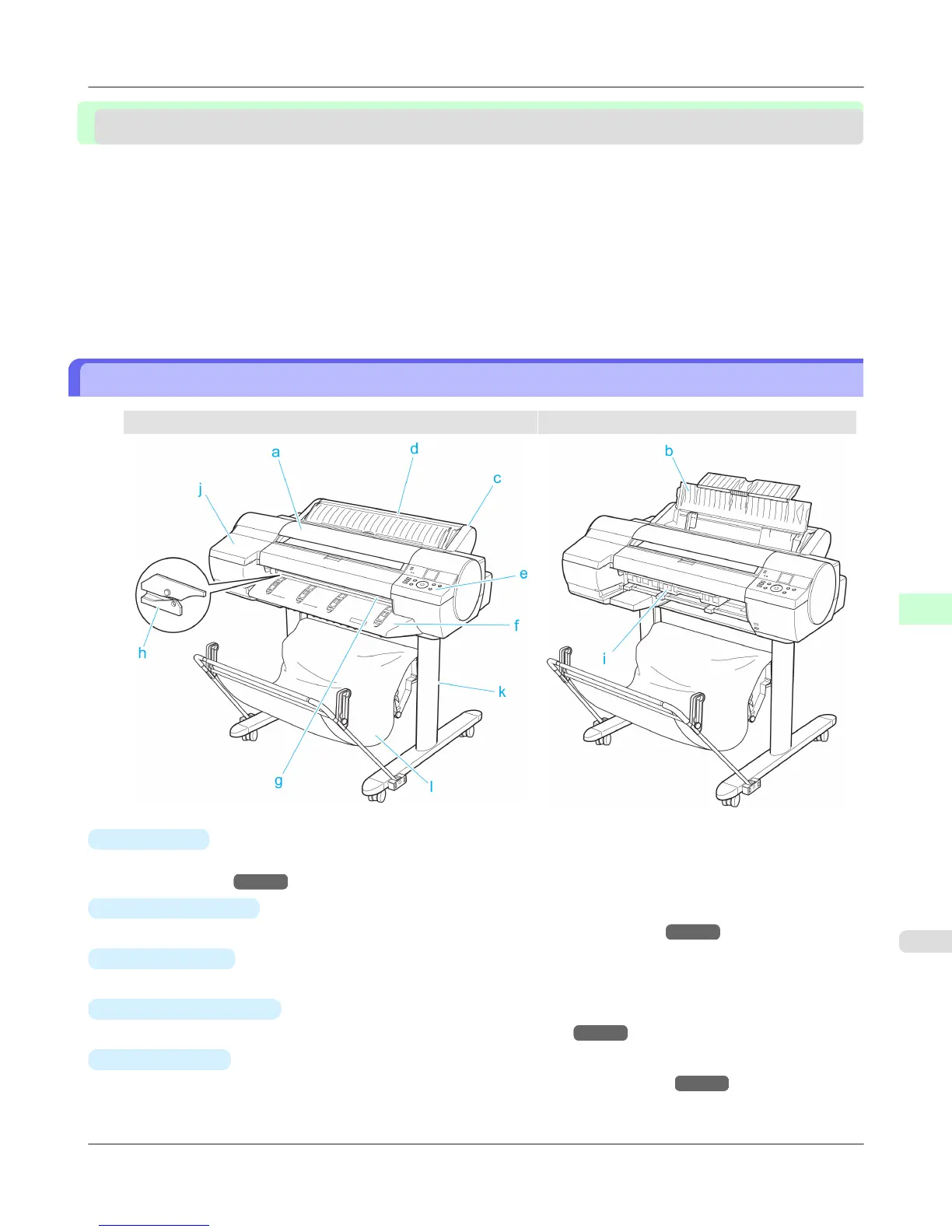

Front
Standard With the Ejection Guide removed
a.
Top Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed. (See "Top
Cover (Inside).") →P.877
b.
Paper Tray Cover
Open this cover to load a sheet in the Top Paper Feed Slot. (See "Paper Feed Slots.") →P.878
c.
Roll Feed Unit
Load rolls in this unit. You can also load sheets manually.
d.
Roll Feed Unit Cover
Open this cover to load rolls. (See "Inside the Roll Feed Unit Cover.") →P.879
e.
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") →P.890
Printer Parts
>
Printer parts
>
iPF6300S Front
8
875
