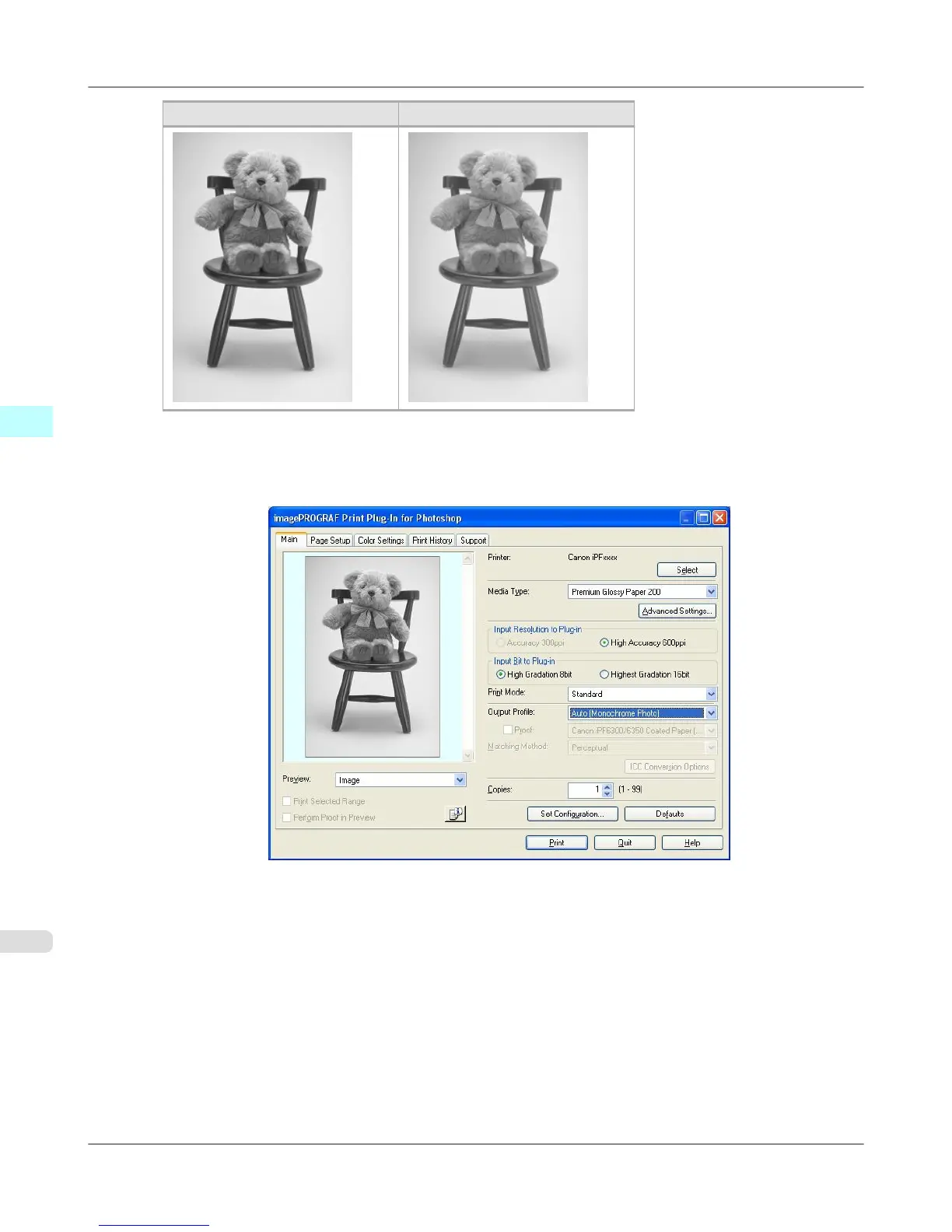

Before Application After Application

1. Open the Main sheet.

2. Select Auto (Monochrome Photo) in Output Profile.

Windows Software

Print Plug-In for Photoshop/Digital Photo Professional

Adjust the Colors while Checking the Preview (for Monochrome) iPF6300S

342
