Canon imagePROGRAF iPF6300S

To Next Page

To Previous Page

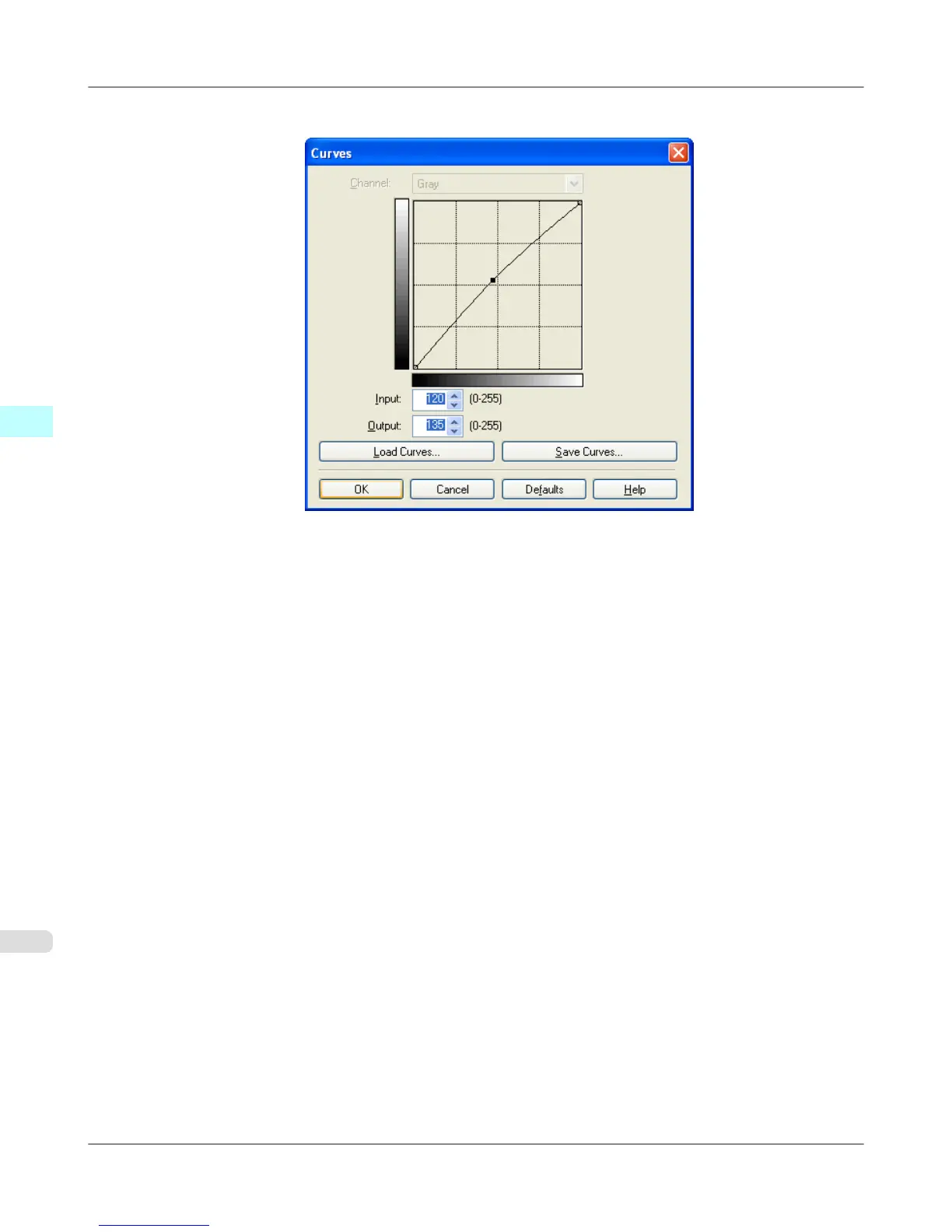

8. Enter 120 in Input and 135 in Output then click the OK button.

9. Click the Print button.

This applies the image adjustments and starts the print job.

Windows Software

Print Plug-In for Photoshop/Digital Photo Professional

Adjust the Colors while Checking the Preview (for Monochrome) iPF6300S

344
