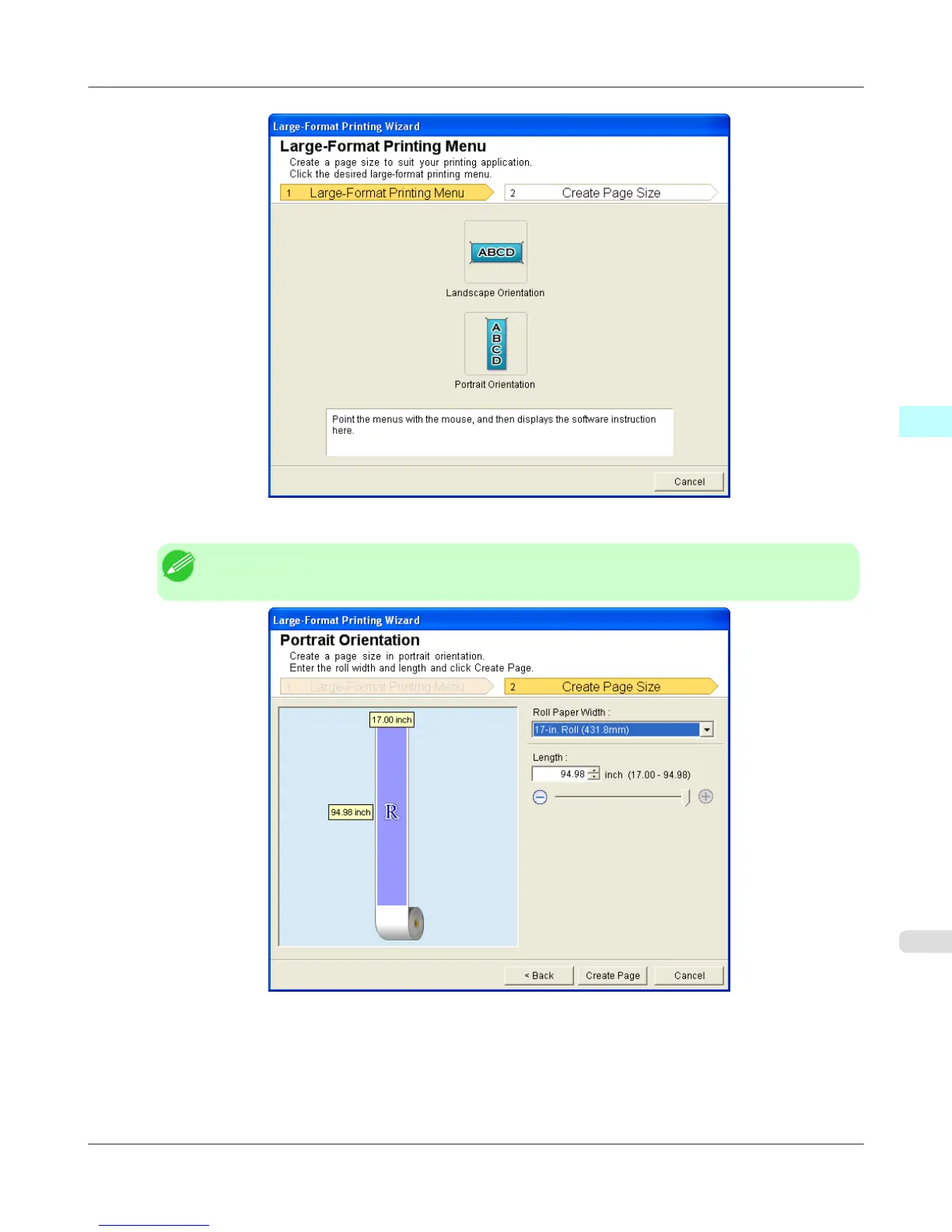

4. Click Portrait Orientation or Landscape Orientation.

Note

• The steps taken to create a Portrait Page Size will be used as an example to explain the procedure.

5. Adjust Length from the list-box or slide-bar.

6. Click the Create Page button.

Windows Software

Print Plug-In for Office

iPF6300S Portrait Orientation / Landscape Orientation (Word)

397
