Canon imagePROGRAF iPF6300S

To Next Page

To Previous Page

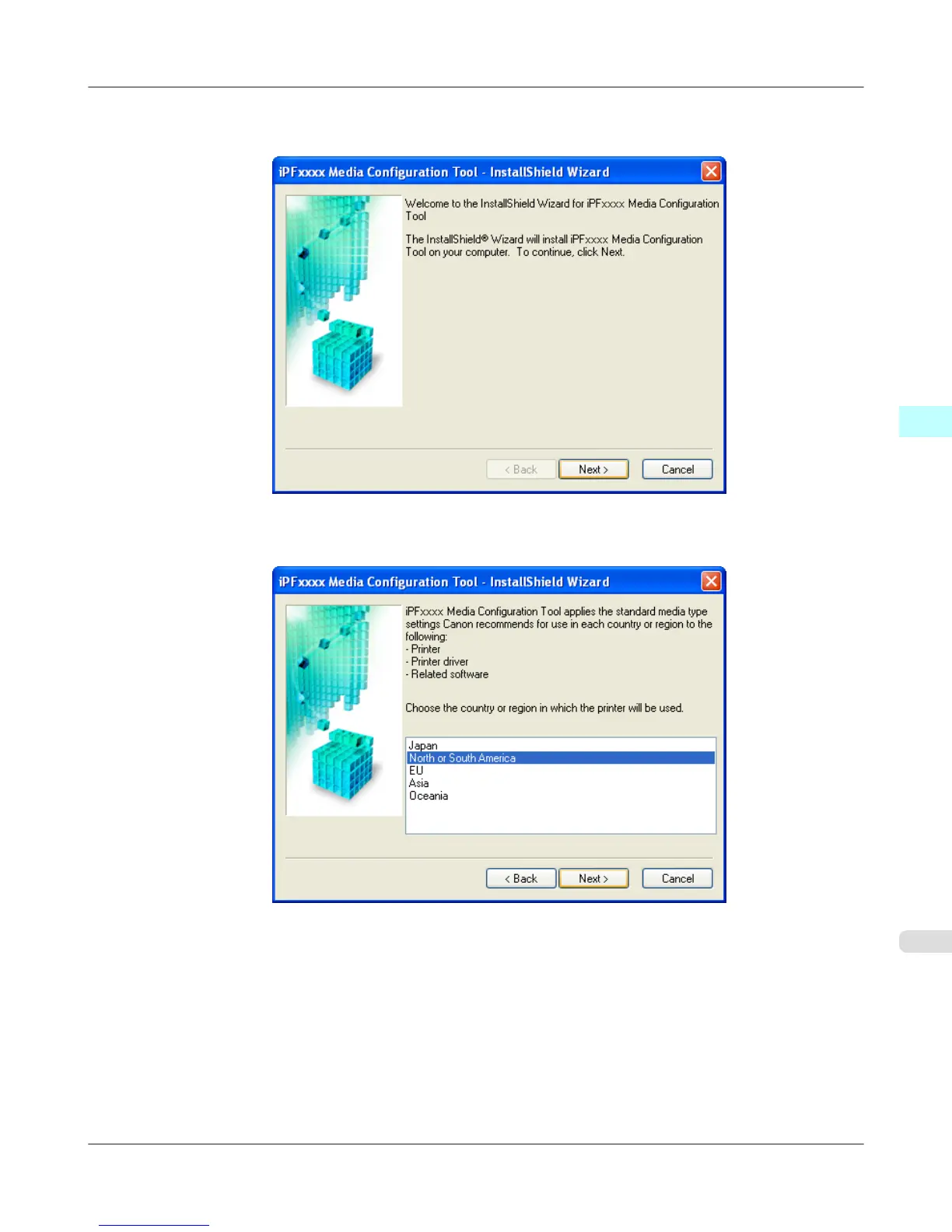

1. Start the Media Configuration Tool installer.

Click the Next button.

2. The next screen presents selections for the country or area where the printer is used.

Select a country or territory then click the Next button.

Windows Software

Media Configuration Tool

iPF6300S Installation Procedures

449
