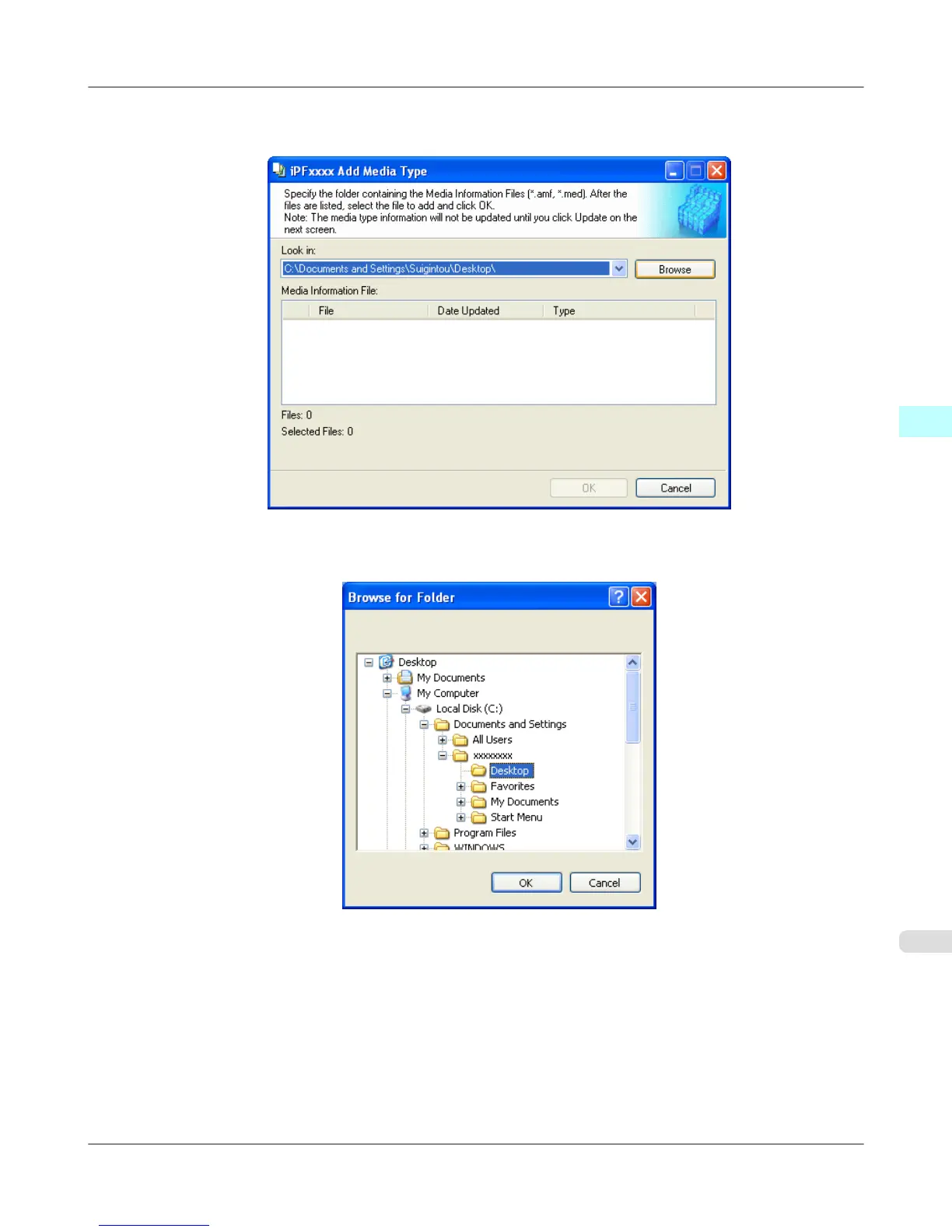

2. The Add Media Type dialog box displays.

Click the Browse button.

3. The Browse for Folder dialog box opens.

Select the folder that contains the media information files (.amf files), and then click the OK button.

Windows Software

Media Configuration Tool

iPF6300S Adding Media Types

455
